Engine
A. More than 10-hours operation base tank( optional )
B. Deep-sea key start controller (Auto start is optional)
C. Open frame and soundproof canopy
D. Heavy duty industrial diesel engine
a. Compact size
b. Suitable for long time operation
c. Low maintenance cost
Cooling system
Combination cooling water tank fitted to meet the requirement of radiation at ambient.
Alternator
A. Optional permanent magnet generator system provides constant excitation under all conditions.
B. Easy paralleling with mains or other generators, standard 2/3 pitch winding. To avoids excessive neutral currents.
C. Dynamically balanced rotors with sealed for life ball bearings and single construction
D. Class "H" insulation system.
E. Wide range of flanges and adapters and disc couplings.
F. Conforms to all leading industrial and marine standards.
Control system
A. Auto alarm system
The unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
B. Operation display.
a. Unit voltage, tri-phase load current and frequency display
b. Water temperature, oil pressure display
c. Fuel level, fuel temperature display
d. Audible and visual alarm lamps and buzzers
Supply standard collocation
A. Diesel engine with all accessories, 3 filters and electric systems.
B. Alternator
C. Steel structure
D. Fan and water tank cooling system
E. Flange connector
F. 12/24V starting motor and charge engine
G. Air cleaner, fuel cleaner, oil cleaner
H. On-board control panel
I. MCCB air conservation switch
J. 12/24V starting accumulator and battery line.
K. Set shock absorber
L. High-efficient silencer

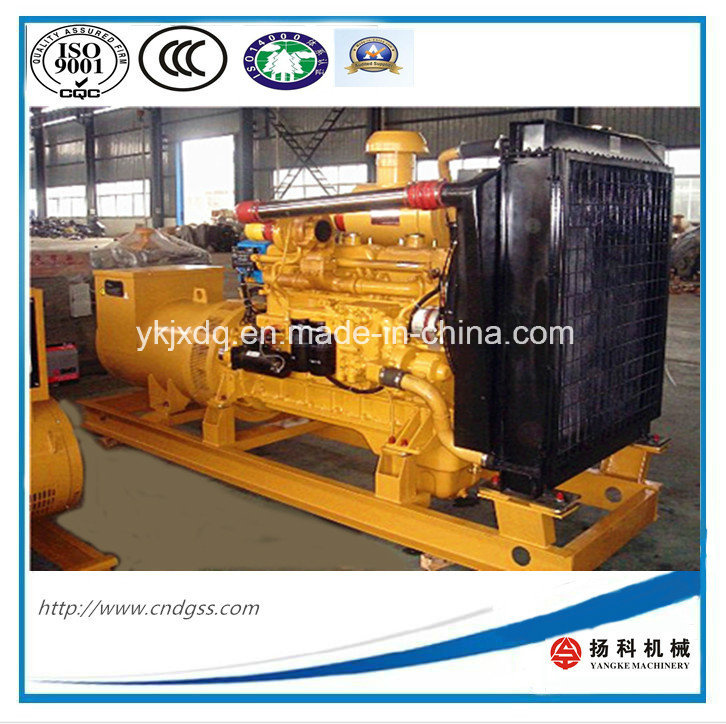

Technical data |
Genset Model |
400GF |
Genset Output Power |
400KW |
Rated Voltage |
380/220V |
Frequency |
50Hz |
Power Factor(COS) |
0.8(lagging) |
Dimension (L×W×H) (mm) |
3500×1450×2000 |
Net weight (kg) |
4800 |
Diesel Engine |
Brand |
Dongfeng(Shangchai) |
Model |
12V135BZLD |
Engine Structure |
In line12 cylinder, 4 stroke, turbocharged |
Rotating Speed |
1500r/min |
Engine Cooling Method |
Water-cooled |
Governor System |
Mechanical governor system |
Aspiration mode |
Turbo |
Starting Method |
24V DC electric starting |
Displacement(L) |
26.6 |
Bore×Stroke(mm) |
135*155 |
Compression Ratio |
17.0:1 |
Alternator |
Brand |
Kaijieli(China-French joint venture Leory Somer technology) |
Model |
TWG SERVICE |
Excite Type |
Brushless ,Self-exciting, AVR automatic voltage regulating |
Connecting Type |
3 Phase and 4 Wires |
Steady Frequency Change |
0~5% |
No load voltage |
≥95%~105% |
Steady voltage |
≤±1% |
Insulation degree |
H degree |
Enclosure degree |
IP21 |
The components of the genset |
(1) Diesel engine; (2) Generator; (3) Control panel |
The Accessories |
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data . |
Control panel |
The Control panel is Ordinary integrative type Control panel, with the display of voltage,current, frequency, water temperature, oil pressure. |
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
