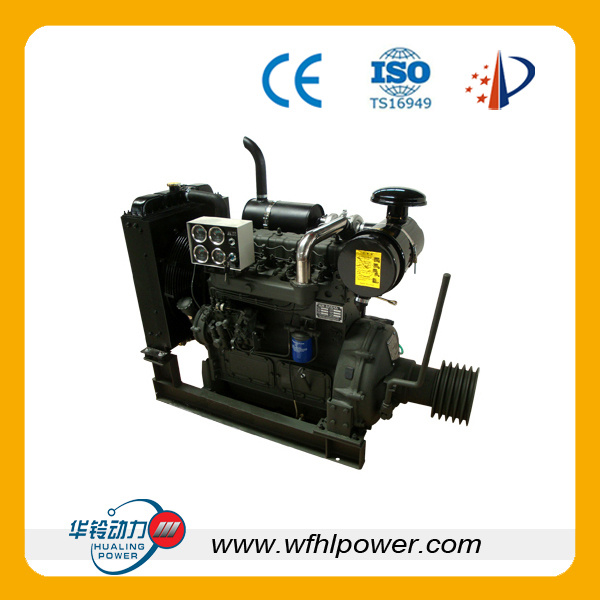

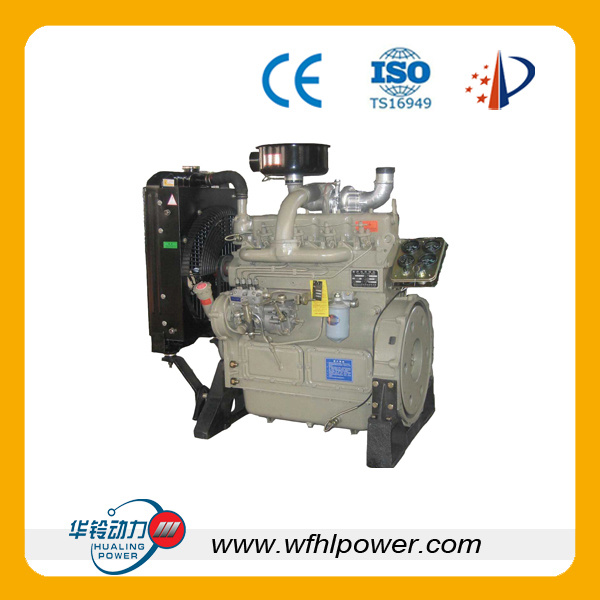

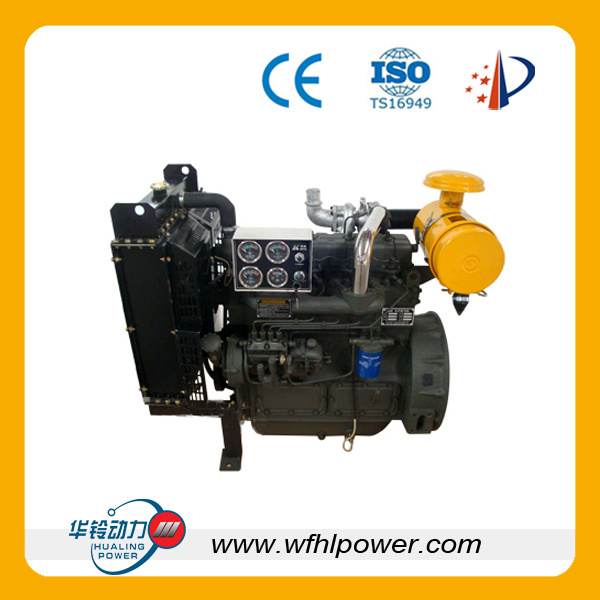

This kind of engine can be used for the diesel Generators.
If you have the demand, please contact with us.
We can supply the best competition with the best price.
|
TECHNICAL DATA |
|
DIESEL ENGINE MODEL |
R4105ZD1 |
R6105ZD1 |
R6105ZLD1 |
|
Engine Characters |
water-cooled,in line,4 stokes,direct injection ,wet cylinder liner |
|
Constant Output (kW/kVA) |
56/70 |
84/105 |
100/125 |
|
Standby Output (kW/kVA) |
61.6/77 |
92.4/115.5 |
110/137.5 |
|
Aspiration |
turbocharged |
turbocharged |
turbocharged |
|
Bore(mm) X Stroke(mm) |
105x125 |
105X125 |
105X125 |
|
Cubic Capacity (Liters) |
4.33 |
6.49 |
6.49 |
|
Piston Speed (m/s) |
6.25 |
6.25 |
6.25 |
|
Compression Ratio |
16:1 |
16:1 |
16:1 |
|
Machine Governor |
≤5% |
≤5% |
≤5% |
|
Electronic Governor |
≤1% |
≤1% |
≤1% |
|
Acostic Pressure(dBA) |
≤114 |
≤114 |
≤114 |
|
Exhaust Temperature |
≤600 |
≤600 |
≤600 |
|
Lube Capacity |
12L |
16L |
16L |
|
Cooling System Volume |
16L |
26L |
28L |
|
Area of Heat Dissipationm2 |
18 |
25 |
29 |
|
Combustion Air Flow |
5.11m3/min |
6.35m3/min |
7.86m3/min |
|
Exhaust Gas Flow |
13.83m3/min |
17.1m3/min |
17.92m3/min |
|
Rating Fuel Consumption (L/h) |
14 |
21 |
24.53 |
|
ALTERNATOR MODEL |
TFW2-50 |
TFW2-75 |
TFW2-90 |
|
Continuous Output (kW/kVA) |
50/62.5 |
75/93.8 |
90/112.5 |
|
Power Efficiency |
87% |
88.5% |
90% |
|
Voltage Regulation |
≤±3% |
|
Excitation Type |
Brushless |
Brushless |
Brushless |
|
Insulation Class |
H |
H |
H |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
