Generator Manufacturers and Factories

Home Generator Products 100KW Gas Generator

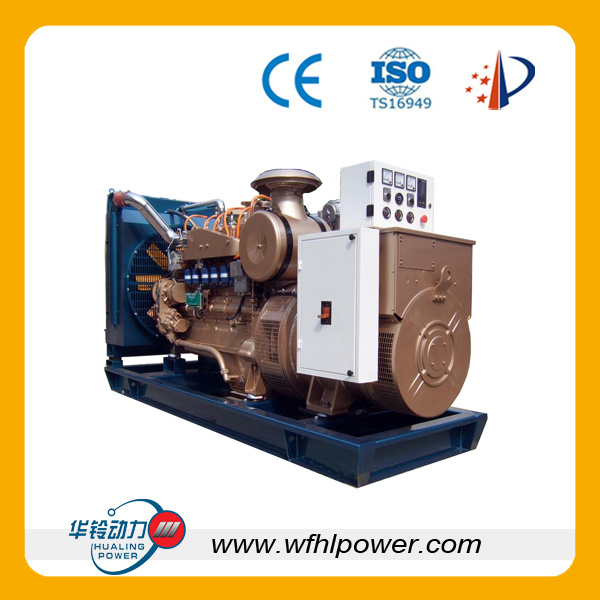

100KW Gas Generator

100KW Gas Generator
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
Introduction Controller Panel
About Redesigning DEEP SEA controller or demostic product
The generator based on natural gas energy Digital control; Deagnostic function
It is an electric equipment that is transmition energy Fault indication; MOBUS protocol; Panallel
By thermo-motive. There are coolant; Lubricating; Data be output by wire; Communication
Fuel suplied; Controller system. It can supply electric compatible; Long-distance controlled
Power out. And can be Low/High pressure gas fuel Start by hand or automatic
Characteristic of Natural Gas Engine ECU Natural Gas Control System
Electric controll ignation for engine combustion EFI management system for engine
Electric controll turbo-charger Lean burn system Sequential multi-point ignition system
Air to air system Electric controller for speed Lean burn and multi-spark system
Electric speed controller A veriaty of fuel tracking compensated system
ECU controller panel Multi-spark and High energy
ECU actuator Hot wire for spark plug. It has shield
The management system for natural gas has
Alternator and Chassis detecting system
Synchronization alternator; Adjustment by automatic The spark plug is special that is for natural gas
Brushless/permanent; Parallel by automatic
Monocoque-type chassis can be all part of generator
The engine be connected by flange with alternator
Rubber seal for insulationContinuous Operation type generator
Data of Natural Gas Generator
HL100GF Natural Gas Generator   Data of Technology
Emission standard mg/m³ EII
Intake Air Temperature Deg C <45
Before Air to Air Deg C 82-87
After Air to Air Deg C 35-42
Generator Data
Rated power factor 0.8 Operation Continous/Kw 100
Full power Kw 276
Electric Efficiency % 36.2
Thermal Efficiency % 87.9
Engine Data
Fire order   1-5-3-6-2-4
Over speed rpm 2160
Over RPM rpm 2160
Oil L 16.4
Water L 21.9
Back pressure kpa 10.2
Comsumption
Natural gas(based on 36Mj/cube) m3/kw•h <0.3
Oil g/kWh <1.5
Thermal Radiation
water radiator and oil radiator Kw 18
Exhaust pipe(based on 120 degree) Kw 5
Engine Kw 8
Alternator Kw 6
Coolant system
Water temperature Deg C 95
Oil temperature Deg C <120
Exhaust pipe(based on 120 degree) Kw 100
Exhaust pipe System
Before turbo charger Deg C 660±25
Ratio of exhaust flow m³/h 900
Ratio of Fan m³/s 5.8
Noice Level
1 meter fay db(A) 100
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type: AC Three Phase
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.

The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.

We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.

Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
