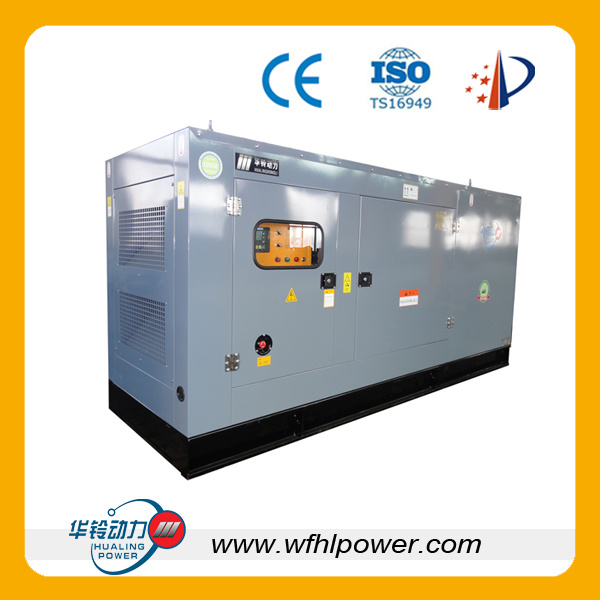

100kw biogas electric generator
1.Specifications
Adopt CUMMINS gas engine and Marathon alternator
Automatic malfunction monitor, automatic shutdown protection.
Type of fuel: Natural Gas,LPG,Bio Gas,
12 years' experiences
2.Advantages:
1) Adopting advanced Hall ignition sensor and Highly capable ignition system, the engine ignition will be more reliable, and easier to start.
2) Main control parts are all the most advanced imported ones, to make more stable and reliable running.
3) Several gensets can be parallel connection or parallel net, which can increase the total power range. In addition,the gensets can take maintenance in different times,which will make little influence to the normal performance of gensets.
4) Low gas pressure is acceptable, no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .
5) Self-contained parts of gensets needs few accessories
6) Economical and low-cost running.
7) The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.
8) The installation of high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets.
| Generator set parameter: | |
| Rate output | 100KW (125KVA) |
| Basic electric parameter | 50Hz, 1500rpm, 3Phase 4 wire, 400V |
| Engine Protection System | Stop engine automatically when it is in high water temperature, low oil pressure and over-speed |
| Noise Level in 7M (DB) | ≤90 |
| Fuel Consumption | 33 m3/h |
| Cubic Capacity | 9.7 L |
| Gross Weight (KG) | 2900 |
| Dimension (MM) | 3600X1500X2200 |
| Engine parameter: | |
| Engine | Four stroke, inline 6-cylinder, Water cooling, Supercharge,Inter cooling |
| Make/Model | HL6126NG-D |
| Rate power | 120KW/1500Rpm |
| Compression ratio | 11.5:1 |
| Rated speed | 3600r/min |
| Idling speed | 700±50 r/min |
| Displacement | 9.7 L |
| Ignition model | EUC electronically controlled ignition |
| Alternator parameter: | |
| Make/Model | MP-100-4 |
| Output | 100KW/125KVA |
| Voltage | 400V |
| Type of bearing/Brush | Single/Brushless Self excitation |
| Prod Model: | HL100GF |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Period: | 1500 Hours or One Year Which Comes Fir |
| Optional Function: | ATS, CHP |
| Gas Source: | Natural Gas |
