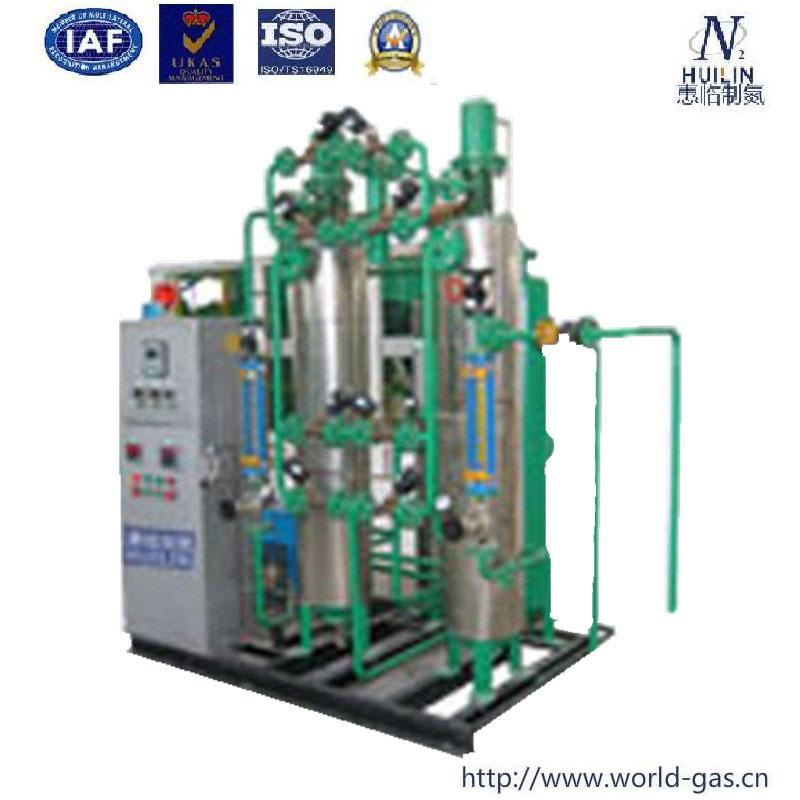

Purifying Nitrogen Generator1)high purity
2)exellent energy-saving
3)smoothly running, long-life
4)automatic operating
5)certificate: ISO9001: 2008
HUILIN nitrogen equipment has 4 advantages in PSA nitorgen equipment field, manufacturing energy-saving nitrogen equipment.As follow:
1. High purity.
The 99.9995% nitrogen gas is produced in one-time procedure without purification devices.
HUILIN SMT Nitrogen Generator produces the high-purity N2 preponderate over 99.9995% in one-time, which depends on the professional molecular sieve and special high-purity technics flow.
2. Excellent energy-saving
Unique distribution of gas flow, advanced energy-saving technology, excellent molecular sieve make HUILIN SMT Nitrogen Generator energy-saving achieve 10~20% than other do.
3. Steady-going, long life-span
Unique clamping cylinder technology effectively extending the life of molecular sieve.
4. High degree of automation
The automatic control technology could switch machines with one key, and have remote and centralized operation with nobody control.
With the carboilc catalyst, carbon combust with little O2 in the N2 to remove O2. The chemical reaction is the formula of C+O2CO2. And then drying equipment removed H2O, CO2, dust and other impurites to get high-purity nitrogen by adsorption device.
CharacteristicsThe equipment produces N2 with security and stability. The purity of N2 could be maintained more than 99.9995% for a long time.
Towers switch automatically, repair or replacement of dehydration desiccant could be kept without halting production
Control drying tower automatically, adsorption devices can be witched by computer at the setting time.
Universal nitrogen generator usage
. Chemical Manufacturing
. Lase Cutting
. Tire Filling
. Pharmaceutical
. Marine
. Electronics
. Food Processing & Packaging
. Plastic
. Heat Treatment
. Others
| Model Type | N2 Output | Consumption Flow(Nm3/hr) | Dew Point (ºC) |
| WG-CPURE-20 | 20 | 24 |
≤-60ºC
|
| WG-CPURE-60 | 60 | 66 |
| WG-CPURE-80 | 80 | 88 |
| WG-CPURE-100 | 100 | 110 |
| WG-CPURE-150 | 150 | 165 |
| WG-CPURE-200 | 200 | 220 |
| WG-CPURE-300 | 300 | 330 |
| WG-CPURE-400 | 400 | 440 |
| WG-CPURE-500 | 500 | 550 |
| WG-CPURE-600 | 600 | 660 |
| WG-CPURE-800 | 800 | 880 |
| WG-CPURE-1000 | 1000 | 1100 |

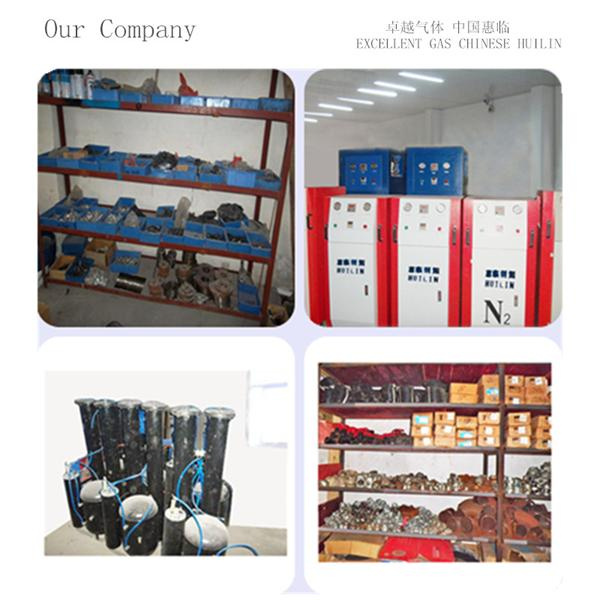

Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.
In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.
Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
