Home Generator Products High Purity Oxygen/Nitrogen Generator for Industry/Chemical

High Purity Oxygen/Nitrogen Generator for Industry/Chemical

High Purity Oxygen/Nitrogen Generator for Industry/Chemical
Price: US $ 1000-500000/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Nitrogen Generator
1)high purity
2)exellent energy-saving
3)smoothly running,long-life
4)automatic operating
5)certificate:ISO9001:2008

Principles

N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2(0.31 Å)is bigger than the quadrupole of O2 (0.10 Å), the adsorption capacity by molecular sieve to N2 is stronger than O2.  When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

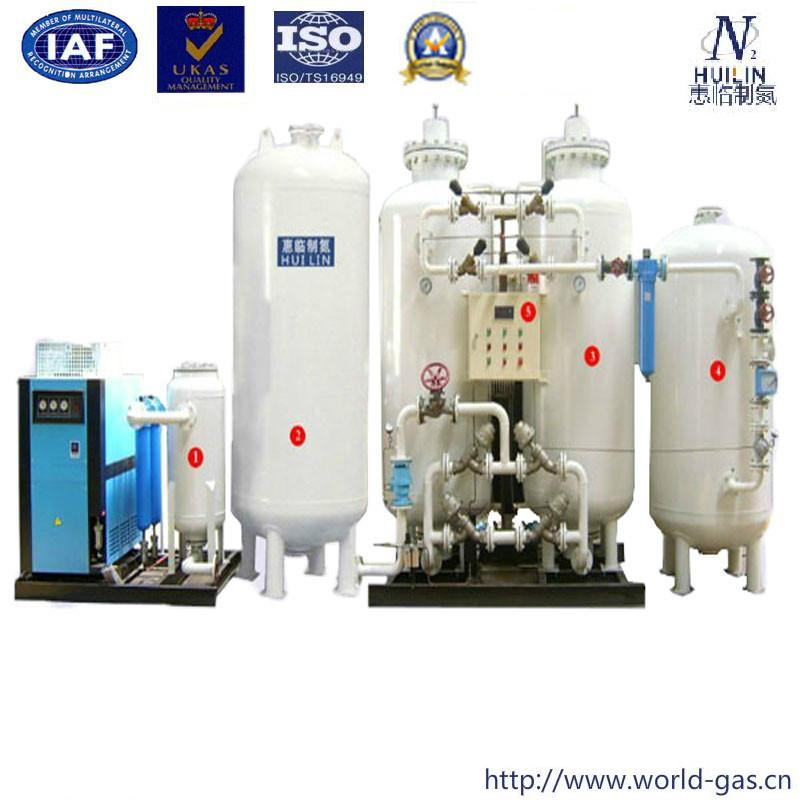

 The main part of O2 generator is two towers filled with molecular sieve , when the compressed air get into adsorption tower, the N2, is absorbed by molecular sieve, N2 is produced from the export terminal . When one tower produces N2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to output N2 continuously.

Character of nitrogen generator

.High purity, and the purity of N2 could be regulated between 95% to 99.999% according as user's need;
.High efficiency, low energy consumption of compressed air;
.Standard models, nitrogen generator could be parallel for additional nitrogen output;
.Low dew point, dew point of product ≤ -40 °C to ensure the quality of welding;
.Available frame, appearance clean and easy cleaning management to meet the high cleanliness requirement of electronics industry.

Universal nitrogen generator usage

. Chemical Manufacturing

. Lase Cutting

. Tire Filling

. Pharmaceutical

. Marine

. Electronics

. Food Processing & Packaging

. Plastic

. Heat Treatment

. Others

Why Choose HUILIN Nitrogen Generator?

1.Convenient to install

2.More economic than other nitrogen supplying methods

3.The macaronis design realizes the automatic running

4. Peak value / the security system of the trouble

5.The high-quality components and parts are the reliable assurance of steady operation

6. Nitrogen content shows in succession, equipping the transfinite automatic alarm system

7.The high-quality carbon molecular sieve

8.The advanced loading technology guarantees the service life of equipments

9.The automatic alarm system for sinking of the carbon molecule sieve

10.The unqualified nitrogen automatic emptying system

11.Differential pressure indication, concentrating blow down system

12.The unique inter-circle switching techniques' of system





Model Type

Purity (%)

Production Flow (Nm3/h)

Pressure (MPa)

Dew Point

WG-N2STD 97

97%

5-3000

(Input Pressure
-0.2)


≤-45 o C

WG-N2STD 98

98%

4-2500

WG-N2STD 99

99%

3-2000

WG-N2STD 295

99.5%

2-1800

WG-N2STD 39

99.9%

1.5-1300

WG-N2STD 49

99.99%

1-800

WG-N2STD 495

99.995%

1-750

WG-N2STD 59

99.999%

0.5-500

WG-N2STD 595

99.9995%

0.5-400

Prod Model: HL-WG- STD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
N2 Purity: 95~99.9995%
N2 Capacity: 3~3000 Nm3/H
N2 Pressure: 0.1~1.0mpa
Dew Point: ≤-40
Gas Source: Gas
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.

In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.

Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
