Home Generator Products High Purity SMT Oxygen/Nitrogen Generator Machine (SMT49-20)

High Purity SMT Oxygen/Nitrogen Generator Machine (SMT49-20)

High Purity SMT Oxygen/Nitrogen Generator Machine (SMT49-20)
Price: US $ 5000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
High Purity
Excellent Energy-Saving
Steady-going, Long life-span
Highly Automated Operation

Principles

N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2 is bigger than the quadrupole of O2, the adsorption capacity by molecular sieve to N2 is stronger than O2.When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.

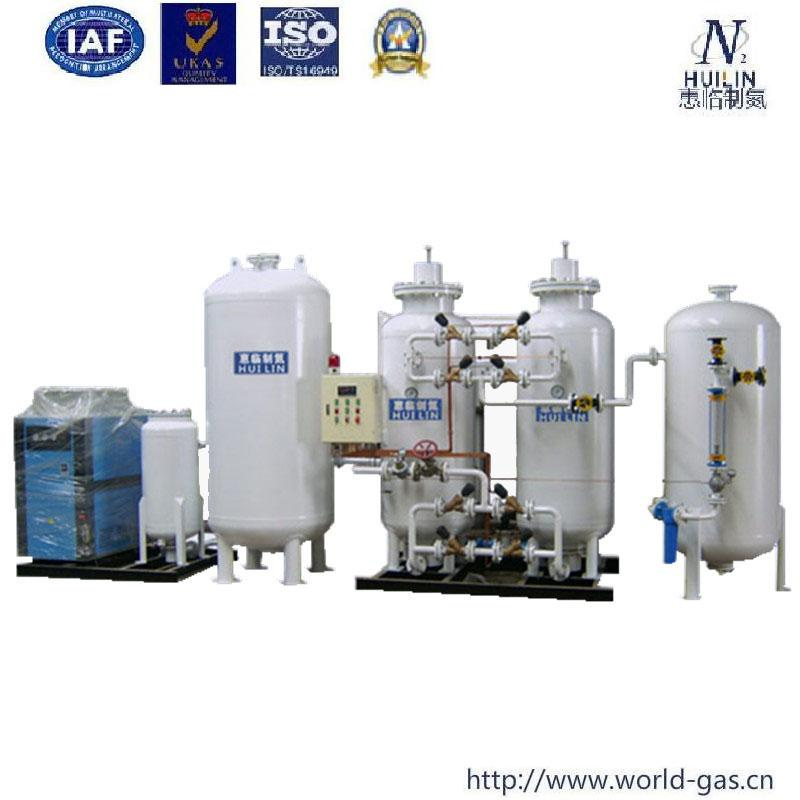

The main part of O2 generator is two towers filled with molecular sieve ,when the compressed air get into adsorption tower, the N2 is absorbed by molecular sieve,O2 is produced from the export terminal .When one tower produces O2,another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve.Two towers alternate adsorption and regeneration to output O2 continuously.

Characteristics

1. High purity, and the purity of N2 could be regulated between 95% to 99.999% according as user's need;
2. High efficiency, low energy consumption of compressed air;
3. Standard models, nitrogen generator could be parallel for additional nitrogen output;
4. Low dew point, dew point of product ≤ -40 ° C to ensure the quality of welding;
5. Available frame, appearance clean and easy cleaning management to meet the high cleanliness requirement of electronics industry.

Competitive Advantage

1.Reliability of operations second to none
2.Customized design
3.Lower cost
4.Excellent after sales services
5.High efficiency operation
6.Automated unattended operation
7.Remote monitoring and control available
8.Minimal space requirements
9.Long-term commitment to R&D
10.Your own independent on-site supply of nitrogen
11.Proprietary CMS with long life time and excellent performance
12.Cabinet, skidded, containerized on-site nitrogen generator systems available

Universal nitrogen generator usage

. Chemical Manufacturing
. Lase Cutting
. Tire Filling
. Pharmaceutical
. Marine
. Electronics
. Food Processing & Packaging
. Plastic
. Heat Treatment
. Others

Model

N2 Purity (%)N2 Output (Nm3/hr)N2 Pressure

Dew Point
WG-STD97975-3000Input Pressure:
-0.2Mpa

≤-45
WG-STD98984-2500
WG-STD99993-2100
 WG-STD29599.52-1800
WG-STD3999.91.5-1300
WG-STD4999.991-800
WG-STD49599.9951-750
WG-STD5999.9990.5-500
WG-STD59599.99950.5-400


Prod Model: WG-STD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
N2 Purity: 99.99~99.9995%
N2 Capacity: 20~1000 Nm3/H
N2 Pressure: 0.1~0.6MPa
Dew Point: D-40
Gas Source: Gas
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.

In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.

Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
