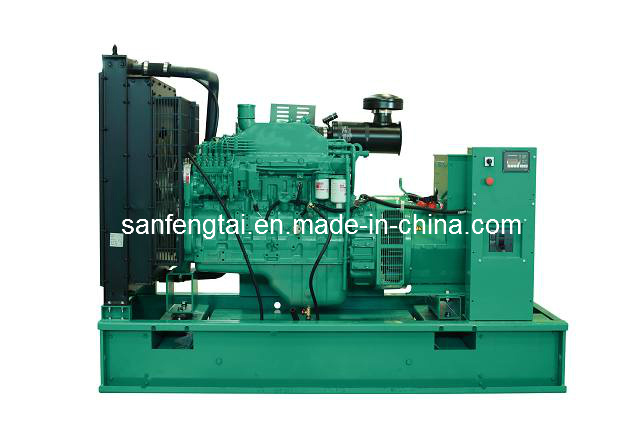

Cummins diesel generator set
CUMMINS Series Power Diesel Generator set/Silent Diesel Generator/Soundproof Generator/Soundproof Diesel genset/Power Generator/Gensets, with compacted structure and best configuration.
Specifications:
. CE Certificate
. ISO9001: 2008
. High quality with competitive price
. Global joint warranty
Scope of genset:
1. Brand new Cummins engine
2. Brand new Leroy Somer AC brushless alternator IP23
3. Rating: 380V, 3pH, 50Hz, 1500Rpm, 0.8PF, IP23
4. Radiator: 40° C. Ambient temperature mounted on skid
5. Control Panel
6. Circuit breaker (Under 200KW generator set)
7. Primary muffler, Standard tools kit
8. Rubber isolator for engine, alternator and control panel
9. Battery, Battery cable, Battery tray and necessary accessaries
10. Base fuel tank for ten hours running (Under 200KW generator set)
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Our service quality assurance:
1) Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2) Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3) After sale maintenance service: We create files for end user and provide them follow-up service.
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Weichai power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
Our factory:
|
Genset Model |
GFCK-XZ1000 |
|
SET |
Genset model |
GFCK-XZ1000 |
|
Output power |
1000KW |
|
Power factor |
0.8(lagging) |
|
Output voltage |
400V/230V |
|
Output current |
1890A |
|
Rrted Freguency |
50hz |
|
Rated Rotating speed |
1500rpm |
|
The grade of fuel |
(standard)0#light diesel (normal) |
|
Dimension |
5400×2150×2550 (L*W*H mm) |
|
Genset weight |
9800kg |
|
Voltage Regulation steady state(%) |
≤±1 |
|
Voltage fluctuation rate(%) |
≤±0.5 |
|
Voltage regulation transient state(%) |
+20~-15 |
|
Voltage stability time(s) |
≤1 |
|
Reguency regulation steady state(%) |
≤±1 |
|
Requency fluctuation rate(%) |
≤±0.5 |
|
Requency regulation transient state (%) |
+10~-7 |
|
Reguency stability time(s) |
≤3 |
|
Fuel consumption at 100% load |
≤205g/kw*h |
|
Nose(LP7m) |
105dB(A) |
|
ENGINE |
Place of origin/brand |
CCEC CUMMINS |
|
Diesel engine model |
KTA50-G3 |
|
Number of cylinders |
12/L model |
|
Bore*stroke |
159*159mm |
|
Compression ratio |
13.9:1 |
|
Starting method |
DC24V Electrical starting |
|
Cooling system |
Closed water circulation cooling |
|
Oil way |
Direct injection |
|
Speed governors method |
Electronic speed controlling |
|
Intake way |
Turbocharge |
|
Overload capacity |
110% |
|
Rotating speed |
1500rpm |
|
ALTERNATOR |
Place of origin/brand |
JiangYue |
|
Alternator model |
W404H |
|
Rated power |
1000Kw |
|
Rated voltage |
400V/230V |
|
Insulation class |
H class |
|
Protection class |
IP22 |
|
Connecting type |
3phase4wires Y type |
|
Accommodation type |
AVR |
|
Output frequency |
50hz |
|
Output factor |
0.8(lagging) |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
