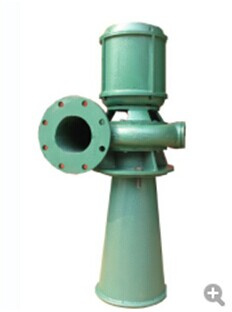

Pressure Volute Axial Flow Hydro Turbine System
| Price: |
US $ 1500-50000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
There are two types of axial flow turbine generator: fixed blade propeller turbine and Kaplan turbine. Fixed Blade Turbine GeneratorBlades of fixed blade propeller turbine are non-adjustable, but its structure is simple. When the water flow and power output changes, its efficiency also changes greatly and the average operation efficiency is low. Therefore, fixed blade propeller turbine is suitable for hydro power station whose required power output is not big and whose water flow does not change very much. It requires 3-30 m water head to operate.. Kaplan Turbine GeneratorKaplan turbine has a blade rotating structure, called guide vanes or wicket gates, inside the turbine runner, which can rotate comparatively to the runner. According to different load and water flow, the blades cooperate with guide vanes to form a double adjustment, and obtain higher hydro efficiency and stable operation and expand the scope of operation efficiency. Therefore, it is suitable for water flow which changes greatly, especially for power station with great power output difference. It requires 3-30 m to operate and is widely used in electric power station with low water flow but great capacity. | Style | Water head
(m) | Water flow
(m3/s) | Power
(kW) | speed
(r/min) | Pressure pipe diameter
(mm) | Note |
| GL760-LM-12 | 5-10 | 0.025-0.038 | 0.6 | 500-1500 | 160 | Permanent magnet |
| GL760-LM-15 | 5-10 | .0.03-0.04 | 1 | 500-1500 | 160 | Permanent magnet |
| GL760-LM-15 | 5-10 | 0.04-0.045 | 1.5 | 500-1500 | 160 | Permanent magnet |
| GL760-LM-(18-20) | 5-10 | 0.09-0.11 | 2 | 500-1500 | 160 | Permanent magnet |
| GL760-LM-(18-20) | 5-10 | 0.09-0.014 | 3 | 500-1500 | 160 | Permanent magnet |
| GL760-LM-20 | 5-10 | 0.0116-0.156 | 5 | 500-1500 | 250 | Permanent magnet |
| GL760-LM-20 | 5-10 | 0.0116-0.156 | 5 | 1500 | 250 | Excitation |
| GL760-LM-20 | 5-10 | 0.0116-0.156 | 5 | 1000 | 250 | Excitation |
| Prod Model: |
GL-LM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Turbine Type: |
Volute Axial Flow |
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
