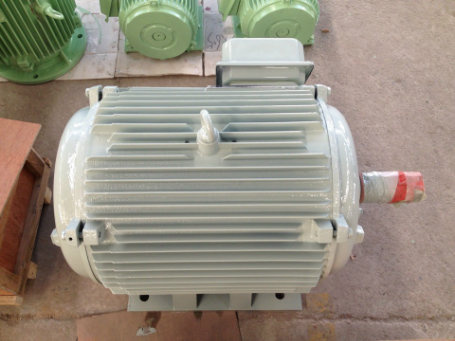

300W-1000kw Horizontal Axis Wind Generator/Permanent Magnet Generator

Price:	US $ 500-50000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Willgain Power Industry Co., Limited

Showroom Product Company Profile

We offer various kinds of permanent magnetic generator from 0.3KW-1500KW(vertical and horizontal), please contact us for more detail informations.

Features of permanent magnet generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime

Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
12 kw	400V	250rpm	24	50Hz	460Nm	16.9A	93.8%	260kg
24 kw	400V	500rpm	12	50Hz	460Nm	34A	93.8%	260kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
15 kw	400V	214rpm	28	50Hz	670Nm	21A	93.8%	320kg
30 kw	400V	428rpm	14	50Hz	670Nm	42A	93.8%	320kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
20 kw	400V	187.5rpm	32	50Hz	1020Nm	29A	93.8%	420kg
40 kw	400V	375rpm	16	50Hz	1020Nm	58A	93.8%	420kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
30 kw	400V	187.5rpm	32	50Hz	1530Nm	43A	93.8%	720kg
60 kw	400V	375rpm	16	50Hz	1530Nm	86A	93.8%	720kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
35 kw	400V	125rpm	48	50Hz	2700Nm	51A	93.8%	1260kg
70 kw	400V	250rpm	24	50Hz	2700Nm	102A	93.8%	1260kg
105 kw	400V	375rpm	16	50Hz	2700Nm	153A	93.8%	1260kg
140 kw	400V	500rpm	12	50Hz	2700Nm	204A	93.8%	1260kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
80 kw	400V	125rpm	48	50Hz	6120Nm	116A	93.8%	1680kg
160 kw	400V	250rpm	24	50Hz	6120Nm	232A	93.8%	1680kg
200 kw	400V	375rpm	16	50Hz	6120Nm	288A	93.8%	1680kg
320 kw	400V	500rpm	12	50Hz	6120Nm	461A	93.8%	1680kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
100 kw	400V	125rpm	48	50Hz	7650Nm	144A	93.8%	2800kg
200 kw	400V	250rpm	24	50Hz	7650Nm	288A	93.8%	2800kg
300 kw	400V	375rpm	16	50Hz	7650Nm	432A	93.8%	2800kg
400 kw	400V	500rpm	12	50Hz	7650Nm	576A	93.8%	2800kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
150 kw	400V	125rpm	48	50Hz	11500Nm	216A	93.8%	3900kg
300 kw	400V	250rpm	24	50Hz	11500Nm	432A	93.8%	3900kg
450 kw	400V	375rpm	16	50Hz	11500Nm	648A	93.8%	3900kg
600 kw	400V	500rpm	12	50Hz	11500Nm	864A	93.8%	3900kg
Power	AC voltage	speed	poles	frequency	Rated torque	current	efficiency	weight
200 kw	400V	125rpm	42	50Hz	15300Nm	288A	93.8%	5200kg
600 kw	400V	375rpm	14	50Hz	15300Nm	864A	93.8%	5200kg

Prod Model:	YGDL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Axis Type:	Horizontal
Rotating Shaft:	Horizontal
Stress Way Of Blade:	Resistance
Number Of Blade:	Three Blade
Phase:	3 Phase
Power:	300W-1000kw

Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
