Home Generator Products Volute Axial Flow Francis Water Turbine Generator

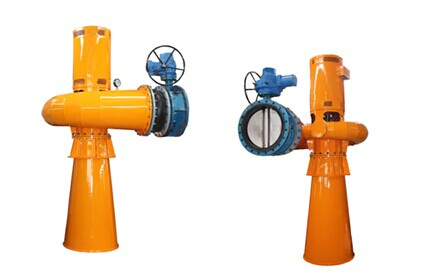

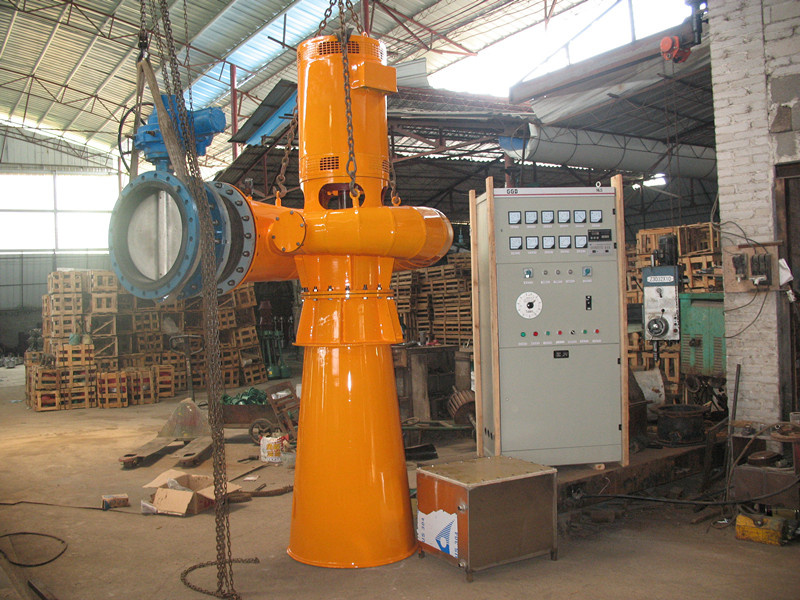

Volute Axial Flow Francis Water Turbine Generator

Volute Axial Flow Francis Water Turbine Generator
Price: US $ 500-50000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Money Gram,Western Union
It is applicable under low head conditions from 1.5 meters to 18meters with large flow. This new type of machine has solved the problem that ordinary axial flow generator has long main shaft and the bearings at the impeller must be immersed into water and thus cause easy damage; The open channel of the volute chamber can not utilize the water head pressure; Work amount is large, installation period is long and cost is high; Fabrication of the volute chamber and the tail pipe is hard to reach requirements of standards etc. Volute axial flow machine is a consummate type and its efficiency and endurance are several times higher than that of ordinary axial machines.

1. In case conditions of water source are limited, low rotation speed, such as 750 rpm and 500 rpm, are to be selected and thus cost will be increased.
2. Special requirements: For 60Hz frequency and 110V voltage machines, custom manufacture is needed.
3. For batch finalization of 10 KW machines, they can be designed and produced according to conditions of water sources of customers (water head and flow).
Modelpower(K W)fall head(M)flow(M 3 /s)speed(r/m)driveway
Volute axial flow water turbine- generator
306-180.728-0.2431000/1500direct
407-180.81-0.3151000/1500direct
557-201.07-0.3741000/1500direct
758-201.24-0.4971000/1500direct
1008-201.66-0.6621000/1500direct


Prod Model: VAF
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbine Type: Francis
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
