Name: 240-280watt photovoltaic module
Model: SNM-P240 240Wp
SNM-P240 240Wp SNM-P245 245Wp
SNM-P250 250Wp SNM-P255 255Wp
SNM-P260 260Wp SNM-P265 265Wp
SNM-P270 270Wp SNM-P275 275Wp
SNM-P280 280Wp

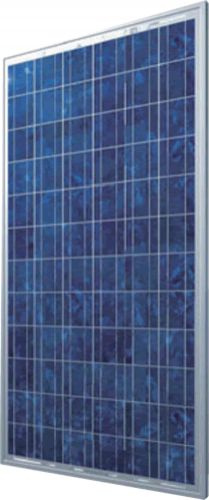

240-280watt photovoltaic module
POLY -CRY STALLINE SOLAR PANEL
EFFICIENCY
Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability
MATERIALS
Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation
The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions
Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition
New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use
BENEFITS
Manufactured in an ISO 9001: 2000 certified plan
High efficiency, high safety, high reliability
Output power tolerance of +/-3% 25-year limited warranty on power output, 5-yea limited warranty on materials and workmanship
NOTE
This publication summarizes product warranty and specifications, whichare subject to change without notice.
SPECIFICATIONS
Model type SNM-P280 SNM-P275 SNM-P270 SNM-P265 SNM-P260 SNM-P255 SNM-P250 SNM-P245 SNM-P240
Peak power(Pmax) 280W 275W 270W 265W 260W 255W 250W 245W 240W
Cell type PolyCrystalline Silicon, 156mm x 156mm
Number of
Cells 72 cells in series
Weight 23.0 kg (50.7 lbs)
Dimensions 1956× 992× 50 mm (77× 39.1× 1.97 inch)
Maximum power
Voltage (Vmp) 36.72V 36.72V 36.40V 36.40V 36.00V 35.20V 35.20V 34.95V 34.95V
Maximum power
Current (Imp) 7.63A 7.49A 7.42A 7.28A 7.23A 7.23A 7.12A 7.01A 6.88A
Open circuit
Voltage (Voc) 43.78V 43.78V 43.63V 43.63V 43.49V 43.88V 43.88V 43.85V 43.85V
Short circuit
Current (Isc) 7.98A 7.96A 7.90A 7.90A 7.79A 7.85A 7.81A 7.70A 7.63A
Maximum system
Voltage DC 1000V
Temp. Coeff.
Of Isc (TK Isc) 0.065 Temp. Coeff.
Of Voc (TK Voc) -0.346 Temp. Coeff. Of
Pmax (TK Pmax) -0.488 %/Normal Operating
Cell Temperature 45.3± 2
Note: The specifications are obtained under the Standard Test Conditions (STCs): 1000 W/m2 solar irradiance, 1.5 Air Mass, and cell temperature of 25
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
