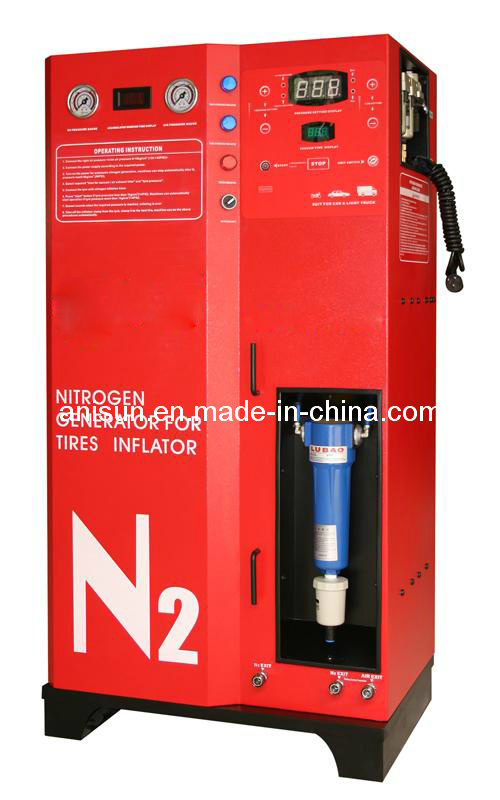

Nitrogen Generator (ANS-1670A/EN)
Features:
1. Full automatic
2. Larger LED digital display for pressure, time & nitrogen purity.
3. Equipped with high precision water/oil filter & separator.
4. Equipped with full automatic water/oil filter & separator, it can drain the water out automatically at any time.
5. Double-level filtration help prolong the lifetime of main part inside.
6. Equipped with indepandent backup system for computer.
|
Model No.: |
ANS-1670A/EN |
|
Product Name |
Nitrogen Generator & Inflator Machine |
|
Suit For: |
Car & Light Truck |
|
Power Supply: |
110/220V± 10%, 50/60Hz |
|
Power Consumption: |
30W |
|
Nitrogen Generated: |
PSA Technology |
|
Nitrogen Purity: |
95~99% |
|
Air Inlet Pressure: |
9~10kg/cm2; 130~145PSI |
|
Air compressor required: |
5.5~7.5kw, 10kg/cm2, Exhaust volume: 0.6~1.5M3/min, |
|
Nitrogen Outlet Pressure: |
6~8kg/cm2; 85-115PSI |
|
N2 Output Capacity: |
60~70L/Min; 15.8-18.5Gallon/Min, 2.1~2.5CFM |
|
N2 Tank Capacity: |
70L/18.5Gallon inside |
|
Measure Unit: |
Bar & PSI |
|
Max. Pressure for N2 Tank: |
13.5KG/CM2 |
|
Sensor Precision: |
1PSI |
|
Operating Temperature: |
0-50° C, 0-122° F |
|
Standard Accessories: |
One 10m length pu hoses |
|
Packing & N. W. /G. W.: |
745*550*1500MM (29.3*21.7*59.1inch); 105/129kgs(231.5/284.4LBS)wooden case |
|
|
710*530*1410mm (28*20.9*55.5inch); 105/108kgs(231.5/238.1LBS) carton box |
|
20ft/40ft container: |
51PCS/102PCS |
Guangzhou Anisun Automotive Testing Equipment Co., Ltd. was founded in 2003. It is restructured by Chinese American Mr. Oliver Investment and Anisun in 2007, and set up a joint venture company in Guangzhou. We are researching and manufacturing vehicle testing equipment and testing controlling management system. Our main products includes computer wheel alignment, automobile chassis dynamometer, automobile brake tester, axle loading tester, side sliding tester, speedometer tester, suspension vibration tester, torque angle indicator, wheel partial tester, and so on. We are also sales agents for automobile testing equipments: Light detectors, gas analyzers, opacity smoke meters and other equipment.
Our factory is located in Jiangsu province; its area is more than 12000 square meter. It consists raw-materials workshop, finish machining workshop, welding workshop, treatment workshop, painting/baking workshop, assembling workshop, electrical and electronic controlling production workshop, and testing equipment workshop. We have special R& D department with a group of professional and technical staff.
