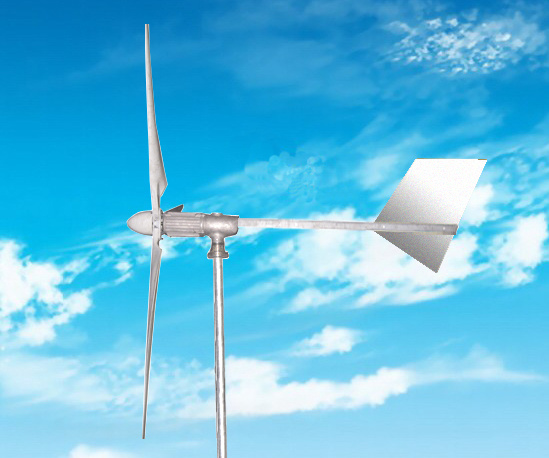

New 2kw Cast Aluminum Wind Turbine Generator
The rear tail could autofurl 90degree to protect the wind turbine
Against high wind speed.
The wind turbine is made by cast aluminum
The new 2kw and 3kw wind turbines is equipped with best magnets in China. This kind magnet is really expensive. The magnets are coated with chrome, and won't be corroded
The magnet is fixed by bolts. In many years later, you could replace the magnets easily.
|
Rotor Diameter (m) |
3.8 |
|
Material and number of the blades |
Reinforced fiber glass*3 |
|
Rated power/maximum power |
2000/2800w |
|
Rated wind speed (m/s) |
10 |
|
Startup wind speed (m/s) |
2.5 |
|
Working wind speed (m/s) |
3~35 |
|
Survived wind speed(m/s) |
50 |
|
Rated rotate speed(r/min) |
380 |
|
Working voltage |
DC24V/48V/120V/240V/300V |
|
Generator style |
Three phase, permanent magnet |
|
Charging method |
Constant voltage current saving |
|
Speed regulation method |
Yaw+ Auto brake |
|
Weight |
70kg |
|
Tower height (m) |
9 |
|
Suggested battery capacity |
12V/200AH Deep cycle battery 8pcs |
|
Life time |
15years |
