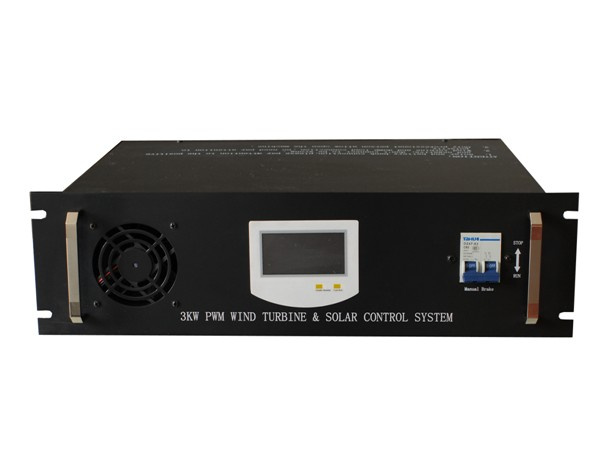

FKJ-B model Product Characteristics
1. The product is manufactured according the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard also with users' technical requirements.
2. The big screen LCD display. Clearly present the working status of the wind turbine, solar panel, battery and controller. (Wind turbine voltage, current, power display; Solar voltage, current, power display, battery charging current, voltage, charging power, power display. )
3. Two sets of control systems: PWM constant voltage system and three-phase dump load system.
4. PWM constant voltage control is 120% of the rated power of the wind turbine. In case exceeding of PWM's capacity, the three-phase dump load will automatically start immediately to ensure safe running of the overall wind turbine system.
5. Under the circumstances of disconnecting or damage of the battery, the three-phase dump load will start automatically to avoid the idling for wind turbine and the occurrence of runaway accident.
|
Type |
3.9KW-48Vdc |
|
Wind power |
3KW |
|
Solar panel power |
900W |
|
Battery |
48Vdc |
|
Function |
Charge, control |
|
Operating environment |
Temperature -10-40, humidity≤ 80% |
|
PWM constant pressure voltage |
> 56Vdc |
|
3-phase load voltage of the wind turbine |
58± 1Vdc |
|
Recovery charging voltage of the wind turbine |
54± 1Vdc |
|
Solar controller stop charging voltage |
58± 1Vdc |
|
Solar restore charge voltage |
54± 1Vdc |
|
Low-voltage of the battery |
40± 1Vdc |
|
Self-provided connecting wire of the battery |
> 12mm² |
|
PWM fuse |
80A |
|
Solar fuse |
20A |
|
Charging fuse |
100A |
|
Size of the controller |
480*360*230 mm |
|
Weight of the controller |
21 Kg |
|
Size of the load |
490*460*310 mm |
|
Weight of the load |
15.5 Kg |
