INTRODUCTION:

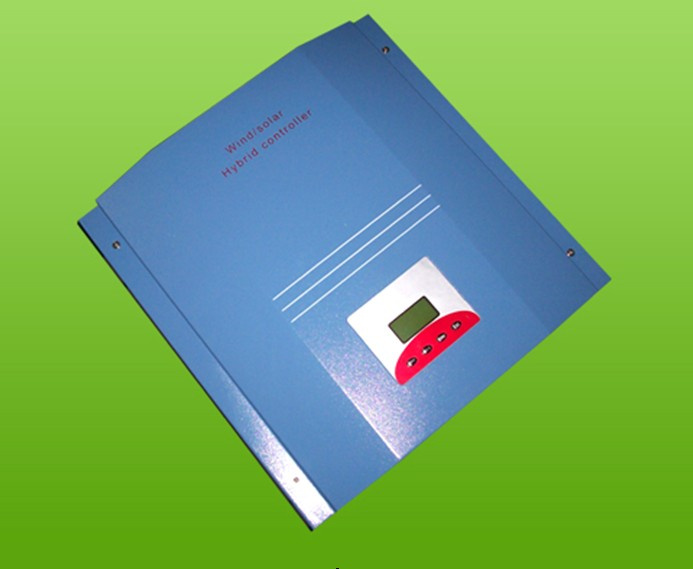

The wind/solar hybrid controller is control device which can control wind turbine and solar panel at the same time and transform wind and solar energy into electricity then store to the battery bank. Wind/solar hybrid controller is the most important part in off-grid system, whose performance has much effect on life expectancy and operation of the whole system, especially the battery expectancy. Life span of battery will be shortened by over charge or over discharge in any case.
PERFORMANCE FEATURES:
² Superior military-grade components to ensure the product stability.
² Adopt Single Chip Micyoco (SCM) to have precise system control.
² Perfect protection function, thus the system has higher reliability.
² Check and set all operation parameters as requirement from LCD display.
² Voltage limiting and current-limiting charge mode, ensures battery in the best charging status.
² PWM stepless unload mode, which burn the excess power into dump load, making the battery charging in best status.
² Design of high quality aluminum alloy appearance, with small size and good cooling effect.
² European CE certification.
OPTIONAL FUNCTIONS:
² Temperature compensation function.
² RS communication function: RS232/RS485/RJ45/GPRS are optional communication ports.
|
CAPACITY OF WIND TURBINE |
CAPACITY OF SOLAR PANEL |
DC voltage ( V ) |
|
1.5KW |
300W |
24 |
|
48 |
|
48 |
|
2KW |
600W |
48 |
|
96 |
|
120 |
|
220 |
|
3KW |
900W |
48 |
|
96 |
|
120 |
|
220 |
|
240 |
