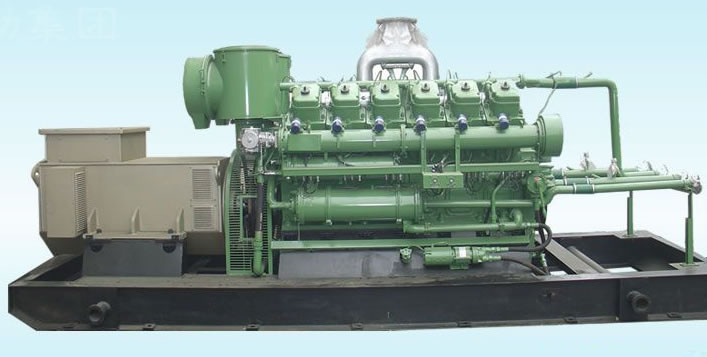

Natural gas generator set with CE ISO Certificate,Brand Chargewe.
Nature gas which mainly composed by CH4.(It is about 90% of total gas).The displacement of nitrogen oxide, HCHydrogen Carbonide and carbonic oxidefrom burning are much lower than the state standards and without dust pollution.Thermal efficiency of coversion is 65%,which is same to the LPG and higher than Coal.Calculated on the same calorific value,the price of natural gas is lower than the price of coal and petroleum.Natural gas can be used by home application, Electricity generation,industrial chemical and industrial fuel and so on.It is a good substitute of coal and petroleum.It can instead of civil coal gas,it can be used as nitrogenous fertilizer instead of coal and petroleum, it can be used as ethylene of naphtha,it also can be used as the car engine fuel instead of petruoleum.
Requirement for natural gas
1.Within 1m from pressure regulating valve of gas intake.
2.the ratio of CH4. in natural gas not less than 70%.
3.Pressure 80-200kpa,pressure changing rate≤1kpa/min
4. H2S≤20mg/Nm³
5.Moisture content≤40g/N m³
6.Impurity particle size≤5μm, impurity content≤30g/N m³
7. If fuel gas contains higher quantity of sulfur and ammonia ,it will not only corrode the pole of sparking plug seriously but also increase the acid value of engine oil which will corrode the parts inside of genset, easy to generation sediment and increase the attrition corrosion to the engine.
Main Specification
Model | Engine No. | Rated power | Rated speed( r/min) | Size(mm) | Net weight(KG) |
|
|
CW-20GFT | CW4105 | 20KW | 1500 | 2200×850×1300 | 900 |
|
CW-40GFT | CW6105 | 40KW | 1500 | 2700×850×1350 | 1200 |
|
CW-60GFT | CW4135 | 60KW | 1500 | 2300×850×1350 | 1300 |
|
CW-80GFT | CW6135 | 80KW | 1500 | 4000×120×1750 | 2300 |
|
CW-100GFT | CW6135 | 100KW | 1500 | 4000×120×1750 | 2300 |
|
CW-120GFT | CW12V135 | 120KW | 1500 | 4000×120×1750 | 4000 |
|
CW-200GFT | CW12V135 | 200KW | 1500 | 4000×120×1750 | 4000 |
|
CW-300GFT | 6190ZLDT-2 | 300KW | 1000 | 5600×1970×2170 | 9000 |
|
CW-400GFT | 12V190DT-2 | 400KW | 1000 | 5600×1970×2235 | 11000 |
|
CW-500GFT | 12V190ZLDT-2 | 500KW | 1000 | 5600×1970×2670 | 11500 |
|
CW-600GFT | 12V190ZLT | 600KW | 1000 | 5600×1970×2670 | 11500 |
Packaging & Delivery
Packaging Details: | plastic film for wrapping, wooden case, or as per cleints request |
Delivery Detail: | 15-30 working days after confirmed the order |
Our Service:
We will send our technician to the site to guide you the installation of generator set, subsystem and relative equipment. We will debug the generator set till it can generate power successfully. We will also supply a technical training to the operators. You also can send your staff to our company. We can teach you till you can operate the generator set and during this time we can offer you board and lodging free of charge.
Spare parts/accessories for gas/diesel generator set
We can offer full sizes and types of generator sets accessoriers in excellent quality with reasonable price. Our generator set spare parts/accessories had been exported to Russia,Ukraine, Middle East ,Southeast Asia,Africa and enjoyed a good respond from our clients. We are willing to service for you and have a long terms business with you.
Shandong Chaiwei power Co., Ltd, which is a leading manufacture of diesel generator and gas generator in China, our generator from 20kw to 1000kw with CE ISO SONCAP certificate & OEM available, which have exported to Middle East, South America, Russia, Africa, and got a high reputation on the overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. We have completed quality inspection system to make sure each product that customer get is perfect; We have professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
Any comments or questions, feel free to tell me. You will surely find our sincerity and value in both our products and service.
