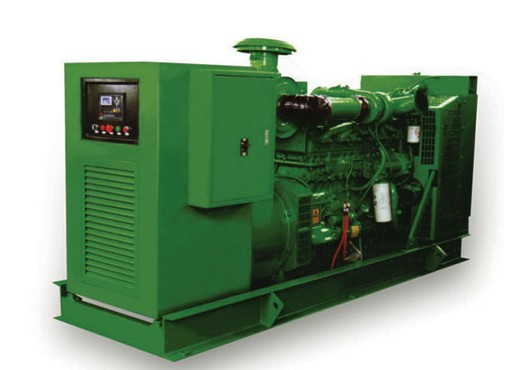

Biogas Generator Set
Biogas is a mixture gas,main composition is methane(CH4 ) and carbon dioxide(CO2). CH4 content 45%-70%,
CO2 content 30%-40%,and also a bit of other gas,such as hydrogen,carbon monoxide,hydrothion sulfide oxygen,nitrogen,ect. Because of there are abundant of methane,the biogas can be used as a kind of fuel.Biogas is a kind of product that organics is resolved by bacterium under the anaerobic condition.Garbage in the city,sludge in the sewage treatment plants,excrement and straws all can be used to generate biogas.
Requirments for Biogas Genset
1.within 1m from pressure regulating
valve of gas intake.
2.Gas temperature≤40°C
3.Pressure 3-20kpa,pressure changing
rate≤1kpa/min
4. H2S≤200mg/Nm³
5. NH3≤20mg/Nm³
6. CH4 content not less than 40%,
changing rate not more than2%.
7.Moisture content≤40g/N m³
8.Impurity particle size≤5μm,
impurity content≤30g/N m³
Main Specification
Style No. | Engine No. | Rated speed | Rated speed(r/min) | Size(mm) | Net weight(KG) |
CW-20GFZ | CW4105 | 20KW | 1500 | 2200×850×1300 | 900 |
CW-40GFZ | CW6105 | 40KW | 1500 | 2700×850×1350 | 1200 |
CW-60GFZ | CW4135 | 60KW | 1500 | 2300×850×1350 | 1300 |
CW-80GFZ | CW6135 | 80KW | 1500 | 4000×120×1750 | 2300 |
CW-100GFZ | CW6135 | 100KW | 1500 | 4000×120×1750 | 2300 |
CW-120GFZ | CW12V135 | 120KW | 1500 | 4000×120×1750 | 4000 |
CW-200GFZ | CW12V135 | 200KW | 1500 | 4000×120×1750 | 4000 |
CW-300GFZ | 6190ZLDT-2 | 300KW | 1000 | 5600×1970×2170 | 9000 |
CW-400GFZ | 12V190DT-2 | 400KW | 1000 | 5600×1970×2235 | 11000 |
CW-500GFZ | 12V190ZLDT-2 | 500KW | 1000 | 5600×1970×2670 | 11500 |
CW-600GFZ | 12V190ZLT | 600KW | 1000 | 5600×1970×2670 | 11500 |
Model No. | CW-20GFZ | CW-40GFZ | CW-80GFZ |
Engine No. | CW4105 | CW6105 | CW6135 |
Gas mix type | outside | outside | outside |
Rated power | 20kw | 40kw | 80kw |
Rated voltage | 400V/230V | 400V/230V | 400V/230V |
Phase | 3p4w | 3p4w | 3p4w |
Rated frequency | 50Hz | 50Hz | 50Hz |
Rated rotation | 1500r/min | 1500r/min | 1500r/min |
Rated power factor | 0.8 | 0.8 | 0.8 |
Rated current | 36A | 72A | 144A |
Heat consumption | ≤11.5mj/kw.h | ≤11.5mj/kw.h | ≤11.5mj/kw.h |
Gas pressure | 3-20kpa | 3-20kpa | 3-20kpa |
Cylinder number | 4 | 6 | 6 |
Cylinder diameter | 105mm | 105mm | 135mm |
Stroke | 125mm | 125mm | 150mm |
Compression ratio | 11:1 | 11:1 | 10:1 |
Aspiration mode | Naturally aspirated | Naturally aspirated | Naturally aspirated |
Ignition method | plug ignition | plug ignition | plug ignition |
Pressure regulation mode | Automatic pressure regulation | Automatic pressure regulation | Automatic pressure regulation |
Speed regulation mode | Electronic speed regulation | Electronic speed regulation | Electronic speed regulation |
Lubrication mode | Pressure and splash lubrication | Pressure and splash lubrication | Pressure and splash lubrication |
Cooling mode | Closed/open cooling | Closed/open cooling | Closed/open cooling |
Starting mode | 24V electric motor | 24V electric motor | 24V electric motor |
Overhaul period | ≥2500 | ≥2500 | ≥2500 |
Noise | ≤105 | ≤105 | ≤105 |
Exhaust temperature | ≤650ºC | ≤650ºC | ≤650ºC |
Displacement | 2.8L | 5.2L | 10.4L |
Genset dimensions | 2200×850×1300 | 2300×850×1350 | 4000×1200×1750 |
Genset weight | 900kg | 1200kg | 2300kg |
Packaging & Delivery
Packaging Details: | plastic film for wrapping, wooden case, or as per cleints request |
Delivery Detail: | 15-30 working days after confirmed the order |
Our Service:
We will send our technician to the site to guide you the installation of generator set, subsystem and relative equipment. We will debug the generator set till it can generate power successfully. We will also supply a technical training to the operators. You also can send your staff to our company. We can teach you till you can operate the generator set and during this time we can offer you board and lodging free of charge.
After-sale Service
1. In our company different people will in charge of different area, we will feedback periodically and support you technical service free of charge, include equipment debugging, fault eliminate, technical advice, maintenance assistant, etc.
2.For the quality problem, we will service for you free of charge during the guarantee period.
3.With one year guarantee period, we can service for you all the time.
4.We will give you an effective answer within 4 hours after received your service information and our service staff will come to your site within 4 hours.
5.When fault happens to the generator set, depending on the service principle of solving problem first, trying to recover the generator set as soon as possible then analysis the problem, we handle the quality problem in time. We insure to help our clients to gain the biggest economic profit.
Spare parts/accessories for gas/diesel generator set
We can offer full sizes and types of generator sets accessoriers in excellent quality with reasonable price. Our generator set spare parts/accessories had been exported to Russia,Ukraine, Middle East ,Southeast Asia,Africa and enjoyed a good respond from our clients. We are willing to service for you and have a long terms business with you.
Shandong Chaiwei power Co., Ltd, which is a leading manufacture of diesel generator and gas generator in China, our generator from 20kw to 1000kw with CE ISO SONCAP certificate & OEM available, which have exported to Middle East, South America, Russia, Africa, and got a high reputation on the overseas market.
About the products, we have self-developed team to design and improve the generator sets to meet different customers` need. We have completed quality inspection system to make sure each product that customer get is perfect; We have professional after-sale team to guarantee your generator set be correctly installed and running normally. CHARGEWE will bring best products and service with most reasonable price for you. From the foundation of our company, we committed to leading as pioneer of the generator industry and contributing ourselves for China's electricity industry. We believe CHARGEWE will be your best partner in generator area.
Any comments or questions, feel free to tell me. You will surely find our sincerity and value in both our products and service.
