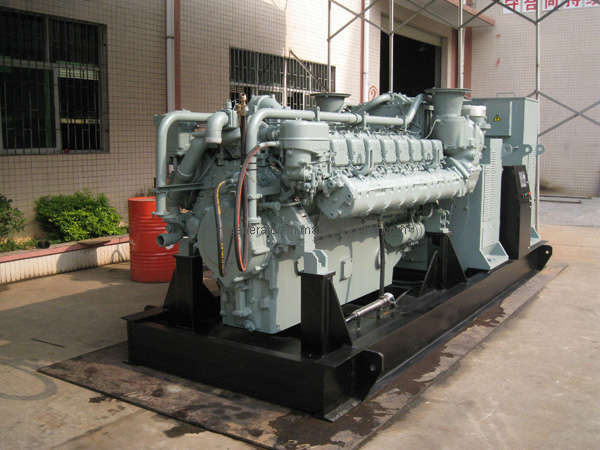

MTU Diesel Generator Set
Genset Model: BMX520
1. MTU Generator Set
Continuous Output: 480KW /600kVA
Standby Output: 520KW /650kVA
Rated Power Factor COSΦ =0.8(lagged)
Rated Output Voltage 400V/230V(400-10000V can be reached)
Rated Current(Continuous/Standby) 1039A/1136.5A
Rated Speed 1500rpm
Rated Frequency 50Hz
Starting Control Method Auto Start/Handle Start
Dimension(mm) 3930*1580*1910
Genset Weight(KG) 4985kg
Fuel Consumption(100% Load)(g/kwh) 196g/kwh
Noise(LP7m) 90dB(A)
2. Engine Specification
Brand MTU
Model No. 12V2000G63
No. Of Cylinder 12
Bore*Stroke 130*150 mm
Starting Method 24V DC Voltage Bearing Starting Motor
Cooling Method Close Circuit Water Cooling
Oil-supply Method Electrical Injection
Speed-adjustment Method Electronic Governing
Aspiration Turbocharged Inter-cooled
Speed 1500rpm
3. Alternator
Brand Faraday
Model No. FD5LP-4
Rated Power/Capacity 630KW / 787.5kVA
Rated Voltage 400V/230V
Output Factor COSΦ =0.8(lagged)
Insulation Class H Class
Protection Class IP23
Wiring Methods 3 Phases and 4 Wires
Voltage Adjustment Methods DVR
Output Frequency 50Hz
4. Control System
Brand DeepSea From England
Model Deepsea 7320
|
BS POWER DIESEL GENERATOR SET |
|
50HZ 1500rpm 400/230V |
|
MTU ENGGA |
|
Genset Model |
KW/KVA |
KW/KVA |
ENGINE MODEL |
Cyl.(L) |
Displacement (L) |
Alternator Model (engga) |
Fuel cons.100% (g/kw.h) |
Net weight (kg) |
Dimensions (L x W x H) MM |
|
Prime power |
standby power |
Open Type |
|
BMX270 |
240/300 |
270/338 |
6R1600G70F |
6R |
10.5 |
EG280L-250N |
201 |
2500 |
2800×1150×1650 |
|
BMX350 |
320/400 |
350/438 |
8V1600G70F |
8V |
14 |
EG315M-320N |
191 |
3450 |
2980×1350×1760 |
|
BMX400 |
360/450 |
400/500 |
10V1600G40F |
10V |
17.5 |
EG315L-360N |
191 |
3880 |
3220×1350×1850 |
|
BMX440 |
400/500 |
440/550 |
10V1600G50F |
10V |
17.5 |
EG315L-400N |
190 |
4000 |
3320×1350×1850 |
|
BMX520 |
480/600 |
520/650 |
12V1600G40F |
12V |
21 |
EG355L-500N |
195 |
4350 |
3500×1350×1850 |
|
BMX570 |
520/650 |
570/713 |
12V2000G25 |
12V |
23.88 |
EG355L-560N |
203 |
6800 |
4200×1650×2280 |
|
BMX704 |
640/800 |
704/880 |
12V2000G65 |
12V |
23.88 |
EG400S-640N |
202 |
6800 |
4200×1650×2280 |
|
BMX800 |
720/900 |
800/1000 |
16V2000G25 |
16V |
31.84 |
EG400M-720N |
198 |
7700 |
4500×2000×2300 |
|
BMX880 |
800/1000 |
880/1100 |
16V2000G65 |
16V |
31.84 |
EG400L-800N |
198 |
7800 |
4500×2000×2300 |
|
BMX1000 |
900/1125 |
1000/1250 |
18V2000G65 |
18V |
35.82 |
EG400L-900N |
202 |
8800 |
4750×2000×2380 |
|
BMX1100 |
1000/1250 |
1100/1375 |
12V4000G21R |
12V |
48.7 |
EG400L-1000N |
198 |
11000 |
6150×2150×2400 |
|
BMX1250 |
1120/1400 |
1250/1563 |
12V4000G23R |
12V |
48.7 |
EG450S-1200N |
198 |
12000 |
6150×2150×2400 |
|
BMX1450 |
1300/1625 |
1450/1813 |
12V4000G23 |
12V |
57.24 |
EG450M-1350N |
189 |
13500 |
6150×2150×2400 |
|
BMX1600 |
1450/1812 |
1600/2000 |
12V4000G63 |
12V |
57.24 |
EG450L-1500N |
193 |
14000 |
6150×2150×2400 |
|
BMX1760 |
1600/2000 |
1760/2200 |
16V4000G23 |
16V |
76.32 |
EG450L-1600N |
193 |
17000 |
6500×2600×2500 |
|
BMX2000 |
1800/2250 |
2000/2500 |
16V4000G63 |
16V |
76.32 |
EG500M-1800N |
191 |
17000 |
6550×2600×2500 |
|
BMX2200 |
2000/2500 |
2200/2750 |
20V4000G23 |
20V |
95.4 |
EG560S-2000N |
205 |
20000 |
7600×2600×3000 |
|
BMX2400 |
2200/2750 |
2400/3000 |
20V4000G63 |
20V |
95.4 |
EG560M-2200N |
205 |
24500 |
7600×2600×3000 |
|
BMX2600 |
2400/3000 |
2600/3250 |
20V4000G63L |
20V |
95.4 |
EG560L-2400N |
205 |
26000 |
7600×2600×3000 |
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.
BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.
In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.
BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.
BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
