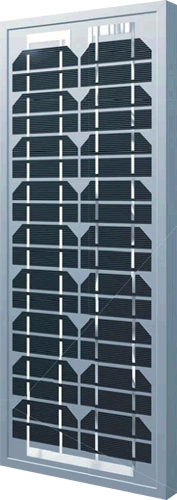

SNM-M20 20Wp
20watt photovoltaic module
MONO-CRY STALLINE SOLAR PANEL
EFFICIENCY
Low voltage-temperature coefficient allows higher power output at high-temperature condition High efficient, high reliable solar cells ensure our product output stability
MATERIALS
Advanced EVA encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation
The sturdy, anodized aluminum frame allows the modules to be mounted on a variety of standard racking systems and to withstand harshest conditions
Ultra reliable bypass diodes prevent damage through overheating due to shaded or defective cells
Innovative, environmentally friendly packing method using pile-edges ensures modules arrive in perfect condition
New frame design incorporating hexagonal shaped drainage holes, with more grounding holes, provide flexible installation and use
BENEFITS
Manufactured in an ISO 9001: 2000 certified plan
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-yea limited warranty on materials and workmanship
NOTE
This publication summarizes product warranty and specifications, whichare subject to change without notice. Additional information may be found on our web site.
SPECIFICATIONS
Model type SNM-M20
Peak power(Pmax) 20W
Weight 2.7kg (6.0lbs)
Dimensions 662× 299× 34mm
26.1× 11.8× 1.3inch
Maximum power voltage (Vmp) 17.82V
Maximum power current (Imp) 1.14A
Open circuit voltage (Voc) 21.96V
Short circuit current (Isc) 1.27A
Maximum system voltage DC 1000V
Note: The specifications are obtained under the Standard Test Conditions (STCs): 1000 W/m solar irradiance, 1.5 Air Mass, and cell temperature of 25
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
