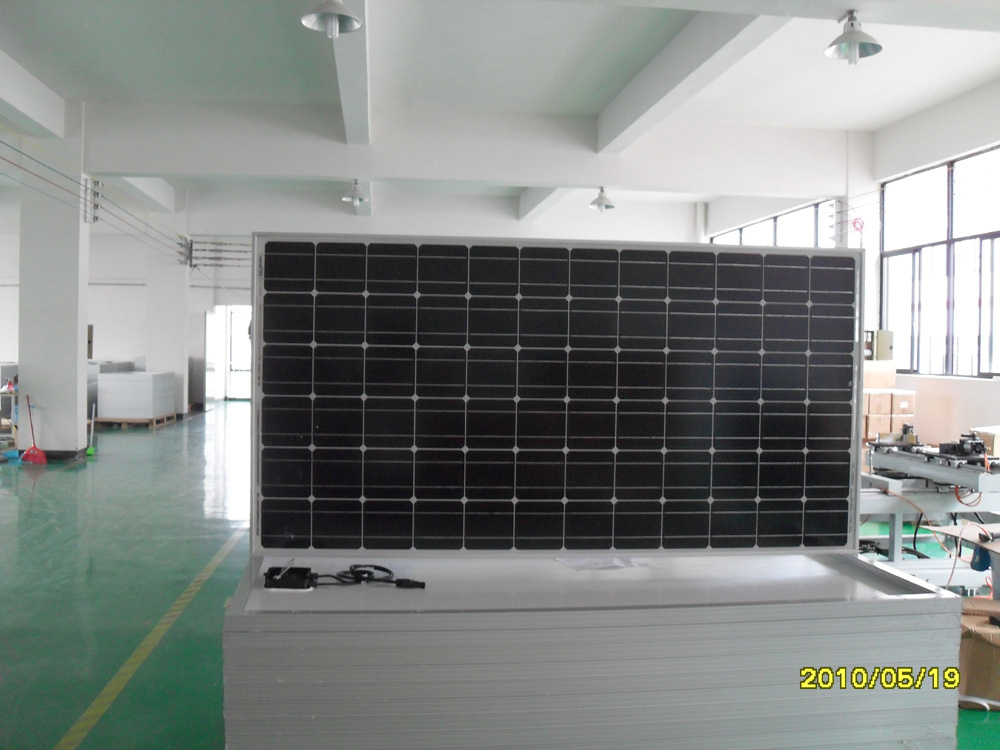

Mono Solar Panel 165W-200W with ISO, CE, TUV/IEC 61215, IEC61730 and MCS, UL certificates. Mono solar panel higher energy production. Remark: The dimensions above are just for your reference, the final figures are subject to our final confirmation.
Solar panel
Solar panel with higher energy production
6 years product warranty (materials and workmanship); 25 years module power output warranty
Industry leading plus only power tolerance: +5W (+3%)
Strong framed module, passing mechanical load test of 5400PA to withstand heavier snow load
Ultra reliable in corrosive atmosphere, verified by IEC61701 "Salt Mist Corrosion Testing"
Manufacturer in the PV industry certified for qualified owned testing lab, fully complying to IEC, TUV, UL testing standards, we produce the best solar panel.
|
Zhejiang Sunenergy Co., LTD |
|
Add: Jincheng Road, Yongkang City, Zhejiang Province China |
|
ITEM NO |
SUM-M190 |
|
Cell Type |
Mono-crystalline Silicon Solar cells |
|
Maximum power (Wp) |
190wp |
|
Maximum power voltage (V) |
36V. |
|
Maximum power current (A) |
5.28A |
|
Open circuit voltage (V) |
43.2V |
|
Short circuit current (A) |
5. 91A |
|
Number of cells (Pcs) |
72(6*12) PCS |
|
Size of module (mm) |
1580x808x35mm/40mm/45mm( 125*125mm cell) |
|
Temperature Range |
-40°C~+85°C |
|
NOVT(Nominal Operating Cell Temperature) |
47°C(±2°C) |
|
Voltage temperature coefficient (VOC) |
-0.34%/°C |
|
Current temperature coefficient(ISC) |
+0.09%/°C |
|
Power temperature coefficient (Pmmp) |
-0.37%/°C |
|
Maximum system voltage (V) |
1000V |
|
Surface Maximum Load Capacity |
60m/s(200kg/sq.m) |
|
Allowable Hail Load |
steel ball fall down from 1m height |
|
Certificates |
TUV,IEC,CE,ISO,CQC |
|
Output tolerance (%) |
±3% |
|
Weight per piece (kg) |
15.5KG |
|
Glass Type |
Tempered Glass |
|
Junction Box Type |
Passed the TUV certified |
|
Length of Cables (mm) |
900mm |
|
Connector Type |
MC4 |
|
Backside Foil Type |
PVDF-W250 (0.349) |
|
Frame (Material, Corners, etc.) |
Aluminum |
|
Cell Efficiency (%) |
≥17.2% |
|
Module Efficiency (%) |
≥15% |
|
FF (%) |
77% |
|
Standard Test Conditions |
AM1.5 100mW/cm2 25’C |
|
Warranty |
5 years product warranty and 10years 90% of power ,20years 80% of power; |
|
Packing |
2PCS/CTN |
|
Unit Price |
FOB Ningbo |
Zhejiang Sunenergy Co., Ltd is a professional solar products manufacturer and sales in China. The company began the production of solar photovoltaic R & D since 2002. It consists of a group of professionals with a lot of experience and long careers in the field of photovoltaic energy.
Now the production line is in capacity of 120 MW per year. Besides., our factory also was bulit the production line of controller and inverter major solar products series in 2005.
Our factory can supply the solar panel both mono solar panel and poly solar panel, solar controller, solar inverter and design the solar system. Sun Energy has obtained its CE. Rosh. TUV. IEC certifications for its core modules...
With Company in Shanghai, China and Hong Kong branches and offices and Agency in Indonesia, We have taken part in the large project in European countries and USA possitively since the year of 2007 and have made our products well accepted in these regions.
Sun energy will bring you a new business success!
