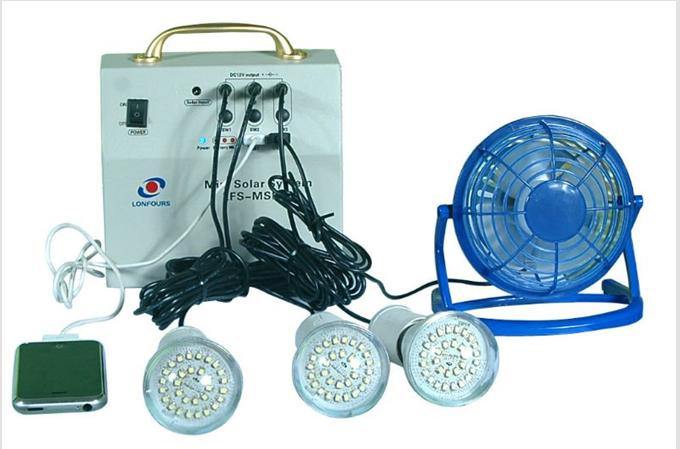

Model Number: LSF-MSP80 Mini 80W Solar Home Power System
Product Characteristic:
LFS-MSP80 Mini home solar power system is one of our brand new home solar power products.
1. Compact structure: Adopt durable full metal chassis, rational design makes it more convenient to change the battery. There are independent switches and indicators for all of the 3 line of output.
2. Intelligence Control: Overcharge and over discharge protection controlled by intelligence chip. There are 3 LED indicators indicating the power gauge during the discharging.
3. Multifunction: With DC USB 5V output, can be used as power source for LED lamp, cell phone and digital appliances.
4. Protection: 3 lines for LED illumination output, 2 lines for USB 5Voutput, with short circuit protection, overload protection, battery under voltage protection, etc.
5. Multiple charging modes: Be charged by solar power and commercial power charger as well.
Product system introduction
Input/output
(1) 3 DC12V LED lamps power output socket 5.5/2.6mm, the max current of each DC12V output is 1.5A.
(2 )2 DC5V USB output socket(USB-A) for cellphone charging, the total current of 2 USB 5V output is 2A.
Specification:
|
Solar Panel |
Type |
Mono-crystalline or Poly-crystalline |
|
Qty. |
1 PCS |
|
Dimension of Each Power (L*W*H) |
5W/18V |
250*195*25mm |
0.8KG |
Jack: 5.5/2.0mm |
Cable length: 5m |
|
8W/18V |
340*240*25mm |
1.2KG |
Jack: 5.5/2.0mm |
Cable length: 5m |
|
10W/18V |
340*285*25mm |
1.4KG |
Jack: 5.5/2.0mm |
Cable length: 5m |
|
Battery |
Type |
Rechargeable Lead acid battery |
|
Capacity and Dimension(L*W*H) |
12V / 7Ah |
180*70*200mm |
2.5KG |
(L*W*H)with handle |
|
12V /4Ah |
180*70*200mm |
3.0KG |
(L*W*H)with handle |
|
Quantity |
1 PCS |
|
Charging Time |
For capacity: 7.0Ah/12V, spend around 15 hours to full charging |
|
Adapter |
Input: AC/DC 90~254V |
DC Output: 0.5A/15V; |
|
Car Adapter |
Output |
12V/1A |
Cable length: 1.0m |
0.04KG |
|
|
|
Led Lamp |
1W Output power |
1.0W |
47*80 |
0.02KG |
|
|
|
3W Output power |
3.0W |
60*105 |
0.04KG |
|
|
|
Lamp cable set |
Type |
E27 lamp holder |
Cable length: 3m |
0.07KG |
Jack: 5.5/2.6mm |
|
Package Data:
|
Carton Description |
Dimension |
Qty |
|
350 grey card framed B3core wire or strength member |
350*570*310mm |
4pcs/ctn |
For 20ft container: 2100pcs MSP80(5W/8W), 1700pcs MSP80(10W)
For 40ft container: 4800pcs MSP80(5W/8W), 3900pcs MSP80(10W)
|
