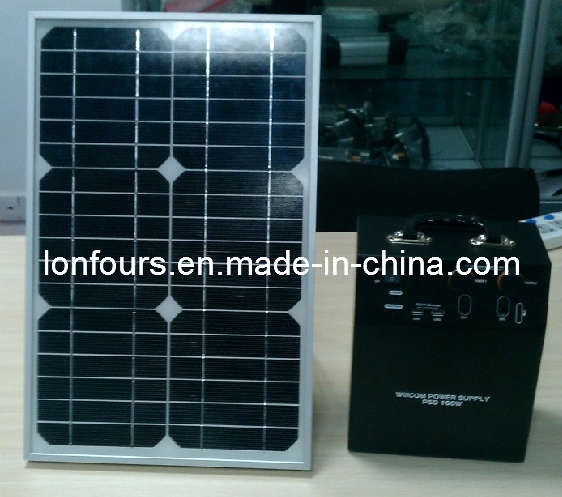

A. Solar generator system LFS-MSP100. The system basic configurations:
1. Solar panel: 20W, Monocrystalline or polycrystalline silicon. Solar power input socket spec.: 5.5/2.0, dimension: 345*535*25mm.
Three hanging holes on the solar panel top, on the two sides of solar panel, there are two rectangle installation holes in each side of solar panel.
Please refer to the solar panel 's technology data sheet for detail dimensions, etc.
2.18AH/12V Sealed lead acid battery, maintenance free, Valve controlled.
Battery Dimension: 81*77*167(167).
Would also suitable to put the 26AH lead acid battery inside possibly while design the unit shell.
Unit shell original design dimension is: 215*135*260.
3. Fully metal materials for the unit shell. Sub-Black color. Four extrusive outstanding on back side of unit shell, as the stands when the unit be placed horizontally
4. Except solar panel charging method, the system battery can still be charged with AC/DC power adaptor or car power adaptor. AC/DC power adaptor will be with 3A/15V output, comply with PSE certification.
5. Two car cigarette power output sockets, with Max. 10AMP current output each.
6. 2 USB 5VDCoutput for mobile phone charging, etc., with Max. 1AMP current output each.
7. Intelligent MCU charging and discharging management. LED displaying battery's charging or discharging situation and balance battery capacity.
8. Without AC output function yet. With portable handle.
