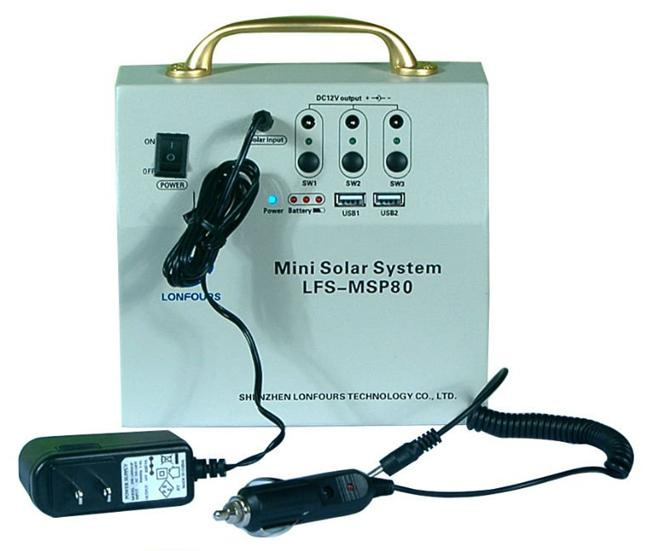

Model Number: LSF-MSP80 Mini 80W Home Solar Power System
Product Characteristic:
LFS-MSP80 Mini home solar power system is one of our brand new home solar power products.
1. Compact structure: Adopt durable full metal chassis, rational design makes it more convenient to change the battery. There are independent switches and indicators for all of the 3 line of output.
2. Intelligence Control: Overcharge and over discharge protection controlled by intelligence chip. There are 3 LED indicators indicating the power gauge during the discharging.
3. Multifunction: With DC USB 5V output, can be used as power source for LED lamp, cell phone and digital appliances.
4. Protection: 3 lines for LED illumination output, 2 lines for USB 5Voutput, with short circuit protection, overload protection, battery under voltage protection, etc.
5. Multiple charging modes: Be charged by solar power and commercial power charger as well.
Product system introduction
Input/output
(1) 3 DC12V LED lamps power output socket 5.5/2.6mm, the max current of each DC12V output is 1.5A.
(2 )2 DC5V USB output socket(USB-A) for cellphone charging, the total current of 2 USB 5V output is 2A.
|
Component |
Specification |
Dimension / mm
(L*W*H) |
Weight
(KG) |
Remark |
|
Solar Panel |
Type |
Mono-crystalline /Poly-crystalline |
|
Qty. |
1 PCS |
|
Dimension of Each Power' s Panel |
5W/18V |
250*195*18 |
0.8 |
Jack: 5.5/2.1mm |
|
Cable Length: 5m |
|
8W/18V |
340*240*18 |
1.2 |
Jack: 5.5/2.1mm |
|
Cable Length: 5m |
|
10W/18V |
340*285*18 |
1.4 |
Jack: 5.5/2.1mm |
|
Cable Length: 5m |
|
Control Box |
BatteryType |
Rechargeable Lead acid battery |
|
Capacity and Dimension |
12V / 7Ah |
180*70*200 |
2.5 |
Dimension is including handle |
|
12V /4Ah |
180*70*200 |
3 |
Dimension is including handle |
|
BatteryQuantity |
1 PCS |
|
USB Output Socket |
2 sockets: DC 5V |
|
Accessory (Optional) |
|
Power Adaptor |
Input: AC/DC 100~240V, Output DC: 1000mA/15V |
Cable Length: 1.5M |
0.07 |
Attaching plug is optional |
|
Auto Adaptor |
Output |
3A /12V |
Cable length: 1.0M |
0.04 |
|
|
Led Bulb |
1W Output power |
1.0W |
47*80 |
0.02 |
diameter*length |
|
3W Output power |
3.0W |
60*105 |
0.04 |
|
|
LED Holder |
Type |
E27 lamp holder |
Cable length: 3m |
0.07 |
Jack: 5.5/2.6mm |
|
Packing |
#300 Grey C9 strengthen core (In 5w/8W solar panel) |
345*135*245 |
0.4 |
1 set/Box |
|
#300 grey C9 strengthen core( In 10W solar panel) |
345*135*290 |
0.4 |
1 set/Box |
|
#350 grey B3 strengthen core |
355*570*255 |
0.7 |
4 sets/CTN |
|
#350 grey B3 strengthen core |
355*570*310 |
0.8 |
4 sets/CTN |
20ft container: 2034 sets (packing in 8W solar Panel)
1792 sets (packing in 10W solar panel)
40ft container: 2034 sets (packing in 8W solar Panel)
1792 sets (packing in 10W solar panel)
|
