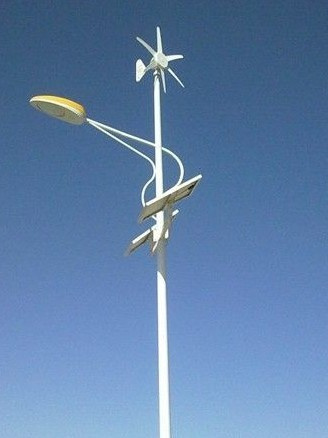

Small wind turbine, bettter for finishing boat, telcommunication station, farmer, wind solar street light and so on
| Model | M-300 |
|
|
| Rated Voltage ( DCV ) | 12/24 |
| Rated output ( W ) | 50 |
| Start-up wind speed (M/S ) | 1 |
| Survival wind speed ( M/S ) | 35 |
| Generator type | PMG |
| Rotor diameter ( M ) | 0.82 |
| Blade No. | 6 |
| Blade material | Reinforced fiber glass |
| Nacelle material | Reinforced fiber glass |
| Controller | Built-in |
| Protection mode | Short circuit |
| Lifetime ( years ) | 15-20 |
| Packing form | Plywood or carton |
| Protection grade | IP65 |
| Package size ( mm ) | 470*410*330 |
| Gross weight ( kg ) | 9 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
