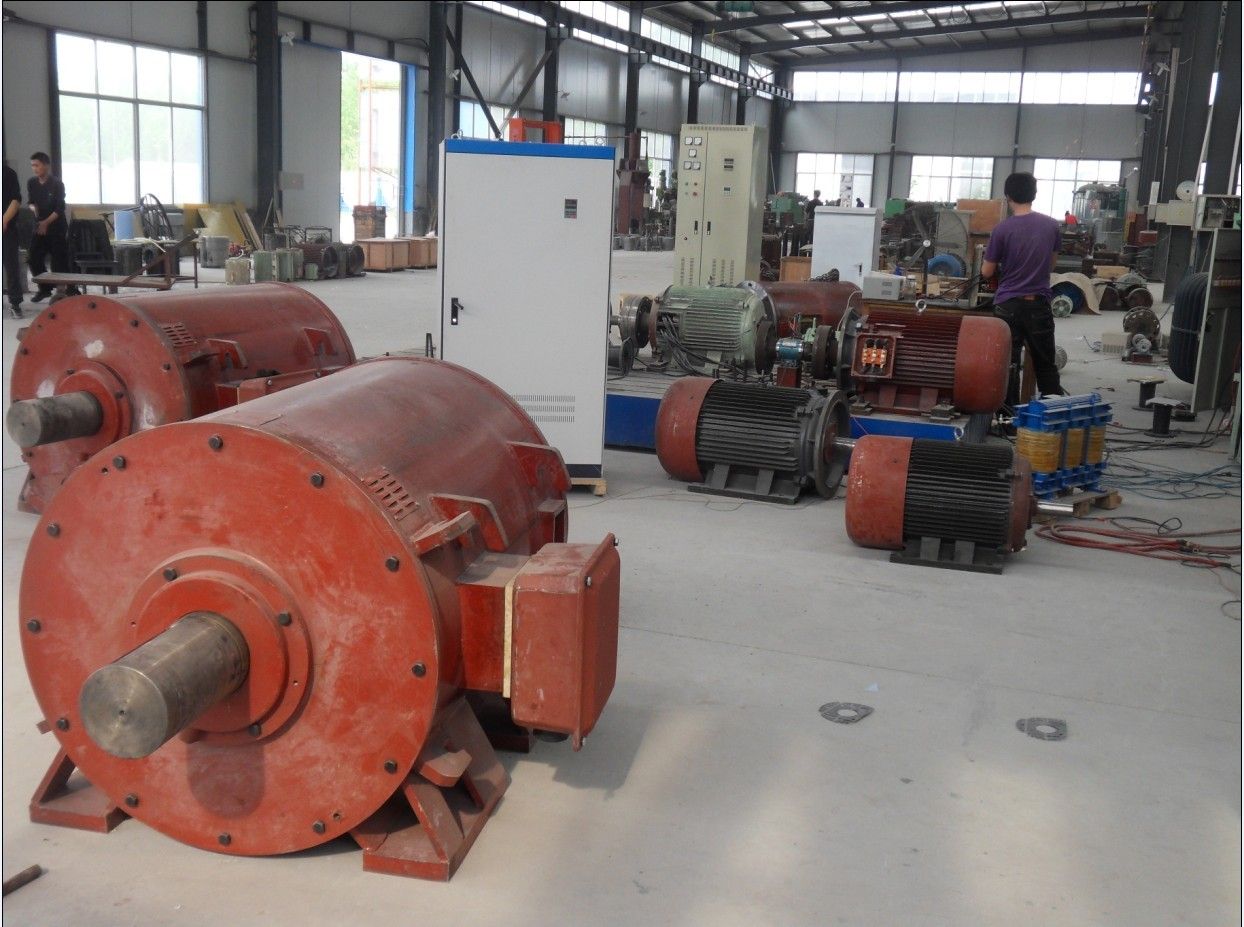

Small hydro turbine generator r, We offer various kinds of small hydro turbine geenrator from 0.1KW-3000KW(vertical and horizontal), speed from 20rpm-6000rpm,
Please contact us for more detail informations.
Features of permanent magnet generator
*Low start up speed, Gearless, low RPM generator
*High standard components for use in hard and extreme
Environments for wind turbine
*High efficiency low mechanical resistance energy loss
*Design for reliable long operational lifetime
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 12 kw | 400V | 250rpm | 24 | 50Hz | 460Nm | 16.9A | 93.8% | 260kg |
| 24 kw | 400V | 500rpm | 12 | 50Hz | 460Nm | 34A | 93.8% | 260kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 15 kw | 400V | 214rpm | 28 | 50Hz | 670Nm | 21A | 93.8% | 320kg |
| 30 kw | 400V | 428rpm | 14 | 50Hz | 670Nm | 42A | 93.8% | 320kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 20 kw | 400V | 187.5rpm | 32 | 50Hz | 1020Nm | 29A | 93.8% | 420kg |
| 40 kw | 400V | 375rpm | 16 | 50Hz | 1020Nm | 58A | 93.8% | 420kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 30 kw | 400V | 187.5rpm | 32 | 50Hz | 1530Nm | 43A | 93.8% | 720kg |
| 60 kw | 400V | 375rpm | 16 | 50Hz | 1530Nm | 86A | 93.8% | 720kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 35 kw | 400V | 125rpm | 48 | 50Hz | 2700Nm | 51A | 93.8% | 1260kg |
| 70 kw | 400V | 250rpm | 24 | 50Hz | 2700Nm | 102A | 93.8% | 1260kg |
| 105 kw | 400V | 375rpm | 16 | 50Hz | 2700Nm | 153A | 93.8% | 1260kg |
| 140 kw | 400V | 500rpm | 12 | 50Hz | 2700Nm | 204A | 93.8% | 1260kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 80 kw | 400V | 125rpm | 48 | 50Hz | 6120Nm | 116A | 93.8% | 1680kg |
| 160 kw | 400V | 250rpm | 24 | 50Hz | 6120Nm | 232A | 93.8% | 1680kg |
| 200 kw | 400V | 375rpm | 16 | 50Hz | 6120Nm | 288A | 93.8% | 1680kg |
| 320 kw | 400V | 500rpm | 12 | 50Hz | 6120Nm | 461A | 93.8% | 1680kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 100 kw | 400V | 125rpm | 48 | 50Hz | 7650Nm | 144A | 93.8% | 2800kg |
| 200 kw | 400V | 250rpm | 24 | 50Hz | 7650Nm | 288A | 93.8% | 2800kg |
| 300 kw | 400V | 375rpm | 16 | 50Hz | 7650Nm | 432A | 93.8% | 2800kg |
| 400 kw | 400V | 500rpm | 12 | 50Hz | 7650Nm | 576A | 93.8% | 2800kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 150 kw | 400V | 125rpm | 48 | 50Hz | 11500Nm | 216A | 93.8% | 3900kg |
| 300 kw | 400V | 250rpm | 24 | 50Hz | 11500Nm | 432A | 93.8% | 3900kg |
| 450 kw | 400V | 375rpm | 16 | 50Hz | 11500Nm | 648A | 93.8% | 3900kg |
| 600 kw | 400V | 500rpm | 12 | 50Hz | 11500Nm | 864A | 93.8% | 3900kg |
| Power | AC voltage | speed | poles | frequency | Rated torque | current | efficiency | weight |
| 200 kw | 400V | 125rpm | 42 | 50Hz | 15300Nm | 288A | 93.8% | 5200kg |
| 600 kw | 400V | 375rpm | 14 | 50Hz | 15300Nm | 864A | 93.8% | 5200kg |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
