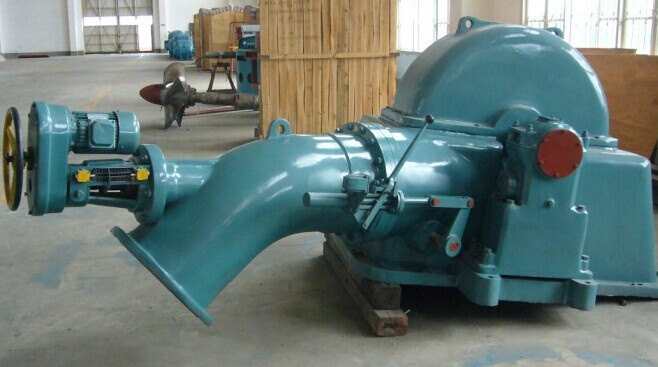

Water head: 50 m, flow rate: 175 l / sec can be installed power: 50KW
System include turbines, generators, draft tube, butterfly control valve, the
Control box
Three units require the installation of pressure pipe diameter: 300 mm.
| Turbine |
|
|
|
|
| Genertaor |
|
|
|
| Water head |
| Rated speed r/min | Model | powe r KW | Rated voltg e V | Rated current A | Rate d spee d r/mi n | Inlet valve( mm) |
|
| flow / | power KW |
XJ02-W-32/1*9
| 50 | 175 | 30 | 1000 | SFW50-8/493
| 50 | 380 | 54 | 750 | 300 |
|
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
