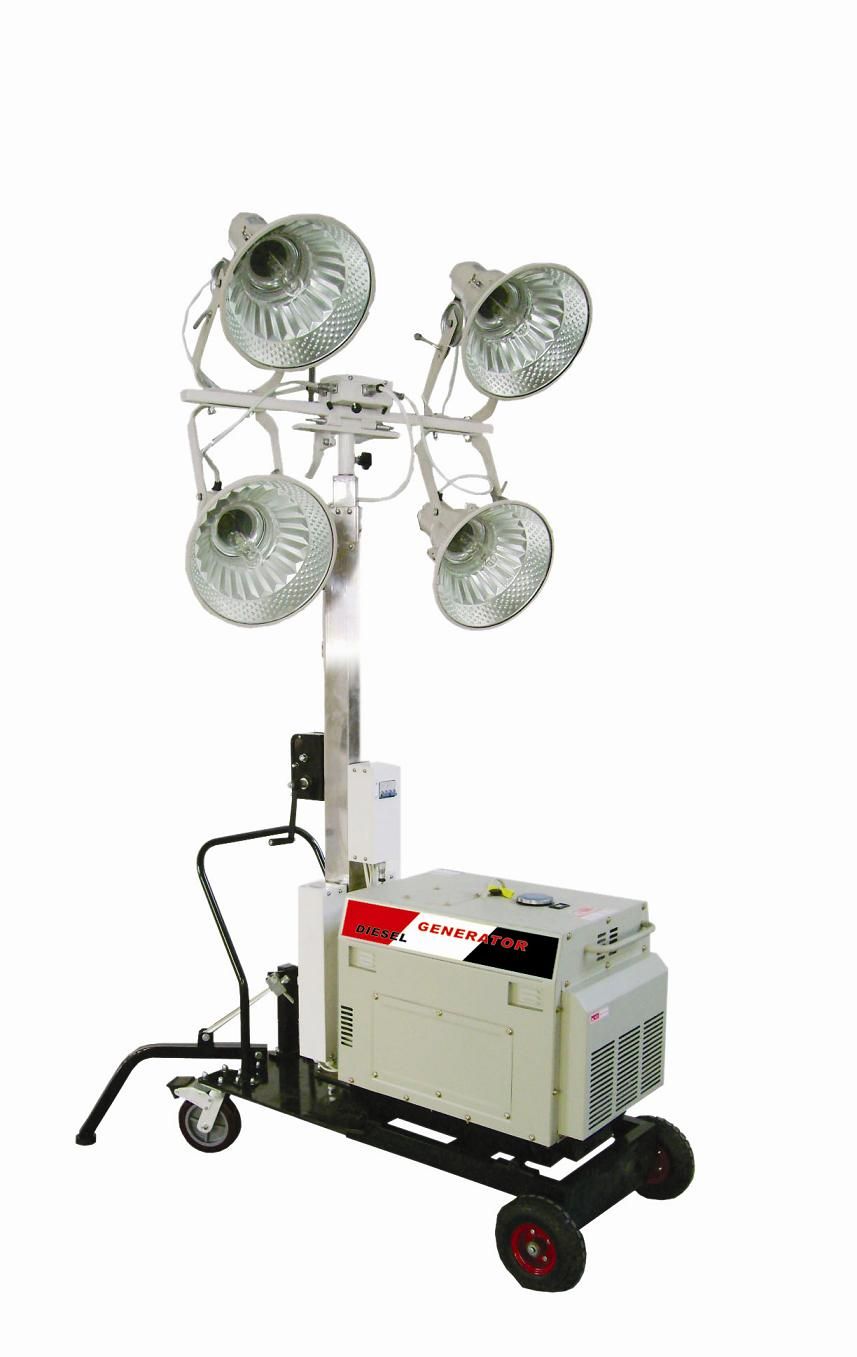

Light Tower(Hand-push Type)
It is normally used for night construction and other field operation in the sectors of municipal engineering, road, bridge, port, mining and construction etc. Meanwhile, it is also used on the occasion of night rush repairs and disaster relief site.
Famous motor and generator, excellent performance, startup easily;
Philips metal halide lamps- long life services;
Anti-fall, safe and solid;
Manul winch, lockable at any moment;
Elevating frame is made of stainless steel square tube;
Elevating frame can rotate, east for light waving, overturn to intake, transport and store;
Plastic treated, anti-rust, anti-corrosion and looks beautiful.
|
Type |
SF3GF-LET-4 |
SF 5GF-LET |
|
lllumination |
|
|
Power×lamps quantity |
1000W×2 |
1000W×4 |
|
luminous flux |
220000Lm |
440000Lm |
|
Lamps |
Metal halide lamp |
|
Lamp post |
|
|
Lamp frame |
3section elevating frame |
|
Elevating height |
4300mm |
4500mm |
|
Elevating mode |
By hand-operated/By air-operated |
|
Anti-slope |
<10° |
|
Anti-wind level |
<6 |
|
Engine |
|
|
Mode |
SF178FE |
SF186FE |
|
Type |
Air cooled,4 stroke, single-cylinder
direct injection type diesel engine |
|
Power |
4KW/5.5hp |
7.5KW/10hp |
|
Fuel tank volume |
13.5L |
|
Continuous working time |
8h |
8h |
|
Generator |
|
|
Type |
Single-phase alternator |
|
Frequency |
50/60Hz |
|
MAX Power |
3.1KVA |
5.5KVA |
|
Rated Power |
3KVA |
5.0KVA |
|
Insulation grade |
B |
|
Air compressor |
|
|
Power |
0.4kw |
|
Exhaust pressure |
0.7Mpa |
|
Displacement |
89L/min |
|
Dimension |
|
|
Transport size |
1700×810×2300mm |
1700×810×2450mm |
|
Packing size |
|
|
Main structure |
1700×810×1120mm |
|
Stanchion |
1900× 440×440mm |
|
Lamp and laterns |
580×1110×580mm |
580×1110×580mm |
|
Weight |
|
|
Weight |
313kg |
362kg |
|
MAX working weight |
325kg |
374kg |
