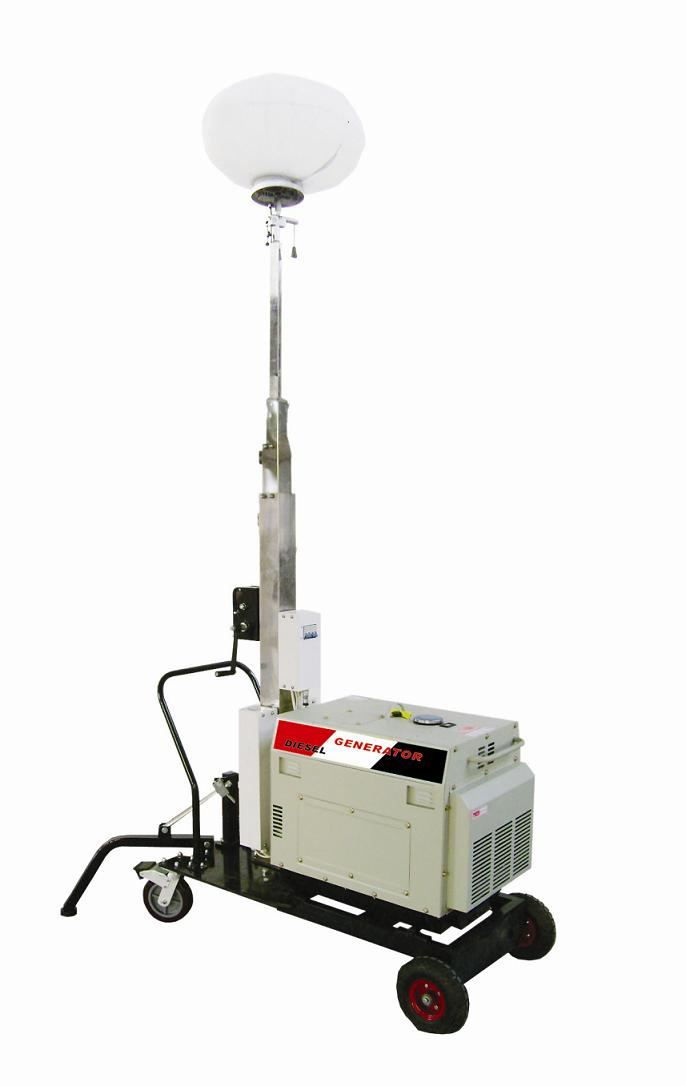

Balloon Light Tower
The light tower is mainly used in the field of expressway, national highway and night construction. It has high brightness all cover no shadow and no dazzle, lamp post rotating angle is 360° Helpful for safe working and ensure driving safety
Environment-friendly;
Advertisement can be painted on globe body;
Famous motor andalternator, excellent performance, startup easily;
Metal halide lamps hap long life services;
Anti-fall, safe and solid;
Hand-operated winch, lockable;
Elevating frame is made of Stsainless steel square tube;
Elevating frame can overturn to intake, easy transport and store;
Plastic treated, anti-rust, anti-corrosion and looks beautiful.
|
Type |
SF3GF-LET-1 |
|
lllumination |
|
|
Power× lamp quantity |
1000W× 2 |
|
Luminous flux |
220000Lm |
|
Lamps |
Metal halide lamp |
|
Lamp post |
|
|
Lamp frame |
3 section elevating frame |
|
Elevating height |
4300mm |
|
Elevating mode |
By hand-operated/By hydraulic |
|
Anti-slope |
< 10° |
|
Anti-wind level |
< 6 |
|
Engine |
|
|
Mode |
SF178FE |
|
Type |
Air cooled, 4 stroke, single-cylinder
direct injection type diesel engine |
|
Power |
4KW/5.5hp |
|
Fuel tank volume |
13.5L |
|
Continuous working time |
9.7h/8.6h |
|
Alternator |
|
|
Type |
Single-phase alternator |
|
Frequency |
50/60Hz |
|
MAX Power |
3.1KVA |
|
Rated Power |
3KVA |
|
Insulation grade |
B |
|
Dimension |
|
|
Transport size |
1700× 810× 2300mm |
|
Packing size |
|
|
Main machine |
1700× 810× 1120mm |
|
Stanchion |
1890× 440× 440mm |
|
Lamps and laterns |
580× 1110× 580mm |
|
Weight |
|
|
Weight |
165kg |
|
MAX working weight |
177kg |
Saffehanda Company is committed to diesel engines and power generating equipment research and development, production and sales. The leading products of our company are wind turbine(150W-1MW), gas generator set, R series and 495 series diesel engines, diesel generating sets, various complete sets of units and sparing parts etc. Which has a power scope of 2~2000KW, they are extensively used in generating equipments, agricultural machines, engineering machines, camion and boats or ships etc.
We are persisting in the principle of "benefits as the center, market as the direction, quality first and customers foremost". We will continue to innovate and reform in view of the trend of market and the requirement of clients. The company has a strict quality guarantee system and obtains ISO9001: 2000, ISO/TS16949: 2000 quality certificates, R series diesel engines are approved by Chinese CCS and ZY, EURO emission limits, Italian CE, American EPA and Indian CPCB certificates. There are 7 series products has been regarded as high-tech products in Shandong, 22 National patents have been applied, and be known as famous brand in Shandong. We have established the complete marketing network and sound service system. Our products are on sales throughout the whole country, moreover, have been exported to Asia, Africa, America, Europe etc, and have won universal praises from clients at home and abroad.
In recent years, we invested in the new 500-mu top-level casting and foundry center and assembly plant to combine the supply chain and upgrade production level from engine manufactory to the domestic leading diesel generators set supplier. The company developed steadily and was awarded as "high-tech enterprise", "Contract Abiding & Creditable Enterprise", "the 50 top industry enterprises" and the Grade A "Honest Taxpaying Company", "Shandong 100 Outstanding Machinery Industrial Enterprise", "Shandong Machinery Industry Civilization Enterprise", "Shandong 10 innovative Machinery Industrial Enterprise", "Technology-intensive and knowledge-intensive enterprises" etc.
