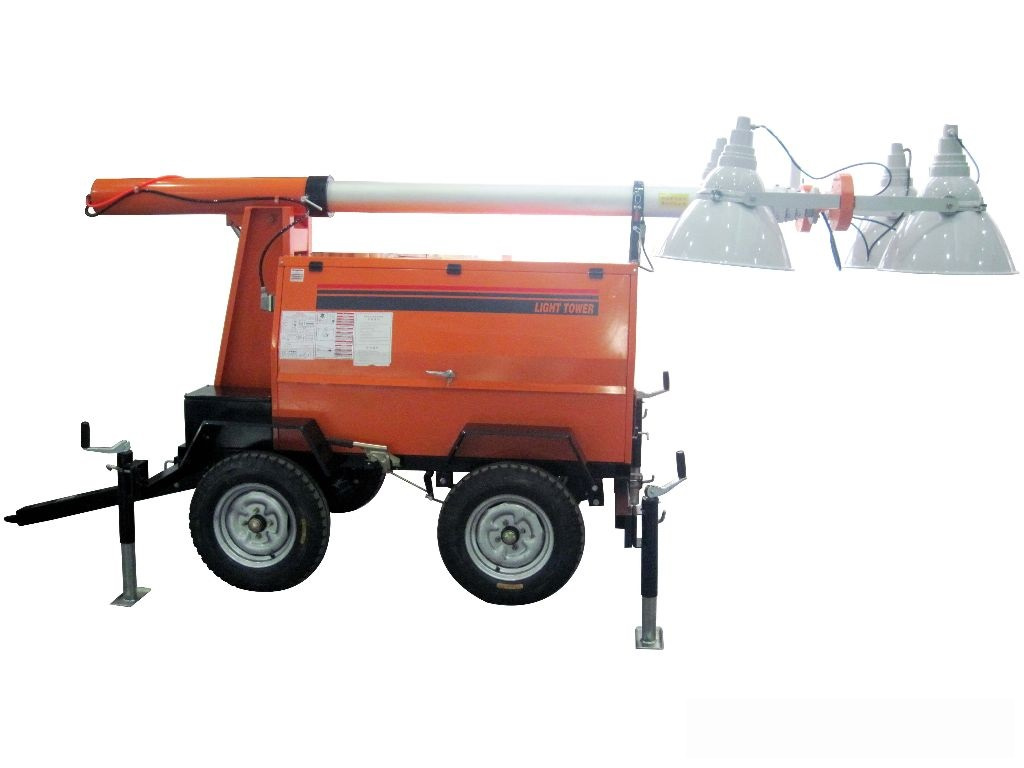

Trailer Light Tower(elevate by hydraulic-operated)
It is normally used for night construction and other field operation in the sectors of municipal engineering, road, bridge, port, mining and construction etc. Meanwhile, it is salso used on the occasion of night rush repairs and disaster relief site.
Hydraulic heavy-duty winch;
Famous motor and alternator, excellent performance, startup easily, low oil consumption;
Casting aluminium lamp and lanterns;
Metal halide lamp has long life services;
Individual breaker switch for each light assemble;
Original and beautiful feature;
With damping spring in the chassis;
Emergency shutdown protection;
With trailer hitch to connect other vehicle;
Plastic treated, anti-rust, anti-corrosion and looks beautiful;
Optional function, (electrical waving of light bar, remote control angle of projection, with stoplight in back of tower, with anxiliary tank).
Type | SFQ10GFT | SFQ12GFT |
lllumination | |
Power×lamp quantity | 1000W×4 |
Luminous flux | 440000Lm |
Lamps | Metal halide lamp |
Lamp post | |
Lamp frame | 5 section elevating frame |
Elevating height | 9200mm |
Elevating mode | By hydraulic |
Anti-slope | <5° |
Anti-wind level | <6 |
Engine | |
Mode | QC385D | QC480D |
Type | Three-cylinder,air cooled,diesel engine | Four-cylinder,water cooled,diesel engine |
Power | 15hp | 20hp |
Fuel tank volume | 100L |
Continuous working time | 36h | 23h |
Alternator | |
Type | Single-phase alternator |
Frequency | 50/60Hz |
MAX Power | 10KW/12.5KVA | 11/13KVA |
Rated Power | 8KW/10KVA | 10/12KVA |
Insulation grade | H |
Hydraulic pump | |
Type | Gear pump |
Flux | 2.27 L/min |
Pressure | 16Mpa |
Dimension | |
Transport size | 4300×1430×1550mm | 4300×1540×1700mm |
Packing size | |
Main structure | 1720×1430×1500mm | 1920×1540×1500mm |
Stanchion | 3480×345×300mm |
Lamp | 1110×1110×580mm |
Weight | |
Weight | 920kg | 1265kg |
MAX working weight | 990kg | 1340kg |
Saffehanda Company is committed to diesel engines and power generating equipment research and development, production and sales. The leading products of our company are wind turbine(150W-1MW), gas generator set, R series and 495 series diesel engines, diesel generating sets, various complete sets of units and sparing parts etc. Which has a power scope of 2~2000KW, they are extensively used in generating equipments, agricultural machines, engineering machines, camion and boats or ships etc.
We are persisting in the principle of "benefits as the center, market as the direction, quality first and customers foremost". We will continue to innovate and reform in view of the trend of market and the requirement of clients. The company has a strict quality guarantee system and obtains ISO9001: 2000, ISO/TS16949: 2000 quality certificates, R series diesel engines are approved by Chinese CCS and ZY, EURO emission limits, Italian CE, American EPA and Indian CPCB certificates. There are 7 series products has been regarded as high-tech products in Shandong, 22 National patents have been applied, and be known as famous brand in Shandong. We have established the complete marketing network and sound service system. Our products are on sales throughout the whole country, moreover, have been exported to Asia, Africa, America, Europe etc, and have won universal praises from clients at home and abroad.
In recent years, we invested in the new 500-mu top-level casting and foundry center and assembly plant to combine the supply chain and upgrade production level from engine manufactory to the domestic leading diesel generators set supplier. The company developed steadily and was awarded as "high-tech enterprise", "Contract Abiding & Creditable Enterprise", "the 50 top industry enterprises" and the Grade A "Honest Taxpaying Company", "Shandong 100 Outstanding Machinery Industrial Enterprise", "Shandong Machinery Industry Civilization Enterprise", "Shandong 10 innovative Machinery Industrial Enterprise", "Technology-intensive and knowledge-intensive enterprises" etc.
