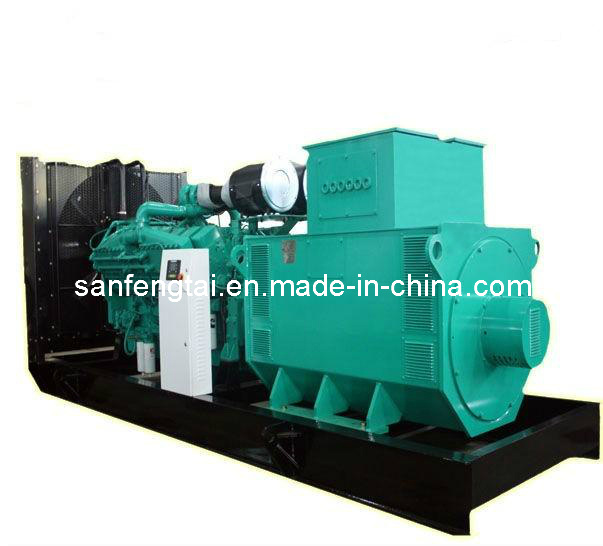

Cummins diesel generator set
CUMMINS Series Power Diesel Generator set/Silent Diesel Generator/Soundproof Generator/Soundproof Diesel genset/Power Generator/Gensets, with compacted structure and best configuration.
Scope of genset
1. Brand new Cummins engine
2. Brand new Leroy Somer AC brushless alternator IP23
3. Rating: 380V, 3pH, 50Hz, 1500Rpm, 0.8PF, IP23
4. Radiator: 40° C. Ambient temperature mounted on skid
5. Control Panel
6. Circuit breaker (Under 200KW generator set)
7. Primary muffler, Standard tools kit
8. Rubber isolator for engine, alternator and control panel
9. Battery, Battery cable, Battery tray and necessary accessaries
10. Base fuel tank for ten hours running (Under 200KW generator set)
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Similar products:
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Weichai power generator, and soundproof generator, movable generator etc, power range from 10kVA to 2000kVA.
|
Model |
GF-800 |
|
Output |
Prime |
Standby |
|
Genset power(kw) |
800 |
880 |
|
Genset power(kva) |
1000 |
1100 |
|
Engine power(kw) |
880 |
970 |
|
Engine model |
KTA38-G5 |
|
Engine brand |
CCEC Cummins |
|
Engine construction |
12 Cyliners, V type, 4 stroke,turbocharged, interwatercooled |
|
Engine cooling method |
Water box radiator for ambient temperature 40 °C , belt driven cooling fan with fan safety cover |
|
Governing system |
Electric governing system |
|
Starting method |
24V DC electric starting with silicon rectifier charging generator |
|
Engine filter system |
Dry air filter, double fuel filter, oil filter, cooling fluid filter |
|
Fuel system |
PT fuel pump, EFC electric governing |
|
Engine displacement(L) |
37.9 |
|
Compression ratio |
13.9:1 |
|
Bore*Stroke(mm) |
159*159 |
|
100% Load fuel consumption(L/h) |
199.4 |
221.7 |
|
Air flow (L/s) |
34950 |
|
Intake flow(gas consumption) |
1213 |
|
Exhaust flow(exhaust smoke level) |
3306 |
|
Exhaust temperature( °C ) |
513 |
|
Oil capacity(L) |
135 |
|
Cooling fluid capacity(L) |
258 |
|
Short-circuit protection |
MCCB air switch |
|
Rated voltage/frequence/power factor |
400V/230V, 0.8 lagging, 3 phase, 4 wire |
|
Alternator Model |
TWGII404E |
|
Rated Output(KW)(KVA) |
800 |
1000 |
|
Rated Voltage(V) |
400,415,440/200,220V 416,440,480/208,220,240 |
|
Frequency(HZ) |
50/60 |
|
Steady frequence variation rate |
0-5%changeable |
|
No load voltage adjustment range |
≥ 95%-105% |
|
Steady voltage regulation rate |
superior to ±1% |
|
Isolation/Protection |
H-class/IP23 |
|
Telephone impact factor/Harmonic wave factor |
TIF < 50/THF < 2% |
|
Excitation |
Brushless Excitation |
|
Voltage regulation |
Automatic/AVR |
|
Standard Accessories |
one set of Starting battery and connecting line; one set of exhaust bent pipe, ripple shock absorber,mulffer;one set of bottom shock absorber |
|
Genset Dimension(cm) |
20'ft container |
|
Genset Weight(kg) |
8500 |
