A wind turbine, which is installed on top of a tall tower, collects kinetic energy from the wind and converts it to electricity that is compatible with a home's electrical system.

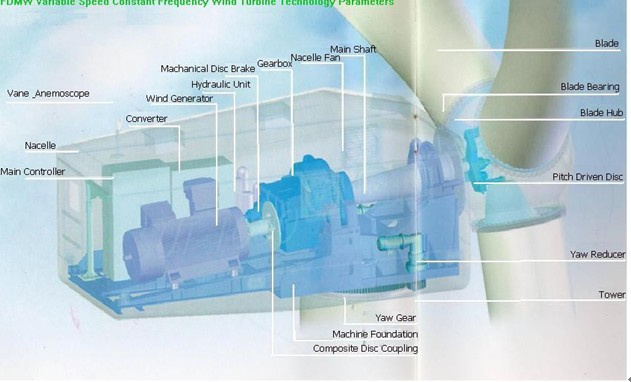

Our Megawatt wind turbine models from 1MW to 1.5MW, The design experience conceptual design, the system design, the structural design and the analysis, the design appraised that, the experimental simulation, processes and so on prototypical trial manufacturing, obtain a guarantor to post one's bail each step conform to the international standardized design requirement, designs the perfect excellent MW series Wind turbine can supply power for factory, power station, wind turbine farm, offshore wind power project, onshore wind power project etc.
Test and Assembly
1. Before wind turbine leave factory test project.
2. Hydraulic pressure station function experiment
3. Yawing system 500 hours continuous work test
4. Changes the prop pitch system function experiment
5. The transmission system centering tests
6. Transmission system continuous running coordination experiment
7. Master Control logical function test
8. Safety system function test
9. Generating system power control experiment.
Model | LDMG1 | LDMG1.5 |
Designed parameters | Rated power | 1MW | 1.5MW |
Power control | Variable speed and Pitch adjusted |
Rated wind speed | 13.5m /s | 12m /s |
Cut-in wind speed | 3.5m /s | 3.5m /s |
Cut-out wind speed | 25m /s | 25m /s |
security rank | IEC II A | IEC II A |
Designed lifespan | 20year | 20year |
Environment temperature | -30 ºC ~ +40ºC | -30 ºC ~ +41ºC |
Rotor | Number of blades | 3pcs | 3pcs |
Rotor diameter | 60.62m | 70.5m |
Hub apex height | 61.14m | 65.1m |
Rpm of rotor | 12-21.5rpm | 12-20rpm |
Sweep area | 2886 m² | 3904 m ² |
Blades | Blades length | 29.1m | 34m |
Blade model | NACA63-XX | DU-FFA-DU |
Material | GFR-Glass-fiber Reinforced Resin |
Weight | 4000KG | 4450KG |
Pitch-control system | Working way | Hydraulic driving/ crank-connecting rod & synchronous disc | electromotor pitch adjust, independently blades adjust |
Pitch –controlled bearing |
| 4-points double row angular contact ball slewing ring with inner ring gear |
Pitch adjusted rate | 7.5 /s-12.5 /s | 7.5 /s-12.5 /s |
Pitch adjusted angle range | - 2 -90 | -5 -89 |
Battery |
| lead acid, 250-300VDC |
Slip ring | 29 rows | 29 rows |
Gearbox | Type | One stage NGW planet gear/two stage cylindrical inclined | One stage planet gear/two stage parallel axis cylindrical inclined gear |
Inclined angle of main axis |
| 5 |
Ratio | 1:78.158 | 1:90 |
Oiling | splash lubricate/forced lubricate | mixed lubrication |
Mechanical brake | Position | high speed axis | high speed axis |
Working way | Fail safe spring brake, hydraulic brake | passive brake, spring locked, press and operate the brake |
Yawing system | Working way | Drive motors active yawing |
No. of motors | 2 units | 4 units |
Yawing axis | single row external gear 4 points contact ball bearing | double row external gear 4 points contact ball bearing |
Yawing brake | motor brake sticking, 6 hydraulic brake clips |
Generator | Type | Doubly-fed asynchronous wound generator |
Rotational speed | 937~1680rpm | 1000~1800rpm |
Rated voltage | 690V | 690V |
Frequency | 50Hz | 50Hz |
Seal rank | IP54 | IP54 |
Cooling | forced air cooling |
Converter | rotor-side converter, PWM Modulation IGBT |
Coupling | Model | KTR RADEX-N | KTR RADEX-N |
Max. deviation of alignment | 2 | 1.5 |
Dynamic balance rank | 6.3 | 6.3 |
Tower | Type | 2 sections tapered tubular steel tower | 3 sections tapered tubular steel tower |
Height | 57.19m | 63m |
Max. diameter | 3875mm | 4260mm |
Control system | Core processor | micro processor | ARM embedded system WP4000 |
Communication | Industry bus line | Industry bus line CAN Open |
Components | cabinet in generator case, cabinet under tower, power switch cabinet |
Weight | Turbine weight | 26 Tons | 30 Tons |
Generator case | 39.7 Tons | 50 Tons |
Tower weight | 78.6 Tons | 93.6 Tons |
Total weight | 144.3 Tons | 173.6 Tons |
Security system | Aerodynamic break Mechanical high speed axis associated brake; Equipotential lighting protection system; Manual yawing function | Full wind span electromotor pitch adjust aerodynamic brake; Mechanical high speed axis associated brake; Equipotential lighting protection system; Manual yawing function |
