1. Standard open type is good to working in engine room with ventilation system.
2. The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.
3. Standard soundproof type(IP21) will be working perfectly in the open air
4. All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.
5. All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.
6. 50ºC radiator
7. IP54 (soundproof sets), IP56 (control system)
8. Base fuel tank for at least 8 hours running
9. For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.
Technical Paremeters

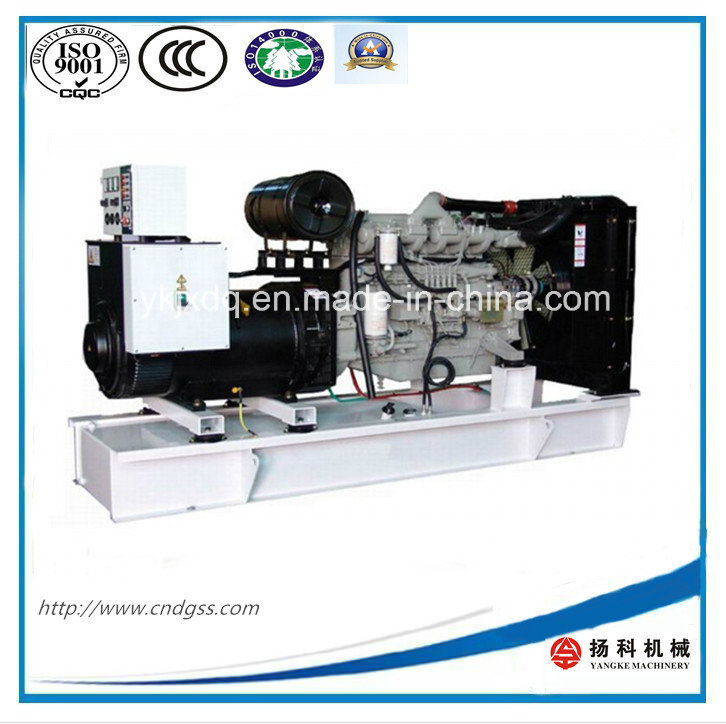

Generator set | Generator Model | QSDW-520 |
| Rating Power (KW/KVA) | 520/650 |
| rating Ammeter(A) | 631 |
| Diesel Engine | Engine Model | P222LE |
| Bore *Stroke (mm) | 128*142 |
| number of Cylinder & Configuration | 12 in line |
| Displacement(l) | 21.927 |
| Compression Ratio | 17:01 |
| Aspiration Type | Turbocharged & After-cooled |
| Cooling Type | Water cooled with Radiator |
| Total oil capacity(l) | 45 |
| Rating Fuel Consumption(l/h) | 205 |
| Governing Type | Electrics Governor |
| Alternator | Rating Voltage(V) | 400/230 |
| Alternator Model | EG355M-500N |
| Rating Capacity(KW/KVA) | 520/650 |
| Power Factor | 0.8 lagged |
| Exciting type | Brushless self-exciter, AVR |
| Voltage regulation | ±1% |
| No. of Phase | 3 phase 4 wire |
| Enclosure Class | IP21 |
| Class of Insulation | H |
| Dimension | Generator set dimension(LXWXH)(mm) | 3450*1390*1840 |
| Weight | Weight (kg) | 3500 |
Advantages of Diesel Generator Set Powered by Doosan Engine:
1. International Warranty Service
2. Short delivery time, as we always have Cummins engine in stock
3. With ISO9001&CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator, Marathon alternator or Chinese Aladdin alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load,75% load,100% load and 110% load
9. Both water cooled engine and air cooled engine for option
TP Power standard Configuration of Diesel Generator Set Powered by Doosan Engine
1) Doosan engine
2) Stamford alternator(Marathon, Mecc alte, Wattek brand for option)
3) Deepsea DSE6020 control panel
4) Chint circuit breaker
5) 8 Working Hours Base Fuel Tank (for the genset ≤ 650kVA prime, only Base Frame for other models)
6) Anti-Vibration Mounted System
7) Battery, battery charger and battery isolator switch
8) Industrial silencer and flexible exhaust hose
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
