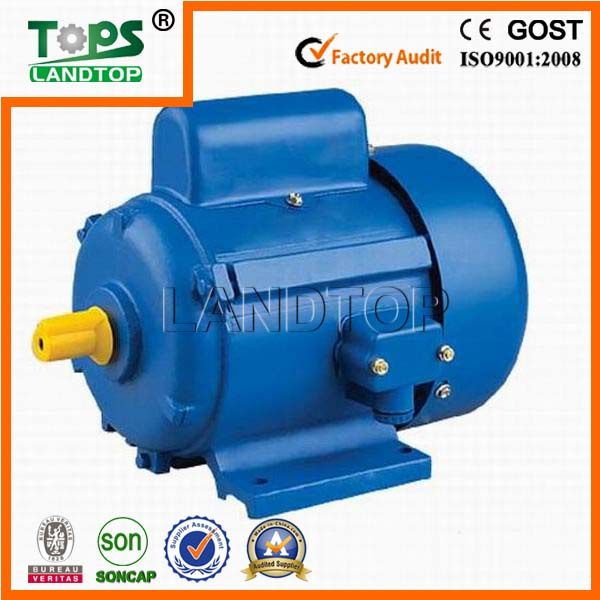

JY Series electric motor generator
JY Series Single-phase capacitor start motor. These motors are suitable for the situation that require the higher starting torque and the limited starting current. The motors can be used on driving all kinds of small machine that need full load starting. The motors of this series are totally enclosed and fan cooled, possess No. 09, No. 1 and No. 2 three frame size and with the starting capacitor on the top of the motor.
Operating Conditions:
Ambient temperature |
-15°c to 40 °c |
Altitude |
≤1000m |
Rated voltage |
220V, 230V, 240V, 110V, 115V, 120V, etc |
Rated frequency |
50HZ, 60HZ, 50HZ/60HZ |
Duty |
Continuous(S1) |
Insulation class |
Class B, Class F |
Protection class |
IP44, IP54, IP55 |
Cooling method |
IC0141 |
FAQ:
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C. O/A, DP acceptable
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicate do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc
We have single and three-phase electrical motor. ( 0.18kw-315kw ). (2, 4, 6 and 8 pole)
Please E-mail me if you need other model induction motor
| Technical data |
| Type | Output | Voltage | Freq. | Current | Power | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn |
| HP | KW | (V) | (Hz) | (A) | factor | (%) | (r/min) |
| JY09B-2 | 0.18 | 0.25 | 220 | 50 | 2.15 | 0.76 | 50 | 2800 | 3 | 6.5 | 1.8 |
| JY09A-2 | 0.25 | 0.34 | 220 | 50 | 2.82 | 0.76 | 53 | 2800 | 3 | 6.5 | 1.8 |
| JY1B-2 | 0.37 | 0.5 | 220 | 50 | 3.74 | 0.75 | 60 | 2800 | 3 | 6.5 | 1.8 |
| JY1A-2 | 0.55 | 0.75 | 220 | 50 | 5.36 | 0.74 | 63 | 2800 | 3 | 7 | 1.8 |
| JY2B-2 | 0.75 | 1 | 220 | 50 | 6.81 | 0.77 | 65 | 2800 | 2.8 | 7 | 1.8 |
| JY2A-2 | 1.1 | 1.5 | 220 | 50 | 9.45 | 0.79 | 67 | 2800 | 2.8 | 7 | 1.8 |
| JY09B-4 | 0.12 | 0.16 | 220 | 50 | 1.7 | 0.63 | 48 | 1400 | 2.8 | 7 | 1.8 |
| JY09A-4 | 0.18 | 0.25 | 220 | 50 | 2.52 | 0.65 | 50 | 1400 | 2.8 | 6.5 | 1.8 |
| JY1B-4 | 0.25 | 0.34 | 220 | 50 | 3.2 | 0.67 | 53 | 1400 | 2.8 | 6.5 | 1.8 |
| JY1A-4 | 0.37 | 0.5 | 220 | 50 | 4.03 | 0.72 | 58 | 1400 | 2.8 | 7 | 1.8 |
| JY2B-4 | 0.55 | 0.75 | 220 | 50 | 5.12 | 0.74 | 66 | 1400 | 2.8 | 7 | 1.8 |
| JY2A-4 | 0.75 | 1 | 220 | 50 | 6.9 | 0.76 | 68 | 1400 | 2.8 | 7 | 1.8 |
