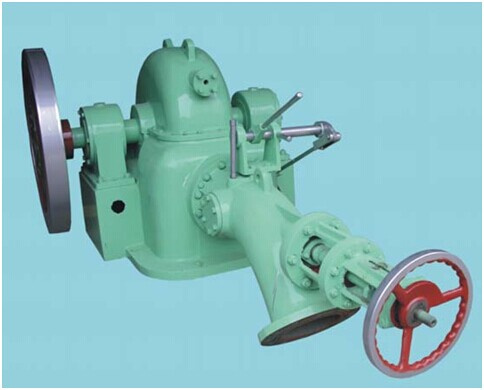

Impulse Type Hydro Turbine System

Stand Alone System/Box-type Micro Hydraulic Turbine

Type: XJ18-0.75DCT4-Z
Reted Head: 14-18m
Rated Flow: 5-8 l/s
Power: 0.75KW
Type: SF-0.75-4
Rated Power: 0.75KW
Rated Rotational: 1500r/min

Description

Water-wheel generator is driven by water-wheel machine, it equips with water-wheel machine of concussion type, inclination type, mixing-flowing type and bearing-flowing type, its installation structure is decided by model of water-wheel.
Small-capability water-wheel generator can supply power by a single machine solely, also it can supply power to near rural areas by combining many machines into electricity net, middle and large water-wheel generator combine with large electricity net. As water-wheel generator starts quickly, start and stop quickly, operation adjustment is relatively agile, so besides bearing load it is usually used to adjust peak and phase or as spare power for accident in power system.

Product introduction
Main traits of water-wheel generator is it has relatively big flywheel moment GD 2 and relatively high structural strength to bear extremely high rotate speed times, common rotate speed of middle-and-small-scale water-wheel generator is 1.6 times to 2.4 times of rated rotate speed. Water-wheel generator produced in our company accords with national standard manufacture of China as well as international IEC34-1, it can combine with various types of water-wheel machine.

No	Generator Model	Fall	Flow	permanent magnet alternator	Speed	Pipe diameter of assembly
		(m)	L/S	(w)	(r/min)	(mm)
1	LS-WZ-20-3KW	4	136	3000	1000	250
2	LS-WZ-20-5KW	6	151	5000	1500	300
3	LS-WZ-20-6KW	7	156	6000	1500	300
4	LS-WZ-20-8KW	9	161	8000	1500	300
5	LS-WZ-20-10KW	11	165	10000	1500	300
6	LS-WZ-13-1.5KW	5	60	1500	1500	250
7	LS-WZ-12-3KW	11	45	3000	1500	150
