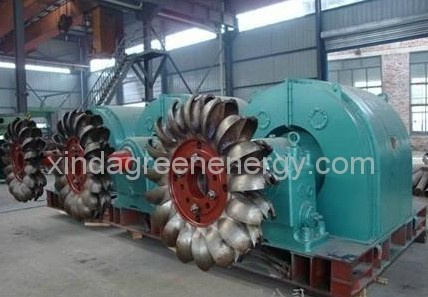

Impulse turbine is that it depends on the jet from the nozzle out of the circle along the tangent direction of the impact of runner runner leaves the Big Dipper and the acting company specializing in the production of the impulse turbine, 100m-800m for the head of the flow 0.07m3/s-2m3/s supporting the use of type Station.
| Turbine) |
|
|
|
|
|
|
|
|
|
| Type | Head(m) | Discharge(m/s) | Speed(r/min) | Power(kw) | Efficency(%) | generator | governor | Valve |
| HL100-WJ-60 | 66.20 | 0.76 | 750.0 | 435 | 88.0 | SFW400-8 | BWT-150 | D941X-1.0,φ500 |
| 76.10 | 0.82 | 1000.0 | 540 | 88.6 | SFW500-6 | D941X-1.6,φ500 |
| 88.60 | 0.88 | 685 | 89.5 | SFW630-6 | BWT-300 |
| 104.60 | 0.96 | 874 | 89.0 | SFW800-6 |
| 121.70 | 1.03 | 1085 | 88.0 | SFW1000-6 | Z945T-2.5,φ500 |
| HL100-WJ-71 | 70.80 | 1.10 | 750.0 | 686 | 89.5 | SFW630-8 | BWT-300 | D941X-1.6,φ600 |
| 83.60 | 1.20 | 874 | 89.0 | SFW800-8 |
| 97.70 | 1.30 | 1084 | 87.3 | SFW1000-8 |
| 111.40 | 1.38 | 1000.0 | 1345 | 89.0 | SFW1250-6 | BWT-600 |
| 130.50 | 1.50 | 1715 | 89.5 | SFW1600-6 | Z945T-2.5,φ600 |
| 151.50 | 1.61 | 2133 | 89.6 | SFW2000-6 |
| HL100-WJ-84 | 77.40 | 1.61 | 600.0 | 1090 | 89.0 | SFW1000-10 | BWT-600 | D941X-1.6,φ800 |
| 88.90 | 1.73 | 750.0 | 1346 | 89.2 | SFW1250-8 |
| 104.30 | 1.87 | 1716 | 89.5 | SFW1600-8 |
| 121.10 | 2.02 | 2130 | 89.8 | SFW2000-8 |
|
| 141.80 | 2.19 | 1000.0 | 2675 | 88.0 | SFW2500-6 | BWT-1000 | Z945T-2.5,φ800 |
| 164.30 | 2.35 | 3389 | 89.4 | SFW3200-6 |
|
| HL100-LJ-100 | 82.90 | 2.37 | 600.0 | 1719 | 89.3 | SF1600-10 | BWT-600 | D941X-16,φ800 |
| 95.70 | 2.54 | 2134 | 89.4 | SF2000-10 | BWT-1000 |
| 111.70 | 2.75 | 2674 | 88.8 | SF2500-10 |
| 130.10 | 2.97 | 750.0 | 3384 | 89.4 | SF3200-8 |
|
| 150.70 | 3.19 | 4219 | SF4000-8 | Z945T-2.5,φ800 |
| 174.70 | 3.44 | 5231 | 88.8 | SF5000-8 | BWT-1800 |
|
| HL100-LJ-120 | 88.40 | 3.52 | 500.0 | 2723 | 89.5 | SF2500-12 | BWT-1000 | D941X-1.6,φ800 |
| 102.20 | 3.79 | 3384 | 89.2 | SF3200-12 | BWT-1800 |
| 118.30 | 4.07 | 600.0 | 4215 | SF4000-10 | Z945T-2.5,φ800 |
| 136.30 | 4.37 | 5230 | 89.5 | SF5000-10 |
| 159.60 | 4.73 | 6567 | 88.8 | SF6300-10 |
| 186.40 | 5.11 | 750.0 | 8348 | 89.3 | SF8000-8 | BWT-3000 |
| HL100-LJ-140 | 96.20 | 5.00 | 428.6 | 4221 | 89.5 | SF4000-14 | BWT-1800 | D941X-1.6,φ1000 |
| 111.20 | 5.37 | 500.0 | 5229 | 89.5 | SF5000-12 |
| 129.20 | 5.79 | 6573 | 89.5 | SF6300-12 | BWT-3000 | Z945T-2.5,φ1000 |
| 152.40 | 6.29 | 600.0 | 8352 | 88.8 | SF8000-10 |
| 175.90 | 6.76 | 10438 | 89.5 | SF10000-10 | Q947F-4,φ1000 |
| 204.60 | 7.23 | 13035 | 89.1 | SF12500-10 | BWT-5000 |
| HL100-LJ-160 | 108.30 | 6.93 | 428.6 | 6572 | 89.3 | SF6300-14 | BWT-3000 | Z945T-2.5,φ1200 |
| 127.00 | 7.50 | 8345 | SF8000-14 |
| 147.30 | 8.08 | 500.0 | 10424 | SF10000-12 | BWT-5000 |
| 170.70 | 8.70 | 13033 | 89.5 | SF12500-12 |
| 202.00 | 9.46 | 600.0 | 16684 | 89.0 | SF16000-10 | Q947F-4,φ1200 |
| 233.50 | 10.17 | 20852 | 89.5 | SF20000-10 |
| HLSK1242a-WJ-60 | 70.50 | 0.88 | 750.0 | 539 | 89.0 | SFW500-8 | BWT-150 | D941X-1.6,φ600 |
| 81.70 | 0.94 | 1000.0 | 681 | 90.0 | SFW630-6 | BWT-300 |
| 95.40 | 1.02 | 865 | 90.6 | SFW800-6 |
| 110.00 | 1.10 | 1066 | 90.2 | SFW1000-6 |
