Hydro Francis Turbine
| Price: |
US $ 85000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

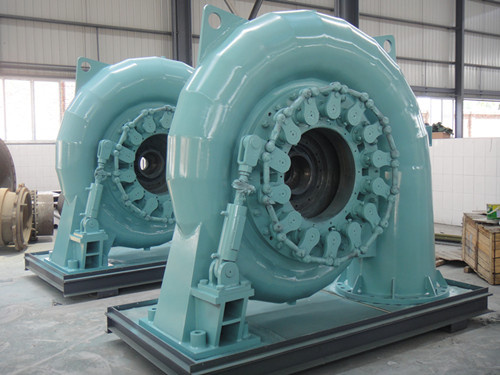

Hydro Francis Turbine
Francis turbine is a kind of turbine suit to water head 30-700meters and with certain suitable flow.
It could be divided into vertical and horizontal arrangement. Francis turbine
have the advantage of high efficiency, small size and reliable structure.
Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports.
Which is normally one stair arrangement. Simple structure, easier operation and maintainence.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case.
With adjustable guide vane, and stay ring etc parts, are suit to runner diameter bigger
than 1000mm. Our engineer will select the most suitable Francis turbine for your hydro power project.
1,Suitable water head : 30-700m
2, Output scope : 50Kw -20Mw
3, Runner diameter : 32cm -400cm
4,Runner material : stainless steel
5, Arrangement type : Vertical and Horizontal

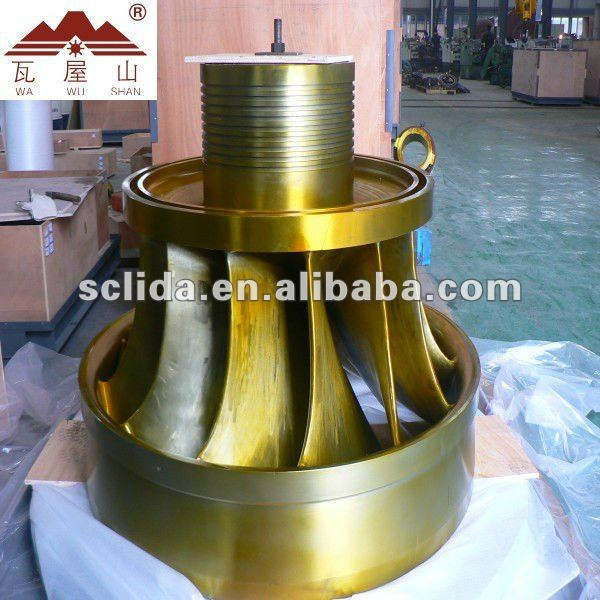

Francis runner
Francis runner material could be stainless steel or carbon steel. The upper crown, lower
ring, and blades are partial casted, polished, and then welded together. After heat
treatment and fine polished, the factory tests including static and dynamic balance test,
UT test, and dimension measurement. Our runners are guaranteed 100% all parameters
meet the requirement, and related regulation.
|
Name |
Horizontal Francis water turbine generator unit |
|
No. |
Item |
Specification |
|
1 |
Place of origin |
Sichuan, China (Mainland) |
|
2 |
Brand name |
Wa Wu Shan |
|
3 |
Color |
Green, blue & Orange |
|
4 |
Frequency |
50Hz, 60Hz |
|
5 |
Turbine capacity |
50-20000KW |
|
6 |
Generator connected |
Synchronous generator |
|
7 |
Service life |
30-50years |
|
8 |
MOQ |
1 set |
|
9 |
Payment terms |
L/C,T/T |
|
10 |
Delivery time |
6 months after 30% down payment |
|
11 |
Packing |
Packed in wooden case, complying with export packing standard |
|
12 |
Port |
Negotiation or required by the customers |
|
13 |
Inlet valve connected |
Electric butterfly valve or Hydraulic hammer butterfly valve |
|
14 |
Speed governor |
Speed governor with PLC interface |
|
15 |
Runner material |
ZG0Cr13Ni4Mo |
|
16 |
Supply ability |
150 set/year |
|
17 |
Exported area |
Turkey, Vietnam, Indonesia, Albania |
|
18 |
Superiority |
Wide range for different water head Easy operation Optimum efficiency up to 94% Stable operation up to 50 years R & D support ISO9001:2008 |
|
19 |
Model number |
Water turbine |
Synchronous generator |
|
HLA130-WJ-97 |
SFWE-K-5000KW-8/2150 |
|
HLA542-WJ-100 |
SFWE-K-3200KW-8 |
|
HLA575C-WJ-60 |
SFWE-K-1000KW-6/1180 |
|
HLA194-WJ-84 |
SFWE-K-3200KW-8/1730 |
|
HLD50-WJ-57 |
SFWE-K400-6/850 |
|
HLA708A-WJ-53 |
SFWE-K-400-6/850 |
|
HLD307C-WJ-64 |
SFWE-K1400-6/1180 |
|
HLA696-WJ-68 |
SFWE-K-2500KW-8/1730 |
|
HLA253-WJ-71 |
SFWE-K-3200KW-6/1730 |
| Prod Model: |
HLA550-WJ-62 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Runner Diameter: |
0.32-4m |
| Runner Material: |
Zg0cr13ni4mo |
| Water Head Available: |
30-700m |
| Power Capacity: |
50kw - 20mw |
| Power Grid Frequency: |
50 Or60Hz |
| Rotating Speed: |
1000rpm, 750, 600... |
| Service Life: |
30-50 Years |
| Qms: |
ISO9001-2008 |
| Certification: |
ISO |
| Automatic Grade: |
Automatic |
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.
Hongya Power Generating Equipment to Utilities Limited has obtained the certification of ISO9001/2008, SGS certificate and is the member of Chinese Society of Electrical Industry. Products are sold all over China and exported to Albania, Nepal, Indonesia, Turkey, Vietnam and Myanma, etc
Stepping into the past and looking forward to the future, we will continuously strengthen the innovation on products and techniques, strictly control the product quality and build up more perfect after-sale service system.
