Home Generator Products Francis Turbine/ Francis Water Turbine Generator Unit/ Small Water Turbine

Francis Turbine/ Francis Water Turbine Generator Unit/ Small Water Turbine

Francis Turbine/ Francis Water Turbine Generator Unit/ Small Water Turbine
Price: US $ 85000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Fracis turbine is now most widely used in the world taday with high efficiency, low cost and simple structure.

We have exported 19 francis turbines to other countries outside China to Indonesia, Nepal, Vietnam and Albania etc.

Wide range for different water head
Easy operation
Optimum efficiency up to 94%
Stable operation up to 50 years
R & D support
ISO9001: 2008
1. High efficiency to 95%
2. ISO9001-2008
3. Stable performance of 50 years
4. Easy installation and opertation
5. R&D support.

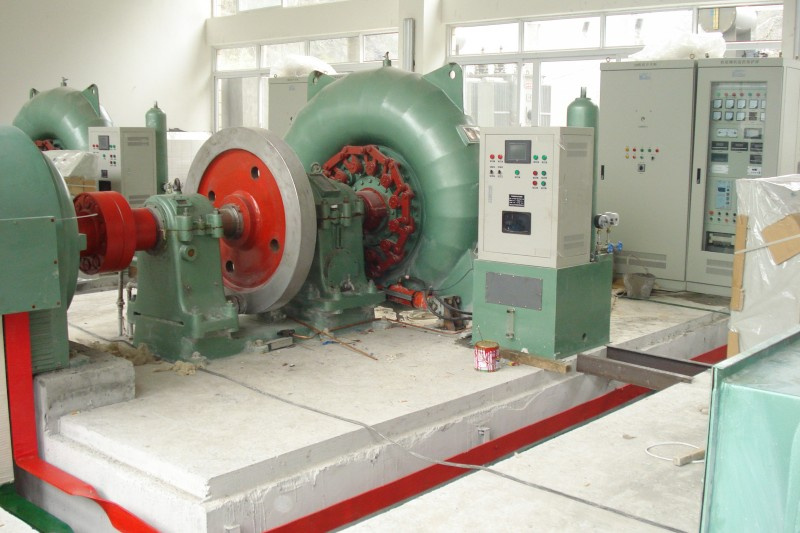

Name Horizontal Francis water turbine generator unit
No. Item Specification
1 Place of origin Sichuan, China (Mainland)
2 Brand name Wa Wu Shan
3 Color Green, blue & Orange
4 Frequency 50Hz, 60Hz
5 Turbine capacity 50-20000KW
6 Generator connected Synchronous generator
7 Service life 30-50years
8 MOQ 1 set
9 Payment terms L/C, T/T
10 Delivery time 6 months after 30% down payment
11 Packing Packed in wooden case, complying with export packing standard
12 Port Negotiation or required by the customers
13 Inlet valve connected Electric butterfly valve or Hydraulic hammer butterfly valve
14 Speed governor Speed governor with PLC interface
15 Runner material ZG0Cr13Ni4Mo
16 Supply ability 150 set/year
17 Exported area Turkey, Vietnam, Indonesia, Albania

18 Model number
Water turbine          Synchronous generator
HLA130-WJ-97      SFWE-K-5000KW-8/2150
HLA542-WJ-100    SFWE-K-3200KW-8
HLA575C-WJ-60    SFWE-K-1000KW-6/1180
HLA194-WJ-84      SFWE-K-3200KW-8/1730
HLD50-WJ-57        SFWE-K400-6/850
HLA708A-WJ-53     SFWE-K-400-6/850
HLD307C-WJ-64     SFWE-K1400-6/1180
HLA696-WJ-68       SFWE-K-2500KW-8/1730
HLA253-WJ-71       SFWE-K-3200KW-6/1730

Prod Model: HL220-WJ-84
Markets: South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Water Head: 54m
Design Flow: 5.808m³/S
Rated Output Capacity: 2500kw
Rotating Speed: 600rpm
Generator Synchronous: Sfw-2500-10/1730
Speed Governor: Glywt-1000 Pid&PLC
Inlet Valve Diameter: 1200mm
Warranty: One Year
Service Life: 30-50years
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.

Hongya Power Generating Equipment to Utilities Limited has obtained the certification of ISO9001/2008, SGS certificate and is the member of Chinese Society of Electrical Industry. Products are sold all over China and exported to Albania, Nepal, Indonesia, Turkey, Vietnam and Myanma, etc

Stepping into the past and looking forward to the future, we will continuously strengthen the innovation on products and techniques, strictly control the product quality and build up more perfect after-sale service system.
