Pelton Turbine/ EPC /Shpp
| Price: |
US $ 80000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Pelton Turbine/ EPC /SHPP
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.
Services offered
Small hydro power project consultant
Site management studies
Equipments Design
Hydroelectric equipemtns Manufacture
Project management
Installation guidance
Commission and start operation
Operation guidance
Hydroelectric equipments maintainence

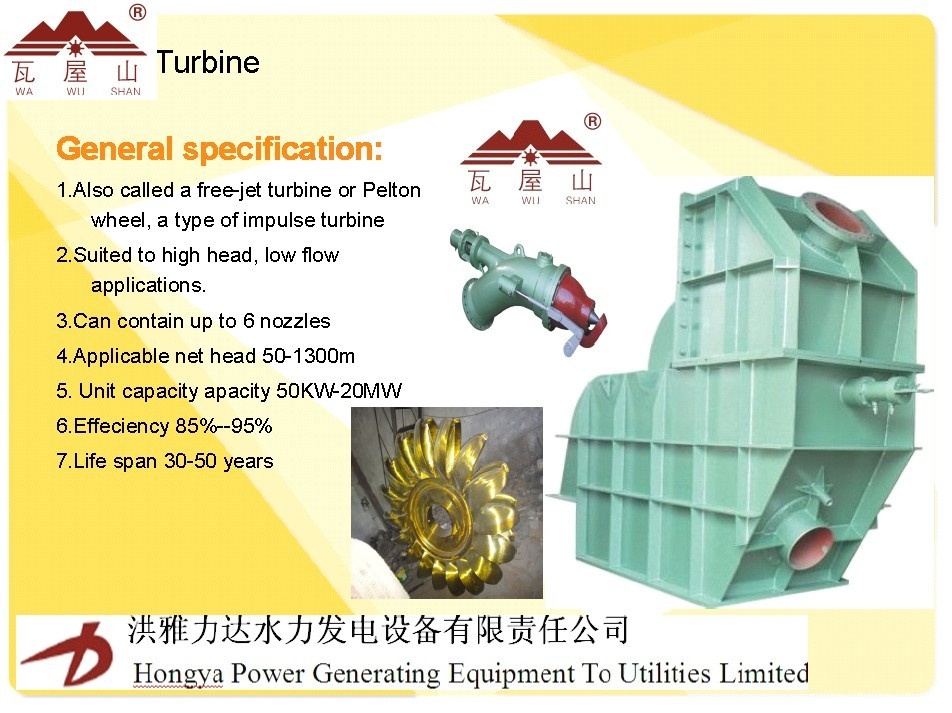

Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement,
nozzle numbersfrom one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10%
of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine
adopts vertical arrangement. Pelton turbine units are wildly used in mountain area all over the world, and well known by its
simple structure, less investment, high efficiency, and reliable long service life.
How to inquire our product?
1. please send us the detailed parameters of the HPP
A water head----- m
B flow------ m³/s
C Installed capacity--- KW
D frequency---- 50HZ or 60HZ
E Generator excitation-- static SCR excitation or brushless excitation
Those parameters will decide which type of turbine and generator best satisfy your water condition.
2. Tell us your requirements of the water turbine generator unit.
A Does special material required for the equipments?
B Does the unit controlled manually or by computer?
C What should be quoted in the proposal?
Mechanical and Electrical part? Swithyard?
To know more details, please don't be hesitant to contact us.
|
Turbine model |
water head |
design flow |
capacity |
speed |
generator model |
speed governor |
inlet valve |
|
CJA237-W-70/1X7 |
140 |
0.194 |
200 |
600 |
SFW200-10/850 |
CJWT-1 |
Φ300 |
|
|
260 |
0.264 |
500 |
1000 |
SFW500-
8/850 |
CJWT-1 |
Φ300 |
|
CJA237-W-90/1X7 |
400 |
0.327 |
1000 |
1000 |
SFW1000-6/1180 |
CJWT-1 |
Φ400 |
|
|
500 |
0.366 |
1567 |
1000 |
SFW1250-6/1430 |
CJWT-1 |
Φ400 |
|
CJA237-W-110/2X11 |
889-6639 |
0.86-1.6 |
124-497 |
375-750 |
|
CJWT-2 |
|
|
CJA237-W-125/2x9 |
735-6605 |
0.64-1.32 |
138-6000 |
375-750 |
|
CJWT-2 |
|
|
CJA237-W -115/1X13 |
338 |
0.38 |
1000 |
1000 |
SFW1000-6/1180 |
CJWT-1 |
|
|
CJA237-W-115/2X12 |
223.4 |
1.4 |
2500 |
500 |
SFW2500-12/2150 |
CJWT-2 |
|
|
CJA237-W-125/1X16 |
100-220 |
0.86-1.27 |
700-2500 |
300-500 |
|
CJWT-1 |
|
| Prod Model: |
CJA237-W-110/1X11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Runner Material: |
VOD Zg0cr13ni4mo |
| Runner Diameter Available: |
0.35-4m |
| Service Life: |
30-50 Years |
| Quality Guarantee: |
One Year Operation |
| Water Head Applicable: |
100-2000m |
| Shaft Arrangement: |
Horizontal or Vertical Shaft |
| Unit Capacity Available: |
Under 20mw |
| Certificate: |
SGS, BV, TUV, ISO9001 |
| Time For Delivery: |
3-5 Months |
| Nozzle Numbers: |
1-6 Nozzles |
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.
Hongya Power Generating Equipment to Utilities Limited has obtained the certification of ISO9001/2008, SGS certificate and is the member of Chinese Society of Electrical Industry. Products are sold all over China and exported to Albania, Nepal, Indonesia, Turkey, Vietnam and Myanma, etc
Stepping into the past and looking forward to the future, we will continuously strengthen the innovation on products and techniques, strictly control the product quality and build up more perfect after-sale service system.
