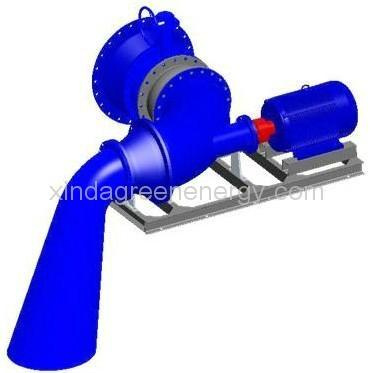

Horizontal shaft small turbine for low water head
There are in both vertical and horizontal shaft arrangement and can be vastly selected by the hydraulic power stations. With many years of our own experience and absorbing advanced technology from domestic and abroad sources, and in meeting ever growing requirements of stations for various hydraulic power resources, the manufacture and design level of Francis turbines made in Fuchun has been raised to new stages.
| No | Generator Model | Fall | Flow | permanent magnet alternator | Speed | Pipe diameter of assembly | G. W. | Packing Size |
|
| (m) | L/S | (w) | (r/min) | (mm) | (kg) | (cm) |
| 1 | LS-WZ-20-3KW | 4 | 136 | 3000 | 1000 | 250 | 330 | 130x65x88 |
| 100 | 60x45x38 |
| 2 | LS-WZ-20-5KW | 6 | 151 | 5000 | 1500 | 300 |
|
|
| 3 | LS-WZ-20-6KW | 7 | 156 | 6000 | 1500 | 300 |
|
|
| 4 | LS-WZ-20-8KW | 9 | 161 | 8000 | 1500 | 300 |
|
|
| 5 | LS-WZ-20-10KW | 11 | 165 | 10000 | 1500 | 300 |
|
|
| 6 | LS-WZ-13-1.5KW | 5 | 60 | 1500 | 1500 | 250 |
|
|
| 7 | LS-WZ-12-3KW | 11 | 45 | 3000 | 1500 | 150 | 140 | 142x65x60 |
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
