Spenification:

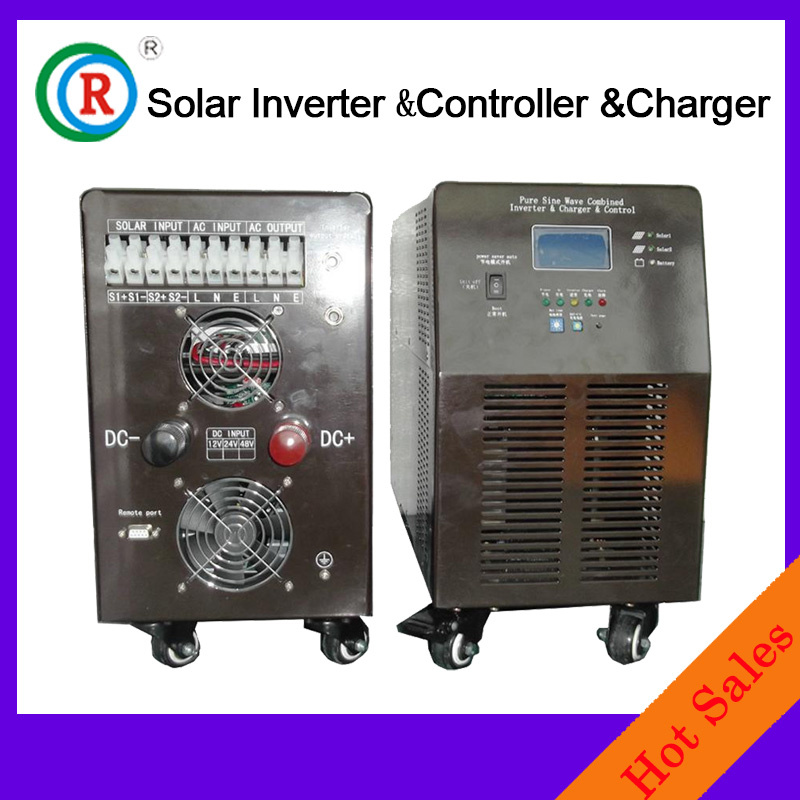

ORO Power solar / wind power inverters pure sine wave intelligent inverter;
Through the inverter power supply, 12V/24V / DC48V DC battery can be converted into 110V/220V AC Alternating Current, Used to power the load;
Solar power system consists of solar panel, Solar charge controller, inverter, battery and other components;
Can be divided into several types: Only the converter, Give priority to the use of solar energy, Give priority to the use of AC;
Solar power generation system for DC12V or DC24V or DC48V;
The core advantage:
CPU intelligent management,
Latest technical inverter,
Adopted best electric components, stable quality, long-life,
The high conversion efficiency( 90%-99%),
Low power consumption, 1W~6W under sleep state.
|
Model |
1000W |
|
DC Input |
1KW
1KWDC12V |
|
AC ouput |
AC220V & AC110V & AC100V & AC230V & AC240V (Select one) |
|
Nominal Output Frequency (Hz) |
50HZ & 60HZ(Automatic selection) |
|
UPS function |
Yes (Can give up the use ) |
|
AC charging function |
Yes (Can give up the use ) |
|
Utility Model Specifications |
|
|
AC220V |
AC110V |
|
Efficiency |
≥ 98% |
|
Input Wave Type |
Pure sine wave (utility or generator) |
Pure sine wave (utility or generator) |
|
Input Voltage Range |
AC 154V~AC263V |
AC 77V~132V |
|
Nominal Input Voltage |
220Vac/230Vac/240Vac |
110Vac/120Vac/130Vac |
|
Low Voltage shutoff |
154Vac± 4% |
77Vac± 4% |
|
Low Voltage Recovery |
164Vac ± 4% |
82Vac ± 4% |
|
Over voltage Shut off |
263Vac± 4% |
132Vac± 4% |
|
Over Voltage Recovery |
253Vac± 4% |
127Vac± 4% |
|
Nominal Input Frequency |
50Hz/ 60Hz (auto detect) |
50Hz/ 60Hz (auto detect) |
|
Output Wave Type |
Same as the input wave type |
Same as the input wave type |
|
Transfer Time (Ac to Dc) |
< 10ms |
< 10ms |
|
Transfer Time (Dc to Ac) |
< 5ms |
< 5ms |
|
Inverter Mode Specification |
|
Power Factor |
1 (Sufficient output power) |
|
Rated Output Voltage (V) |
220Vac/230Vac/240Vac |
110Vac/120Vac/130Vac |
|
Nominal Output Frequency (Hz) |
50/60 ± 0.3Hz (auto detect) |
|
Output Voltage Range |
± 10% rms |
|
Efficiency |
> 88% (DC12V: > 88%, DC24V: > 90%, DC48V: > 94%) |
|
Over-Load Protection |
(110%< load< 125%) ± 10%: Fault (shutdown output) after 15 minutes; |
|
(125%< load< 150%) ± 10%: Fault (shutdown output) after 10s; |
|
Load> 150% ± 10%: Fault (shutdown output) after 20s; |
|
Low Battery Alarm |
10.5Vdc ± 0.3Vdc (If 12V Input) |
|
21.0Vdc ± 0.6Vdc (If 24V Input) |
|
42.0Vdc ± 0.6Vdc (If 48V Input) |
|
Low DC input voltage automatic shut-down |
10.0Vdc ± 0.3Vdc(If 12V Input) |
|
20.0vdc± 0.6Vdc (If 24V Input) |
|
40.0vdc± 0.6Vdc (If 48V Input) |
|
High DC input voltage warning & outage |
16Vdc ± 0.3Vdc (If 12V Input) |
|
32Vdc ± 0.6Vdc (If 24V Input) |
|
64Vdc ± 0.6Vdc (If 48V Input) |
|
High DC input voltage Recover |
15.5Vdc ± 0.3Vdc(If 12V Input) |
|
31.0Vdc ± 0.6Vdc (If 24V Input) |
|
62.0Vdc ± 0.6Vdc (If 48V Input) |
|
Power-saving mode |
< 10W |
|
Power on mode |
20W~60W |
|
Safety |
CE, EMC, LVD, SGS, ISO9001 |
|
Communication port |
RS232 |
|
Cooling |
Cooling-Variable Speed Fan run under ventilation condition. |
|
Operating Temperature Range |
0° Cto 60° C |
|
Storage temperature |
-15º C~60º C |
|
humidity |
5% to 95% |
|
Noise |
Max 60dB |
|
Detailed parameters of electrified wire netting to battery charging |
|
Model |
Specification |
|
1012 |
1024 |
2012 |
2024 |
3012 |
3024 |
3048 |
4024 |
4048 |
5024 |
5048 |
6024 |
6048 |
|
Input voltage |
110Vac/120Vac/220Vac/230Vac |
|
Input voltage range |
88~127Vac/165~255Vac |
|
Output voltage |
Depend on the batter type |
|
Charge current |
35A |
20A |
65A |
35A |
75A |
45A |
30A |
35A |
35A |
35A |
40A |
75A |
50A |
|
Charging the inverter for intelligent charging; , The size of the charge current is determined by the: The regulation of the inverter\Capacity of the battery at\battery voltage |
|
Charge current correction |
± 5A |
|
Initial Charge Voltage |
Normal batteryvoltage 9.0 ~ 15.7V / 18.0 ~ 31.4V / 36.0 ~ 62.8V |
|
Charger short-circuit protection |
Circuit Breaker |
|
Circuit breaker |
10A |
20A |
30A |
40A |
|
Over voltage protection |
When the battery voltage > 15.7Vdc/31.4Vdc/62.8Vdc, every second sounds 0.5 second, it breaks down after 60 seconds. |
|
|
model |
Net weight
(KG) |
gross weight
(KG) |
product size
(L*W*H)MM |
package size
(L*W*H)MM |
|
|
|
1KW |
12 |
13 |
358*188*168 |
480*330*285 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For reference only, if there is a change without notice |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
If you want to purchase this product, Please make sure the following parameters. |
|
Power rating |
|
1KW, |
|
DC volts |
|
DC12V & DC24V & DC48V & DC36V |
|
AC volts |
|
AC110V & AC220V & AC100V & AC120V & AC230V & AC240V |
|
Frequency |
|
50HZ & 60HZ |
|
The UPS function |
|
YES & NO |
|
The use of occasions |
|
Solar & Wind & Car & Family expenses & Industrial use & other |
|
AC priority use & DC priority use |
|
AC priority use & DC priority use |
|
If DC priority use |
|
There are two kinds of programming: 1, every time itstarts, After the batteris is full, and then converted to DC supply. 2, After the batteris is 13.5V/27V/54V, and then converted to DC supply. |
|
AC charging function |
|
YES & NO |
|
Trade Terms |
|
EXW, FOB, FCA, FAS, CIF, CFR, DEQ, and so on |
|
Other description |
|
|
|
|
|
|
|
|
|
|
ORO-power was established in 2009 to provide affordable. Clean. Modern and sustainable renewable energy product. It aims to improve people living standards and to protect the environment. We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.
We started to do power business since 1990 with specializing in OEM and OEM production. Now we have our own brand and domestic, foreign sale centre. Our team is with advanced idea and good performance. So the product can fit for a kind of standards and national certification requirements for advanced power product. There are many different kinds of product. The product has sold to over 30 provinces in China. It involves in lectric power, fire protection, telecommunications, airports, highways, subways, radio and television, railways, the force, finance, hospitals, tunnels, construction, petrochemical and other industries.
The product has pass the ISO9001: 2000, CE, SGS and modern enterprise management standards. We have set up the specialized pre-sale, sale, after-sale technical support and services. The perfect solution will meet with customer's specific requirements after fully communication with customers. With strong technical force and advanced production management concept, we can timely provide customer with thoughtful services and creat well-known top brand in the industry.
