Home Generator Products 2014 Hot Sale High Quality Home Solar System Power Inverter

2014 Hot Sale High Quality Home Solar System Power Inverter

2014 Hot Sale High Quality Home Solar System Power Inverter
Price: US $ 280/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: T/T,Paypal

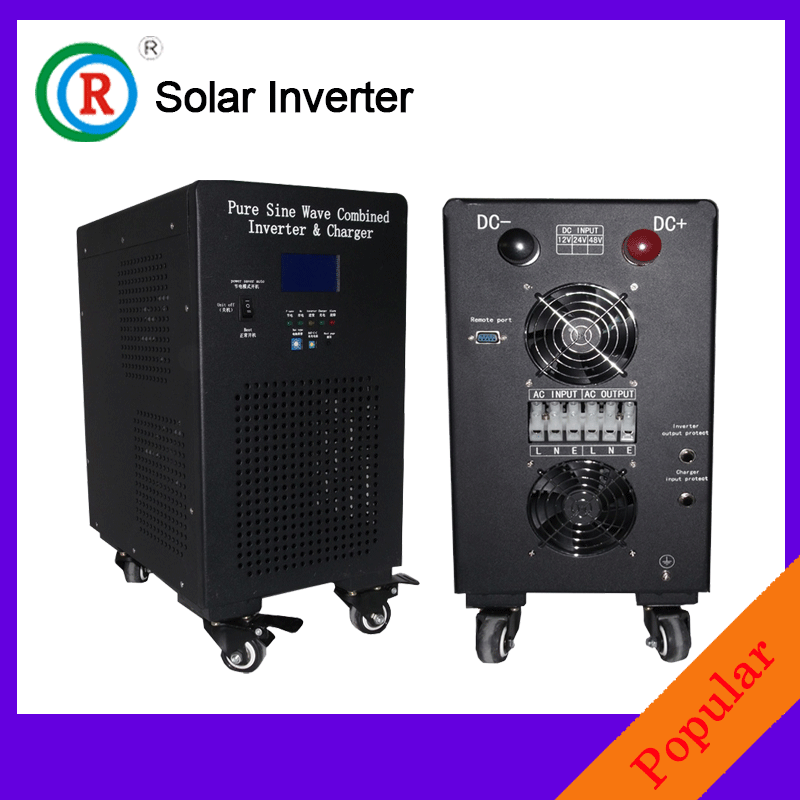

2014 Hot Sale High Quality home solar system Power Inverter

Product Information:

Alternative of solar / wind power off-grid inverter(built-in controller&battery) is pure sine wave intelligent inverter. Through the inverter power supply, DC 12v /24v /48v battery can be converted into AC 110v /220v, which used to the electronic products, such as water pump, air-condition, refrigerator etc. The solar power system consists of solar panel, solar controller, inverter, battery and other components.

According to used method can be divided into three types:
1. Only the converter;
2. Give priority to the use of solar energy;
3. Give priority to the use of AC.

You can customize the DC 36v inverter; Also can choose converting the AC 100v /AC 120v /AC 240v, which frequency is 50HZ /60HZ.
The product features of Solar / wind power inverter

1. Pure sine wave output;

2. Built-in transfer switch automatically transfers between inverter power and incoming AC power.

3. CPU management, intelligent control, module design.

4. LED/LCD display function;

5. High conversion efficiency (between 90%-98%)\/ low no load consumption.

6. Can match with all kinds of batteris, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.

7. Three-step intelligent charging mode available. It charges all kinds of batteries intelligently. And the maximum charging current is adjustable.
It also can be used as a charger.

8. This series inverter is also called dynamic inverter according to the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning. 2KW can drive 2P air conditioning, 3KW can drive3P air conditioning etc.

9. With adopting latest American low frequency circuit design, and new electronic materials, the whole system is more stable, low malfunction rate, long-life. It is no problem to use for more than 8 years under the normal use.

10. One year warranty plus life-time service.

11. Protection: High voltage protection
Under-voltage protection
Low-temperature shutdown
Automatic overload protection
Short-circuit protection

Core advantages:
1. CPU intelligent management,
2. Latest American technical inverter,
3. Adopted best electronic components, stable quality, long-life,
4. The high conversion efficiency( 90%-99%),
5. Low power consumption, 1W~6W under sleep state.

Why Choose ORO?
1. Absolutely prompt delivery time.
2. OEM/ODM Best Choice.
3. ORO takes cost saving into first consideration for long-term business relationship.

How to Order?
1. Please tell us the model and quantity and other request.
2. Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods, then tracking number will be sent by email.
4. We will help to track your goods until you receive them safely.

About quality and service
1. From raw materials to finished products, every process is tested and controlled professionally and strictly by our professional machines and person.
2. Except for the Standard components, if you has special request for the components, we can customize for you.

After-sale Service
1. Warranty: 12 moths for charger and accessories.
2. Anything damaged by machine itself, pls provide pictures or video for confirmation. New same goods will be offered during the warranty time.
3. Cooperate with the cheapest and safest shipping company.
4. Track the goods until you get the goods.

Price and Trade terms
1. MOQ: 5 sets, sample order is available.
2. Payment: T/T, PAYPAL
3. Delivery Time: Sample 1-2day, order 3-7days
4. OEM service: We can do your logo on the Packaging and e-cigarette body. 5. Shipping: DHL, UPS, EMS, TNT as requested.
Solar Inverter Mode Specification
Power Consumption 300W~12KW
DC input specification
Nominal  Voltage DC12/24/48/72V-AC220V DC12/24/48/72V-AC110V
Input Voltage Range(normal working voltage) 10V-16V  (DC12V)
20V-32V  (DC24V)
40V-64V  (DC48V)
60V-96V  (DC72V)
Low Battery Alarm(buzzer alarmwhen voltage is low ) 10.5Vdc ± 0.3Vdc (12V)
21.0Vdc ± 0.6Vdc (24V )
42.0Vdc ± 1.2Vdc (48V)
63.0vdc ± 1.8Vdc (72V)
Low Voltage shutoff(turn off when voltage is low) 10.0Vdc ± 0.3Vdc (12V)
20.0Vdc ± 0.6Vdc (24V)
40.0Vdc ± 1.2Vdc (48V)
60.0Vdc ± 1.8Vdc (72V )
Low Voltage Recovery(when voltage recovery,It will turn on) 12.0Vdc ± 0.3Vdc  (12V)
24.0Vdc ± 0.3Vdc  (24V)
48.0Vdc ± 0.3Vdc  (48V)
72.0Vdc ± 0.3Vdc  (72V)
Over voltage Shut off(when voltage is high,buzzer alar and system turn off) 16Vdc ± 0.3Vdc (12V )
32Vdc ± 0.6Vdc (24V )
64Vdc ± 1.2Vdc (48V )
96Vdc ± 1.8Vdc (72V)
Over Voltage Recovery(when voltage recovery,system turn on) 15.5Vdc ± 0.3Vdc (12V)
31.0Vdc ± 0.6Vdc (24V )
62.0Vdc ± 1.2Vdc (48V)
93.0Vdc ± 1.8Vdc (72V)
Efficiency ≥90%
Give priority to DC(voltage of battery lower than this,P-grid power load) 11Vdc ± 0.3Vdc (12V )
22Vdc ± 0.6Vdc (24V)
44Vdc ± 1.2Vdc (48V )
66Vdc ± 1.8Vdc (72V )
Give priority to DC(voltage of battery higher than this,battery power the load) 13.5Vdc ± 0.3Vdc (12V )
27.0Vdc ± 0.6Vdc (24V )
54.0Vdc ± 1.2Vdc (48V )
81.0Vdc ± 1.8Vdc (72V )
AC input specification
  220VAC 110VAC
Input Wave Type Pure sine wave (utility or generator) Pure sine wave (utility or generator)
Nominal Input Voltage 220Vac/230Vac/240Vac 110Vac/120Vac/130Vac
Low Voltage shutoff  180Vac±4% 85Vac±4%
Low Voltage Recovery 195Vac ±4% 90Vac ±4%
Over voltage Shut off 260Vac±4% 135Vac±4%
Over Voltage Recovery 255Vac±4% 130Vac±4%
Rule The three stages
  Constant current charging( Constant current stage) → constant voltage charging (constant voltage stage) → float charging (constant voltage stage)
Efficiency ≥98%
Transfer time(AC to DC)  <4ms
Transfer time(DC to AC) <8ms
AC output specification
Nominal output Voltage  220Vac/230Vac/240Vac 110Vac/120Vac/130Vac
Output Volatge Range ±10% rms
Nominal output Frequency (Hz) 50Hz ± 0.3Hz/60Hz ± 0.3Hz(automatic selection)
Power Factor 1.0
Output Wave Type Pure sine wave
Wave Form Deviation Factor ( THD ) ≤3%( Liner Load )
Dynamic Response( 0~100% ) 5%
Crest Factor( CF ) 3:1
Over-Load Protection(SMPS load) (110% (125% load>150% ±10% :Fault (shutdown output) after 20s
Other Description
Continuous Running Time Continuous Running Allowed
Power on mode ≤Nominal Power×2%
Power-saving mode ≤6W
Safety CE(EN62040-1)     EMC :EN62040-2, C2
Communication port RS232 / customize
Cooling Cooling-Variable Speed Fan run under ventilation condition.
Noise <60dB
Operating Temperature Range -10~+40
Storage temperature -25~+70
Humidity 0-95%relative humidity(No Condensation)
Altitude( m )  ≤5000(over1000 meters,Derated capacity in service )
Display LED light +LCD screen
The Alarm Way The buzzer alarm
Protection Under-Voltage Protection,Over-Voltage Protection,Over-temperature Protection,Short Circuit Protection,Electric Leakage Protection,Over-Load Protection,Lower Volatage Recover,High Voltage Recovery,temperature intelligent control,broken alarm
IP Grade IP20 / customize


Prod Model: INV-A1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 1 Year
Service: OEM/ODM Welcome
Package: Export Carton Packing
MOQ: 1set
Delivery Time: 7days
Brandname: Oro
System: Off-Grid system
ORO-power was established in 2009 to provide affordable. Clean. Modern and sustainable renewable energy product. It aims to improve people living standards and to protect the environment. We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.

We started to do power business since 1990 with specializing in OEM and OEM production. Now we have our own brand and domestic, foreign sale centre. Our team is with advanced idea and good performance. So the product can fit for a kind of standards and national certification requirements for advanced power product. There are many different kinds of product. The product has sold to over 30 provinces in China. It involves in lectric power, fire protection, telecommunications, airports, highways, subways, radio and television, railways, the force, finance, hospitals, tunnels, construction, petrochemical and other industries.

The product has pass the ISO9001: 2000, CE, SGS and modern enterprise management standards. We have set up the specialized pre-sale, sale, after-sale technical support and services. The perfect solution will meet with customer's specific requirements after fully communication with customers. With strong technical force and advanced production management concept, we can timely provide customer with thoughtful services and creat well-known top brand in the industry.
