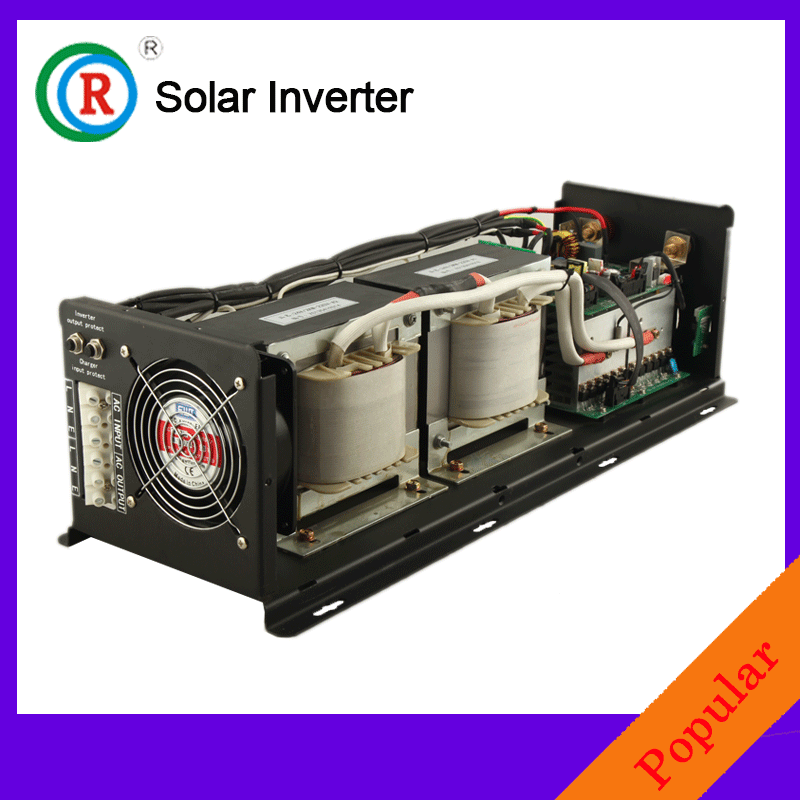

12/24V 220V 3.5kw Hybrid Wind and Solar Inverter Generator

12/24V 220V 3.5kw Hybrid Wind and Solar Inverter Generator
Price: US $ 382-393/Piece
Trade Terms: FOB,CIF,CIP
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
12/24v 220V 3.5kw Hybrid Wind and Solar inverter Generator

Product Information:
1: Pure sine wave frequency with copper transformer
2: 50/60hz selectable
3: RS232 communicate port or customrise
4: 9 battery types selectable
5: AC/DC selectable
6: Low Consumption 1-6 w
7: Low noise< 60db.

According to used method can be divided into three types:

1. Only the converter;
2. Give priority to the use of solar energy;
3. Give priority to the use of AC.

You can customize the DC 36v inverter; Also can choose converting the AC 100v /AC 120v /AC 240v, which frequency is 50HZ /60HZ.


Product Advantage:

1. CPU intelligent management;
2. Latest American technical inverter;
3. Adopted best electronic components, stable quality, long-life;
4. The high conversion efficiency reach to 90%-99%;
5. Low power consumption, when power is in 1W-6W, under sleep state.

Product Feature:

1. DC batteries is converted into AC pure sine wave output;

2. Built-in transfer switch automatically transfers between inverter power and incoming AC power.

3. CPU management, Intelligent control, module design;

4. LED / LCD display function;

5. The inverters' high conversion efficiency can reach to 90%-99%, and it has lower power consumption.

6. It can match with all kinds of batteries, such as sealed lead acid battery, open lead acid battery, gel battery and kinds of lithium batteries.
Attention please: If you want inverters to match the lithium batteries, you should tell me the lithium batteries specifications.

7. Three-step intelligent charging mode available. It charges all kinds of batteries intelligently, so can be used as a charger. And the maximum charging current is adjustable.

8. It is also called dynamic inverter that has the advantage of strong overload capacity. For example, 1KW model can drive 1P air conditioning, and 2KW can drive 2P air conditioning etc.

9. This kind of inverter adopts latest American low frequency circuit design and new electric materials. The whole system is more stable, low malfunction rate, and long-life. There is no problem to use for more than 5 years under the normally using.

10.1-year warranty plus life-time service.

11. Protection function:
(1) High voltage protection
(2) Under-voltage protection
(3) Over-temperature shutdown
(4) Automatic overload protection
(5) Short-circuit protection
Model4000W
DC Input
4KW DC12/24V
AC ouputAC220V & AC110V & AC100V & AC230V & AC240V (Select one)
Nominal Output Frequency (Hz)50HZ & 60HZ(Automatic selection)
UPS functionYes  (Can give up the use )
AC charging functionYes    (Can give up the use )
Utility Model Specifications

AC220VAC110V
Efficiency≥ 98%
Input Wave TypePure sine wave (utility or generator)Pure sine wave (utility or generator)
Input Voltage RangeAC 154V~AC263VAC 77V~132V
Nominal Input Voltage220Vac/230Vac/240Vac110Vac/120Vac/130Vac
Low Voltage shutoff154Vac± 4%77Vac± 4%
Low Voltage Recovery164Vac ± 4%82Vac ± 4%
Over voltage Shut off263Vac± 4%132Vac± 4%
Over Voltage Recovery253Vac± 4%127Vac± 4%
Nominal Input Frequency50Hz/ 60Hz (auto detect)50Hz/ 60Hz (auto detect)
Output Wave TypeSame as the input wave typeSame as the input wave type
Transfer Time (Ac to Dc)< 10ms< 10ms
Transfer Time (Dc to Ac)< 5ms< 5ms
    Inverter Mode Specification
Power Factor1 (Sufficient output power)
Rated Output Voltage (V)220Vac/230Vac/240Vac110Vac/120Vac/130Vac
Nominal Output Frequency (Hz)50/60 ± 0.3Hz (auto detect)
Output Voltage Range± 10% rms
Efficiency> 88%        (DC12V: > 88%, DC24V: > 90%, DC48V: > 94%)
Over-Load Protection(110%< load< 125%) ± 10%: Fault (shutdown output) after 15 minutes;
(125%< load< 150%) ± 10%: Fault (shutdown output) after 10s;
Load> 150% ± 10%:   Fault (shutdown output) after 20s;
Low Battery Alarm10.5Vdc ± 0.3Vdc (If  12V Input)
21.0Vdc ± 0.6Vdc (If  24V Input)
42.0Vdc ± 0.6Vdc (If  48V Input)
Low DC input voltage automatic shut-down10.0Vdc ± 0.3Vdc(If  12V Input)
20.0vdc± 0.6Vdc (If  24V Input)
40.0vdc± 0.6Vdc (If  48V Input)
High DC input voltage warning & outage16Vdc ± 0.3Vdc (If  12V Input)
32Vdc ± 0.6Vdc (If  24V Input)
64Vdc ± 0.6Vdc (If  48V Input)
High DC input voltage Recover15.5Vdc ± 0.3Vdc(If  12V Input)
31.0Vdc ± 0.6Vdc (If  24V Input)
62.0Vdc ± 0.6Vdc (If  48V Input)
Power-saving mode  < 10W
Power on mode20W~60W
SafetyCE, EMC, LVD, SGS, ISO9001
Communication portRS232
CoolingCooling-Variable Speed Fan run under ventilation condition.
Operating Temperature Range0° Cto 60° C
Storage temperature-15º C~60º C
humidity5% to 95%
NoiseMax 60dB
Detailed parameters of electrified wire netting to battery charging
ModelSpecification
1012102420122024301230243048402440485024504860246048
Input voltage110Vac/120Vac/220Vac/230Vac
Input voltage range88~127Vac/165~255Vac
Output voltageDepend on the batter type
Charge current35A20A65A35A75A45A30A35A35A35A40A75A50A
Charging the inverter for intelligent charging; , The size of the charge current is determined by the: The regulation of the inverter\Capacity of the battery at\battery voltage
Charge current correction± 5A
Initial Charge VoltageNormal batteryvoltage  9.0 ~ 15.7V  /  18.0 ~ 31.4V  /  36.0 ~ 62.8V
Charger short-circuit protectionCircuit Breaker
Circuit breaker10A20A30A40A
Over voltage protectionWhen the battery voltage > 15.7Vdc/31.4Vdc/62.8Vdc, every second sounds 0.5 second, it breaks down after 60 seconds.

modelNet weight
(KG)
gross weight
(KG)
product size
(L*W*H)MM
package size
(L*W*H)MM






























4KW3637.5622*188*168  730*330*285















For reference only, if there is a change without notice




















If you want to purchase this product, Please make sure the following parameters.
Power rating
4KW
DC volts
  DC24V
AC volts
AC110V & AC220V & AC100V & AC120V & AC230V & AC240V
Frequency
50HZ & 60HZ
The UPS function
YES & NO
The use of occasions
Solar & Wind & Car & Family expenses & Industrial use & other
AC priority use & DC priority use
AC priority use & DC priority use
If  DC priority use
There are two kinds of  programming: 1, every time itstarts, After the batteris is full, and then converted to DC supply. 2, After the batteris is 13.5V/27V/54V, and then converted to DC supply.
AC charging function
YES & NO
Trade Terms
EXW, FOB, FCA, FAS, CIF, CFR, DEQ, and so on
Other description









Prod Model: INV-A1-3.5kw
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Grade: High -Quality/Intelligent Control
Product Type: Pure Sine Wave Inverter
Industry: Manufacturer
Color: Black/Grey
Product Name: Oro Power
Frenquency: 50/60Hz Automatic Switch
Output Voltage: 220V
Service: OEM/ODM Welcome
Payment: T/T or Paypal
Input Voltage: 12/24V
Power Source: Solar Power
Type: DC/AC Inverters
Phase: Single
Output Power: >1000W
Brand: Oro
Application: Home/Industry/Military
ORO-power was established in 2009 to provide affordable. Clean. Modern and sustainable renewable energy product. It aims to improve people living standards and to protect the environment. We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.

We started to do power business since 1990 with specializing in OEM and OEM production. Now we have our own brand and domestic, foreign sale centre. Our team is with advanced idea and good performance. So the product can fit for a kind of standards and national certification requirements for advanced power product. There are many different kinds of product. The product has sold to over 30 provinces in China. It involves in lectric power, fire protection, telecommunications, airports, highways, subways, radio and television, railways, the force, finance, hospitals, tunnels, construction, petrochemical and other industries.

The product has pass the ISO9001: 2000, CE, SGS and modern enterprise management standards. We have set up the specialized pre-sale, sale, after-sale technical support and services. The perfect solution will meet with customer's specific requirements after fully communication with customers. With strong technical force and advanced production management concept, we can timely provide customer with thoughtful services and creat well-known top brand in the industry.
