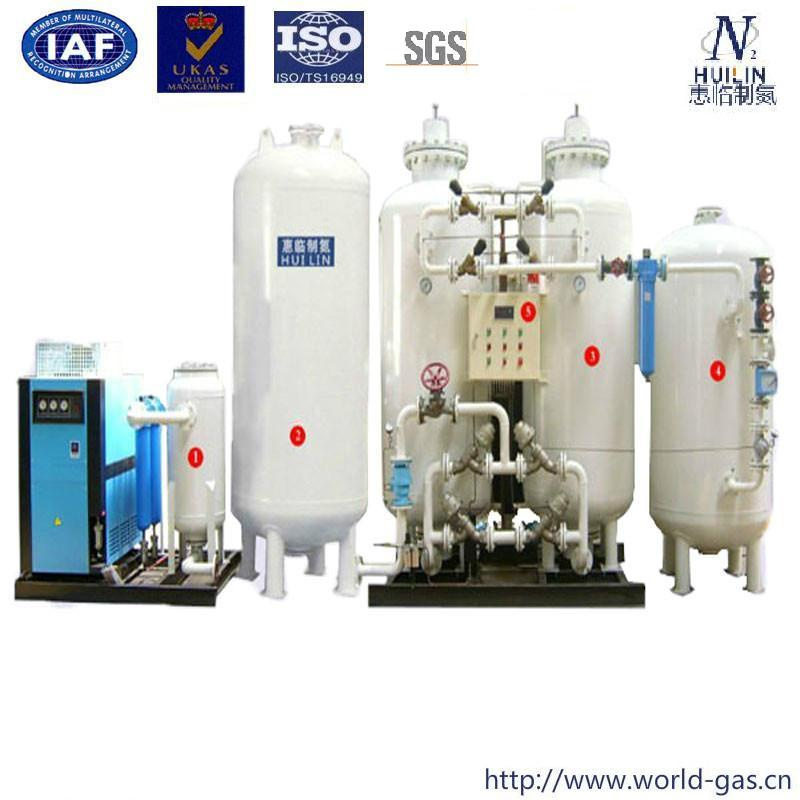

Energy-saving Nitrogen Gas Generator
1)high purity
2)exellent energy-saving
3)smoothly running, long-life
4)automatic operating
Principles
N2 and O2 all have a quadrupole, for the reason that the quadrupole of N2 is bigger than the quadrupole of O2, the adsorption capacity by molecular sieve to N2 is stronger than O2. When the compressed air in certain pressure flow through adsorption bed formed by molecular sieve, the N2 gas is absorbed and O2 is obtained by separation.
The main part of O2 generator is two towers filled with molecular sieve, when the compressed air get into adsorption tower, the N2 is absorbed by molecular sieve, O2 is produced from the export terminal. When one tower produces O2, another tower release the N2 by reducing the pressure to get the renewable desorption of carbon molecular sieve. Two towers alternate adsorption and regeneration to output O2 continuously.
Application Overviews
In the reflow soldering of SMT, nitrogen gas is charged into reflow furnace. The following advantages of soldering are listed in the nitrogen atmosphere:
1. The quality of soldering is enhanced with the prevention of surface oxidation.
2. The flux is guaranteed to the correct activation.
3. The surface of soldering is more handsome.
Competitive Advantage
1. Reliability of operations second to none
2. Customized design
3. Lower cost
4. Excellent after sales services
5. High efficiency operation
6. Automated unattended operation
7. Remote monitoring and control available
8. Minimal space requirements
9. Long-term commitment to R&D
10. Your own independent on-site supply of nitrogen
11. Proprietary CMS with long life time and excellent performance
12. Cabinet, skidded, containerized on-site nitrogen generator systems available
The purpose of the nitrogen generator in other industry
. Chemical Manufacturing
. Lase Cutting
. Tire Filling
. Pharmaceutical
. Marine
. Electronics
. Food Processing & Packaging
. Plastic
. Heat Treatment
. Others
| Model | N2 Flow(Nm3/h) | N2 Purity (%) | Pressure(Mpa) | Dew Point |
| WG-SMT-30 | 30 |
≥99.99%
|
Input Pressure
-0.2
|
≤-40
|
| WG-SMT-60 | 60 |
| WG-SMT-120 | 120 |
| WG-SMT-180 | 180 |
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.
In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.
Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
