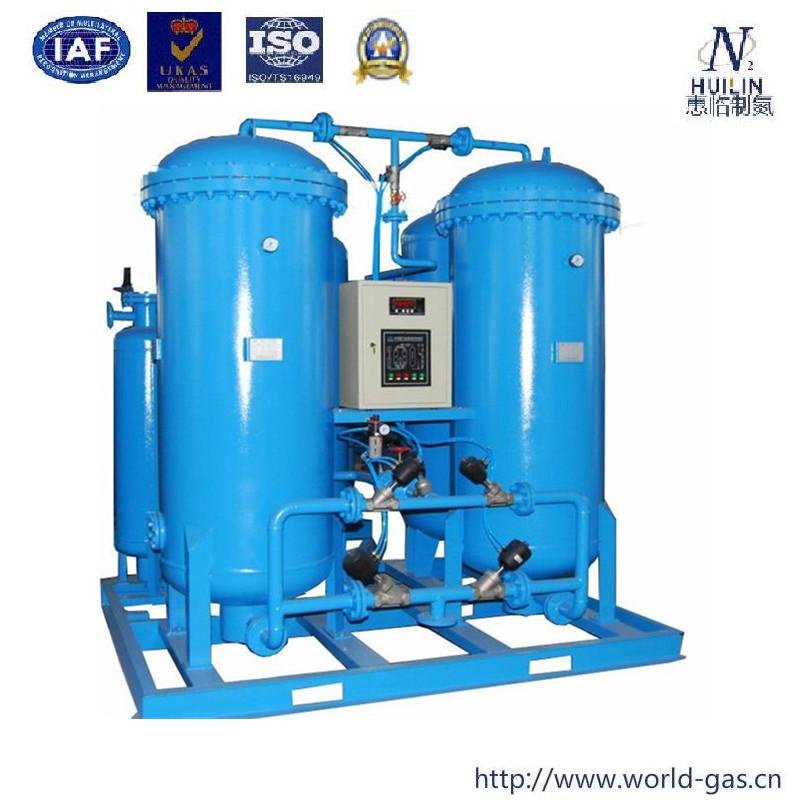

High Purity Nitrogen Generator
1)high purity
2)exellent energy-saving
3)smoothly running, long-life
4)automatic operating
Principles
Nitrogen generator based on clean compressed air, carbon molecular sieves is absorbent, take PSA(pressure swing adsorption) principle make Nitrogen under the normal temperature. According to Oxygen, Nitrogen they are different in absorbent face and diffusivity, through PLC control the valve, realizing compression absorbing, reduce pressure desorption this course, reach Oxygen, Nitrogen separation, get the standard nitrogen. Competitive Advantage
1.High purity, and the purity of N2 could be regulated between 95% to 99.999% according as user's need;
2.High efficiency, low energy consumption of compressed air;
3.Standard models, nitrogen generator could be parallel for additional nitrogen output;
4.Low dew point, dew point of product ≤ -40 °C to ensure the quality of welding;
5.Available frame, appearance clean and easy cleaning management to meet the high cleanliness requirement of electronics industry.
Universal nitrogen generator usage
1.Nitrogen produced by this PSA generator can be uses as the protective gas in heat treating process;
2.Chemical industry production, nitrogen filled for purification in all kinds of storage tank and pipeline;
3.Gas for production of rubber and plastic products;
4.Oxygen exclusion and keeping food fresh in food industry package;
5.Purification and blanket gas in beverage industry;
6.Nitrogen filled for package and exclusion of oxygen for container in pharmaceuticals industry;
7.As protective gas in the process of producing electronic component and semiconductor in electronic industry
Model
|
N2 Purity (%) |
N2 Output (Nm3/hr) |
N2 Pressure
|
Dew Point |
WG-STD97 |
97 |
5-3000 |
Input Pressure:
-0.2Mpa
|
≤-45 o C |
WG-STD98 |
98 |
4-2500 |
WG-STD99 |
99 |
3-2100 |
WG-STD295 |
99.5 |
2-1800 |
WG-STD39 |
99.9 |
1.5-1300 |
WG-STD49 |
99.99 |
1-800 |
WG-STD495 |
99.995 |
1-750 |
WG-STD59 |
99.999 |
0.5-500 |
WG-STD595 |
99.9995 |
0.5-400 |
Guangzhou Huilin Air Separation Equipment Co., Ltd. is a hi-tech company devoting all spirit to developing and producing various sorts of living gas generator. Maily business include producing&maketing gas separation system, renting out gas generator.
In normal-temperature air separation field, our technology is keeping ahead in the world, there are many original technology and craft, like high density nitrogen equal pressure technology, uniform distribution of gas flow technology, unique clamping cylinder technology etc. Strong reliability, stability and energy conservation are the characters of HUILIN units. Our equipment can general work last everyday in a year and every hour in a day. Invariable purity and flow has kept in ten years continuous running. Producing equivalent purity and flow gas, 10~20% compressed air could be saved by our machine.
Since company set up, offered all kind of specifications, purity N2/O2 generator. Excellent quality, favorable service and perfect management get widely estimation.
