1.International Warranty Service
2. Short delivery time
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
5. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load

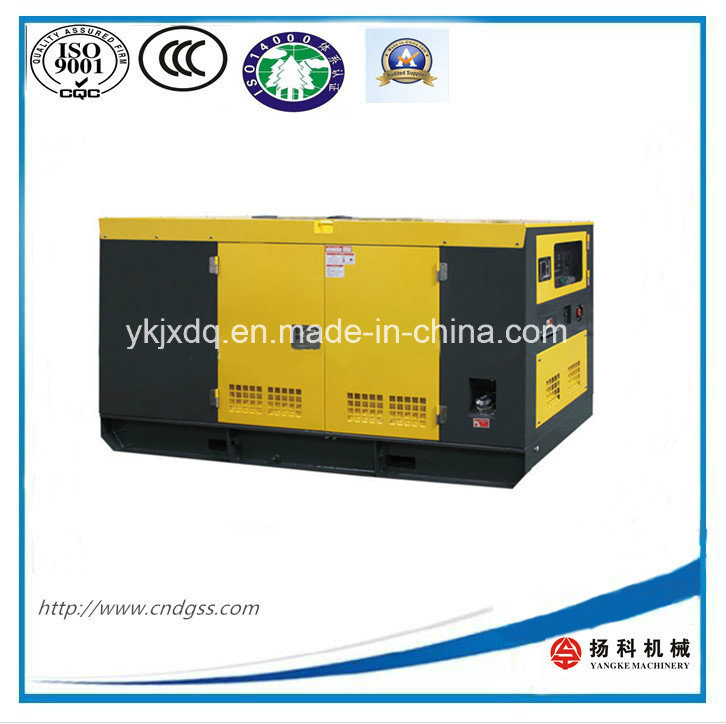

Features of Diesel Generator Set Powered by Yuchai Engine:
1. Standard open type is good to working in engine room with ventilation system.
2. The super silent model (up to 50kw) has electronic cooling fan and special design low noise level canopy. which is specialized for low noise level environment, such as office building, villa, museum.
3. Standard soundproof type(IP21) will be working perfectly in the open air
4. All standard type can be working in 3rd explosive area for mining industry, special design will be suitable for 2nd explosive area.
5. All functional components are modular design, for fast repair, replace, and reduce stock, which can satisfy rental business.
6. 50ºC radiator
7. IP54 (soundproof sets), IP56 (control system)
8. Base fuel tank for at least 8 hours running
9. For friendly experience, all I/O control interface and daily maintenance parts are combined in one side.
| Technical data |
| Genset Model | QSY-180 |
| Prime Power | 180KW/225KVA |
| Rated Voltage | 400/230V |
| Frequency | 50/60Hz |
| Power Factor | 0.8(lagging) |
| The regulating rate of steady voltage | ≤±0.5% |
| The regulating rate of instantaneous voltage | ≤-15%/ +20% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤1.0% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±10% |
| The time of steady frequency | 3sec |
| Dimension (L×W×H) (mm) | 2620*1020*1500 |
| Genset weight (kg) | 2000 |
| Diesel Engine |
| Brand | Yuchai |
| Model |
YC6M285L
|
Number of Cylinders | 6 |
| Rotating Speed | 1500/18000RPM |
| Cycle | Four stroke |
| Type | waste gas turbine boost,direct spurting type |
| Bore×Stroke(mm) | 120*145 |
| Displacement(L) | 6.871 |
| Lubricating Capacity(L) | 16 |
| Speed Governor | Electrical |
| Cooling System | Water-cooled |
| Speed Stability (%) | ≤5% |
| Fuel Consumption at 100% Load | ≤200g/kw.h |
| Starting Method | DC24V Electrical starting |
| Alternator |
| Brand | ISUZU |
| Model | ISG274J |
| Number of Phase | 3 |
| Connecting Type | Three Phase and Four Lines |
| Number of Bearing | 1 |
| Grading Protection | IP22 |
| Altitude | ≤1000m |
| Exciter Type | Brushless (AVR automatic voltage regulating) |
| Insulation Class | H degree |
Packaging & Delivery
| Packaging Detail: | generator standard exporting package |
| Delivery Detail: | within 5-25working days after the deposit |
Company Information
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.
FAQ:
(1) Your company is factory or Trade Company?
Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2) Your diesel generator power range?
Answer: Now we mainly produce QS series 8-3000kva brushless alternators,
(3) Which brand Electrical Generator you produce?
Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com
Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.
Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.
With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000kVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.
We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our company has been an accredited manufacturer who obtained the authentication of National Inspection and Supervision Center of Gas engine and Generating Sets since 2000, and passed the CE Certificate, the quality system certification of ISO9001-2008 Environment and ISO14001-2004.
We can provide a variety of specifications automated, automatic cut over, soundproof and mobile on high quality. The low energy consumption power set satisfies the customer's all electric power demand. We also can satisfy the user with different voltage and different frequency request, as well as networking power supply system.
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.
