Principle of operation
It is a filter together with cyclone separation, coarse filtration and fine filtration t. It cuts off the oil and water in compressed air directly. When it goes through cyclone separation, gravity settlement, cruder filet, fine filter layer filet, the oil, water and dust in compressed air can be removed thoroughly. The filtering precision of compressed air gone through this filter can arrive to 0.1μ M, and the quantity of residual oil is less than 0.1PPm.
Basic operation principle

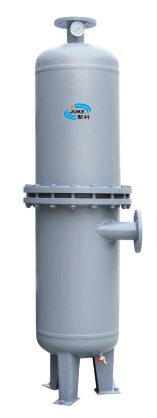

High-efficiency oil remover consists by upper shell, lower shell, middle tray, oral separator, filtered components, fine filtering component, meter and pollution discharge components.
|
Model |
Rated amount of |
Inlet and outlet caliber |
Size |
Weight |
|
gas processing |
DN (mm) |
(kg) |
|
(Nm3/min) |
|
φ1 |
φ2 |
H |
H1 |
H2 |
A |
B |
|
|
KLY_1.6/8 |
1.6 |
25 |
Φ159 |
Φ150 |
858 |
434 |
160 |
155 |
80 |
55 |
|
KLY_3/8 |
3 |
32 |
Φ159 |
Φ150 |
1010 |
475 |
160 |
160 |
90 |
85 |
|
KLY_6/8 |
6 |
40 |
Φ219 |
Φ210 |
1190 |
565 |
140 |
160 |
85 |
98 |
|
KLY_12/8 |
12 |
50 |
Φ273 |
Φ260 |
1420 |
675 |
140 |
210 |
105 |
128 |
|
KLY_20/8 |
20 |
65 |
Φ300 |
Φ300 |
1560 |
740 |
125 |
265 |
140 |
145 |
|
KLY_30/8 |
30 |
80 |
Φ350 |
Φ350 |
1570 |
710 |
180 |
270 |
100 |
170 |
|
KLY_40/8 |
40 |
100 |
Φ400 |
Φ400 |
1660 |
770 |
180 |
295 |
115 |
250 |
|
KLY_60/8 |
60 |
125 |
Φ500 |
Φ500 |
1790 |
860 |
160 |
350 |
155 |
340 |
|
KLY_80/8 |
80 |
150 |
Φ600 |
Φ600 |
1700 |
745 |
175 |
390 |
170 |
376 |
|
KLY_100/8 |
100 |
150 |
Φ600 |
Φ600 |
1885 |
850 |
180 |
400 |
220 |
395 |
|
KLY_150/8 |
150 |
200 |
Φ700 |
Φ700 |
1950 |
930 |
180 |
450 |
210 |
550 |
|
KLY_200/8 |
200 |
250 |
Φ800 |
Φ800 |
2240 |
1175 |
250 |
660 |
240 |
645 |
|
KLY_250/8 |
250 |
250 |
Φ1000 |
Φ1000 |
2250 |
1150 |
250 |
650 |
360 |
695 |
|
KLY_300/8 |
300 |
300 |
Φ1100 |
Φ1100 |
2275 |
1180 |
250 |
700 |
380 |
750 |
