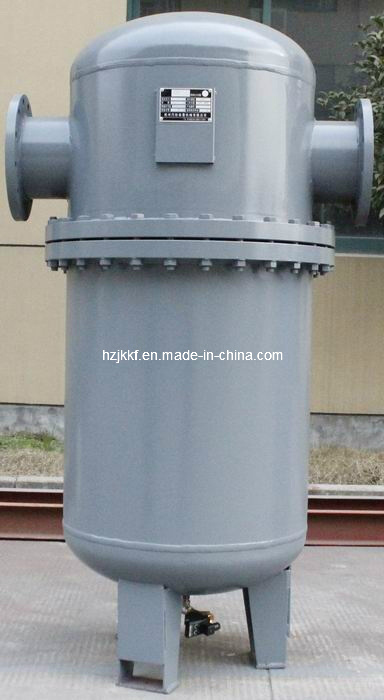

Principle of operation
The precision filter mainly removes oil, liquid water mist, dust in compressed air. This series of products have three characteristics, they are high efficiency, convenient to use and low operating cost. This product is divided into C, T and A three grades according to different stages. The filtering precision of grade C is less than 3μ M except for 99.9 percent of moisture at free state, the filtering precision of grade T is less than 1μ M except for 99.99 percent of moisture at free state, and the filtering precision of grade A is less than 0.01μ M except for 99.999 percent of moisture at free state.
Technology index
LOperating pressure: 0.6-1.0Mpa(According to the requirement to provide1.0-3.0Mpa)
LInlet gas temperature: ≤ 50° C
LPressure loss: ≤ 0.02Mpa
LFiltering precision: Grade C(3μ M), Grade T(1μ M), Grade A(0.01μ M)
|
Model |
Rated amount of |
Inlet and outlet caliber |
Size |
Weight |
|
gas processing |
DN(mm) |
(mm) |
(kg) |
|
(Nm3/min)) |
|
|
|
|
KAL-1.6/8 |
1.6 |
DN25 |
Φ133*415 |
23 |
|
KAL-3/8 |
3 |
DN32 |
Φ133*610 |
28 |
|
KAL-6/8 |
6 |
DN40 |
Φ159*720 |
56 |
|
KAL-12/8 |
12 |
DN50 |
Φ159*780 |
62 |
|
KAL-20/8 |
20 |
DN65 |
Φ219*1140 |
86 |
|
KAL-30/8 |
30 |
DN80 |
Φ219*1195 |
98 |
|
KAL-40/8 |
40 |
DN100 |
Φ300*1210 |
110 |
|
KAL-60/8 |
60 |
DN125 |
Φ450*1510 |
130 |
|
KAL-80/8 |
80 |
DN150 |
Φ500*1510 |
180 |
|
KAL-100/8 |
100 |
DN150 |
Φ500*1550 |
240 |
|
KAL-150/8 |
150 |
DN200 |
Φ500*1720 |
320 |
|
KAL-200/8 |
200 |
DN250 |
Φ700*2085 |
505 |
|
KAL-250/8 |
250 |
DN250 |
Φ700*2150 |
550 |
|
KAL-300/8 |
300 |
DN300 |
Φ800*2150 |
610 |
