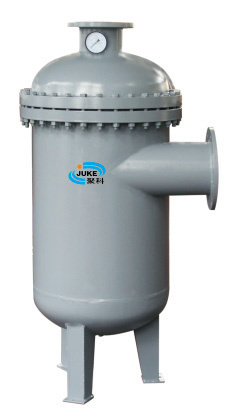

Principle of operation
It is a filter together with cyclone separation and agglomerative filter.It cuts off the oil and water in compressed air directly.It goes through cyclone separation, inertia filtering and gravity settlement to stop oil and water, dust in compressed air that more than 98% entering into the next pipeline.
|
Model |
Rated amount of |
Inlet and outlet caliber |
Size |
Weight |
|
gas processing |
DN(mm) |
(kg) |
|
(Nm3/min) |
|
Φ1 |
Φ2 |
H |
H1 |
H2 |
A |
B |
|
|
KYS_1.6/8 |
1.6 |
25 |
Φ159 |
Φ150 |
745 |
565 |
160 |
150 |
60 |
41 |
|
KYS_3/8 |
3 |
32 |
Φ159 |
Φ150 |
825 |
575 |
160 |
180 |
80 |
49 |
|
KYS_6/8 |
6 |
40 |
Φ219 |
Φ210 |
940 |
590 |
160 |
160 |
85 |
56 |
|
KYS_12/8 |
12 |
50 |
Φ219 |
Φ210 |
1005 |
660 |
160 |
160 |
85 |
68 |
|
KYS_20/8 |
20 |
65 |
Φ300 |
Φ300 |
1035 |
735 |
160 |
220 |
116 |
95 |
|
KYS_30/8 |
30 |
80 |
Φ350 |
Φ350 |
1160 |
750 |
180 |
240 |
125 |
130 |
|
KYS_40/8 |
40 |
100 |
Φ350 |
Φ350 |
1340 |
890 |
180 |
260 |
125 |
160 |
|
KYS_60/8 |
60 |
125 |
Φ500 |
Φ500 |
1450 |
930 |
210 |
340 |
170 |
245 |
|
KYS_80/8 |
80 |
150 |
Φ600 |
Φ600 |
1420 |
860 |
180 |
400 |
220 |
270 |
|
KYS_100/8 |
100 |
150 |
Φ600 |
Φ600 |
1420 |
860 |
180 |
400 |
220 |
295 |
|
KYS_150/8 |
150 |
200 |
Φ600 |
Φ600 |
1560 |
950 |
200 |
400 |
190 |
350 |
|
KYS_200/8 |
200 |
250 |
Φ650 |
Φ650 |
1600 |
950 |
200 |
410 |
210 |
390 |
|
KYS_300/8 |
300 |
300 |
Φ900 |
Φ900 |
1750 |
1150 |
180 |
570 |
310 |
480 |
