Welding generator
Powered by self-made reliable engine, it is good for field welding which needs high efficiency and quality, and it is number one silent welding generator.
Company Profile:
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator

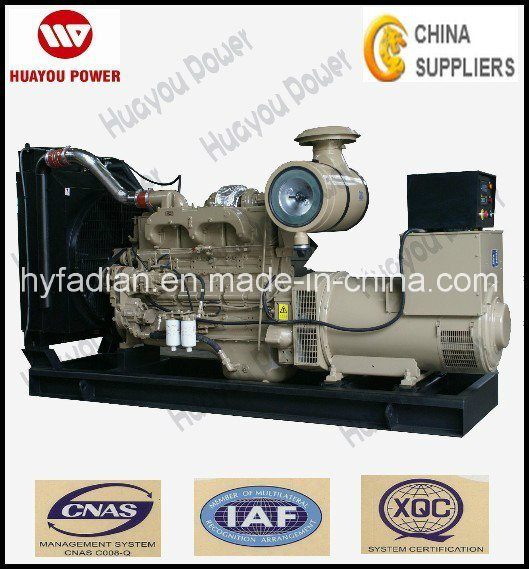

Scope of supply
Engine specification
1.20kw-1000kw CUMMINS engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
Alternator: Stamford
Option with: Marathon, Lorysomer,
A) three phase brushless generator, self-excited, 4-pole, single bearing
B) AVR self-regulated, voltage regulation rate ≤ ± 1%
C) IP23 protection grade
D) Class H insulation
E) Radio interference restraining accords with stipulation of VDE0875-N and ISO8528
F) Moistureproof, sand-proof, dustproof, salt-proof and vibration-proof
Control system:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
Pakage:
|
Model |
JMD180EW |
JMD180TW |
JMD220EW |
JMD220TW |
|
Rated frequency (Hz) |
50 60 |
50 60 |
50 60 |
50 60 |
|
Rated power(kW) |
2.8 2.8 |
2.8 2.8 |
2.8 2.8 |
2.8 2.8 |
|
Rated voltage(V) |
115/230 120/240 |
115/230 120/240 |
115/230 120/240 |
115/230 120/240 |
|
Rated current(A) |
24.3/12.2 23.3/11.7 |
24.3/12.2 23.3/11.7 |
24.3/12.2 23.3/11.7 |
24.3/12.2 23.3/11.7 |
|
Rated speed (r/min) |
3000 3600 |
3000 3600 |
3000 3600 |
3000 3600 |
|
Phase No. |
Single phase |
Single phase |
Single phase |
Single phase |
|
Power factor(cosφ) |
1 |
1 |
1 |
1 |
|
Rated welding voltage(V) |
65-70 |
65-70 |
65-70 |
65-70 |
|
Rated welding current(A) |
180 |
180 |
200 |
200 |
|
Welding voltage(V) |
25-30 |
25-30 |
25-35 |
25-35 |
|
Welding load continous ratio |
60% |
60% |
60% |
60% |
|
Welding current adjustment range(A) |
50-180 |
50-180 |
60-220 |
60-220 |
|
Electrode diameter(mm) |
1.6-3.2 |
1.6-3.2 |
1.6-4.0 |
1.6-4.0 |
|
Excitation mode |
Self-excitation and constant voltage(AVR) |
Self-excitation and constant voltage(AVR) |
Self-excitation and constant voltage(AVR) |
Self-excitation and constant voltage(AVR) |
|
Rectifying mode |
Three-phase rectifying bridge+IGBT(PWM) |
Three-phase rectifying bridge+IGBT(PWM) |
Three-phase rectifying bridge+IGBT(PWM) |
Three-phase rectifying bridge+IGBT(PWM) |
|
Connection mode |
Drive bearing, rigid connection |
Drive bearing, rigid connection |
Drive bearing, rigid connection |
Drive bearing, rigid connection |
|
Engine Model |
JM86FAGE |
JM86FAGE |
JM86FAGE |
JM86FAGE |
|
Engine Type |
Single cylinder, four-stroke, direct injection, air-cooled, diesel engine |
Single cylinder, four-stroke, direct injection, air-cooled, diesel engine |
Single cylinder, four-stroke, direct injection, air-cooled, diesel engine |
Single cylinder, four-stroke, direct injection, air-cooled, diesel engine |
|
Bore×stroke (mm) |
1-86×72 |
1-86×72 |
1-88×72 |
1-88×72 |
|
Displacement (ml) |
0.418 |
0.418 |
0.456 |
0.456 |
|
Compression ratio |
19:01 |
19:01 |
19:01 |
19:01 |
|
Rated power[Kw(r/min)] |
5.7 6.3 |
5.7 6.3 |
5.7 6.3 |
5.7 6.3 |
|
Lubrication system |
Pressure splashed |
Pressure splashed |
Pressure splashed |
Pressure splashed |
|
Lube oil brand |
CD grade or SAE10W-30,15W-40 |
CD grade or SAE10W-30,15W-40 |
CD grade or SAE10W-30,15W-40 |
CD grade or SAE10W-30,15W-40 |
|
Lub capacity(L) |
1.65 |
1.65 |
1.65 |
1.65 |
|
Starting system |
Recoil starter or 12V electric starter |
Recoil starter or 12V electric starter |
Recoil starter or 12V electric starter |
Recoil starter or 12V electric starter |
|
Battery capacity(V-Ah) |
12V-36Ah |
12V-36Ah |
12V-36Ah |
12V-36Ah |
|
Fuel type |
0#(summer), -10#(winter),-35#(chillness)diesel |
0#(summer), -10#(winter),-35#(chillness)diesel |
0#(summer), -10#(winter),-35#(chillness)diesel |
0#(summer), -10#(winter),-35#(chillness)diesel |
|
Fuel consumption(g/kW.hr) |
≤360 |
≤360 |
≤360 |
≤360 |
|
Overall dimension(L×W×H)(mm) |
750X500X690 |
750X500X690 |
750X500X690 |
750X500X690 |
|
Dry weight(kg) |
137 |
177 |
145 |
185 |
Wuxi Wan Di Power Engineering Group (formerly Wuxi Power Machine Factory) is a state-owned company mainly specializing in developing and manufacturing 6 cylinders, 12 cylinders series diesel engines, diesel generator sets and turbo-chargers etc. It was founded in 1946, one of the first manufacturers of genset in China, which has a good reputation in China till now
Our company named Wuxi Huayou Power Equipment Co., Ltd, a subsidiary corporation of WanDi Group, specializing in manufacturing and exporting various types diesel generator sets. It is one of the pilot enterprises assigned to invent and manufacture national military power supply, has a history of 40 years to supply military power. With an annual output up to 300, 000 KW, it is one of the most important Chinese diesel generator sets suppliers.
The products of our company mainly adopt diesel engines originally imported from Sweden such as Volvo; Joint venture engines that are American or British such as CUMMINS, PERKINS; Domestic engines Weichai or Wandi brand made by our own branch company to match British Stamford, Engga, Faraday alternators. We are OEM manufacturer of these above brands. All these different kinds of genset can be assembled to auto-start, low-noise or moveable sets according to customer' S require. They are widely applied in marine field, key projects, communication hubs, high-rise buildings and infrastructure construction projects.
For many years, we have provided large quantities of diesel generator sets to military equipments; Also provided reserve power supply to national foreign aid projects many times. We have already got great achievements in Southeast Asia, North America, Europe and many African countries such as Vietnam, Thailand, Singapore, Sudan, Egypt, Turkey, America, etc. Because of the Hi-technic, reliable quality nice contour, efficient service net all over the world. Our products are highly salable in both domestic and overseas markets.
Wan Di Series Diesel Generator Sets are enjoying a leading position in the same field nowadays. The generator sets of different types can certainly meet customers' Demands at different levels.
